Installation

Valve Spring, Retainer, and Seal

Installation

1. NOTE: Lubricate the valve guide with clean engine oil.

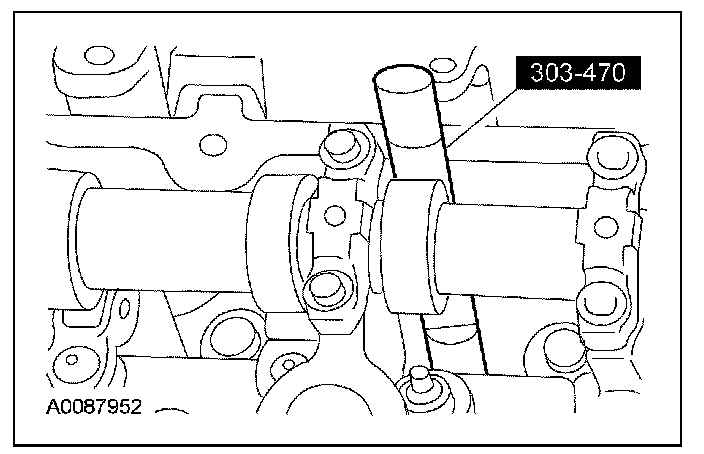

Using the special tool, install the new valve seal.





2. CAUTION: If the components are to be reinstalled, they must be installed in their original positions or damage to the engine may occur.

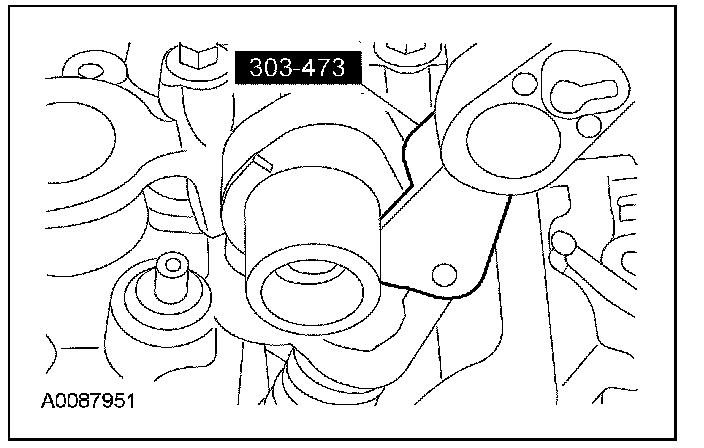

Using the special tool, install the valve spring, retainer and key.





3. Install the camshaft roller followers.
