Shield Removal and Installation, Rear

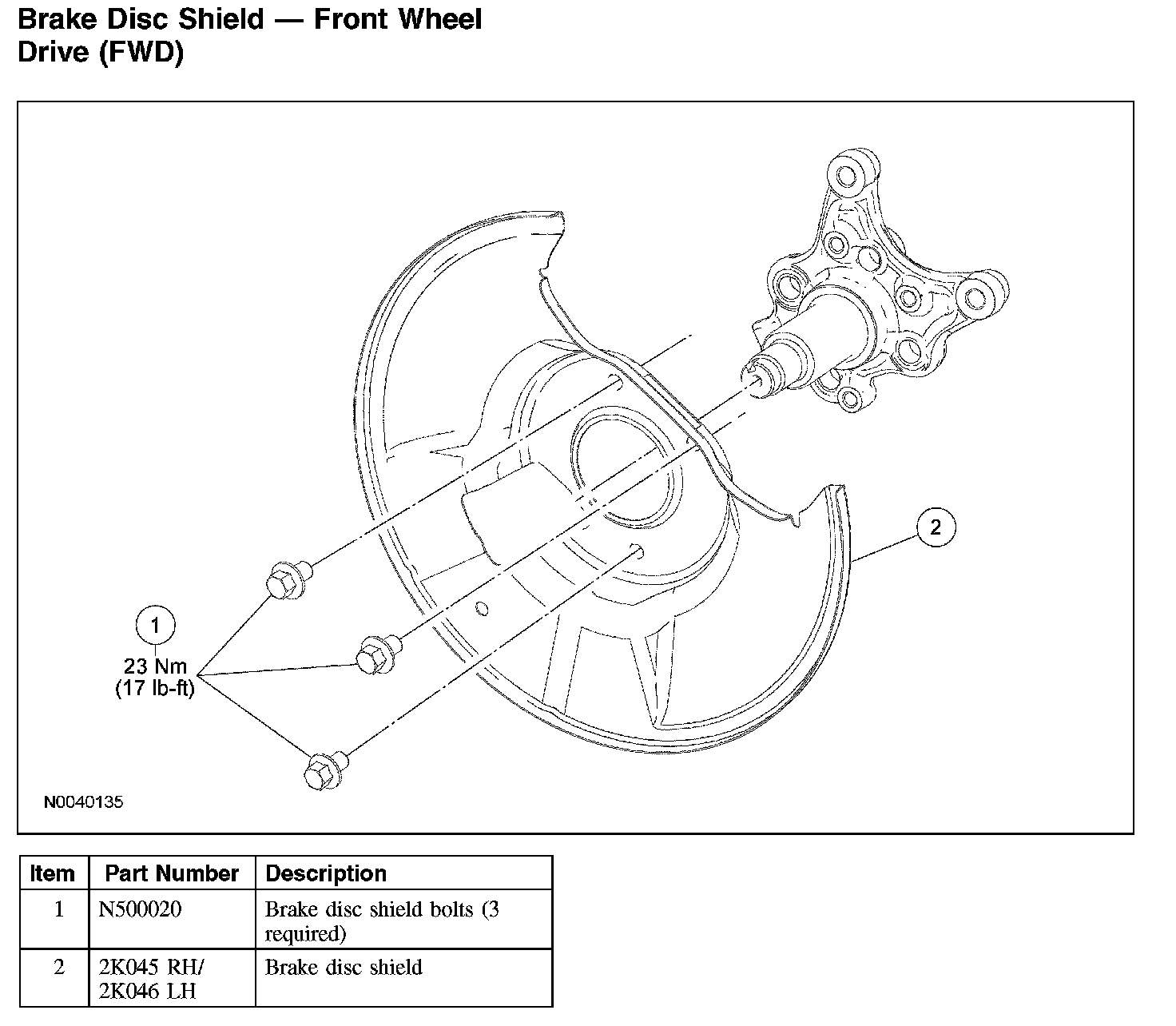

Brake Disc Shield - Front Wheel Drive (FWD)

Brake Disc Shield - All Wheel Drive (FWD):

Removal and Installation
1. Remove the wheel hub and bearing assembly.
2. Remove the 3 brake disc shield bolts and the brake disc shield.
^ To install, tighten to 23 Nm (17 lb-ft).
3. To install, reverse the removal procedure.
