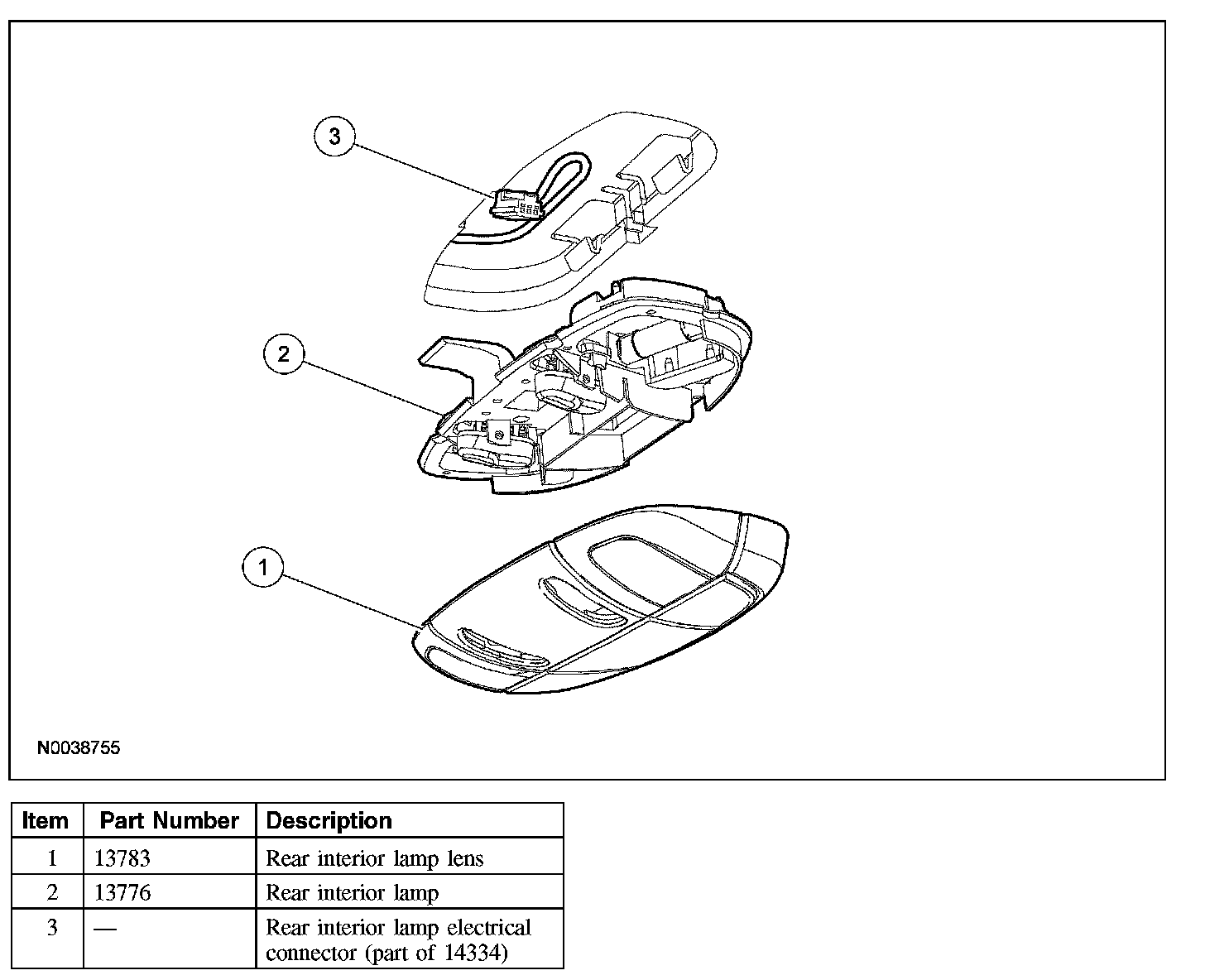

Interior Lamp - Rear

INTERIOR LAMP - REAR







Removal and Installation

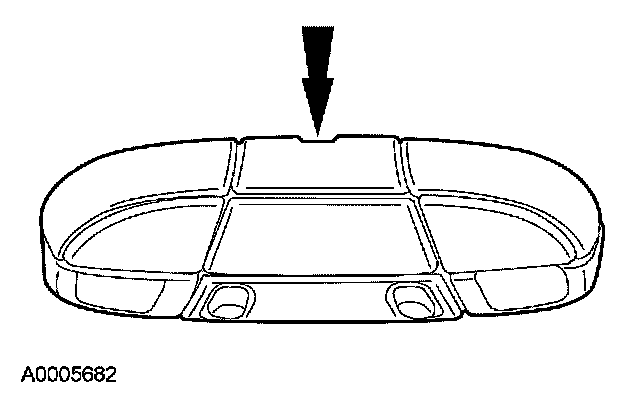

1. Remove the rear interior lamp lens.

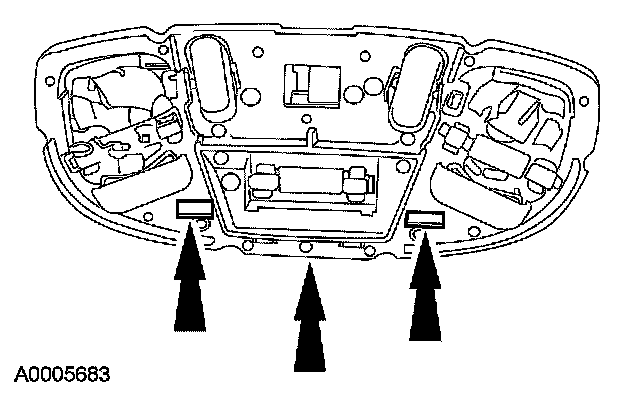

2. Release the 2 retaining clips (through the access holes) and remove the rear interior lamp assembly.
- Disconnect the electrical connector.







3. To install, reverse the removal procedure.
