Hood Latch: Service and Repair

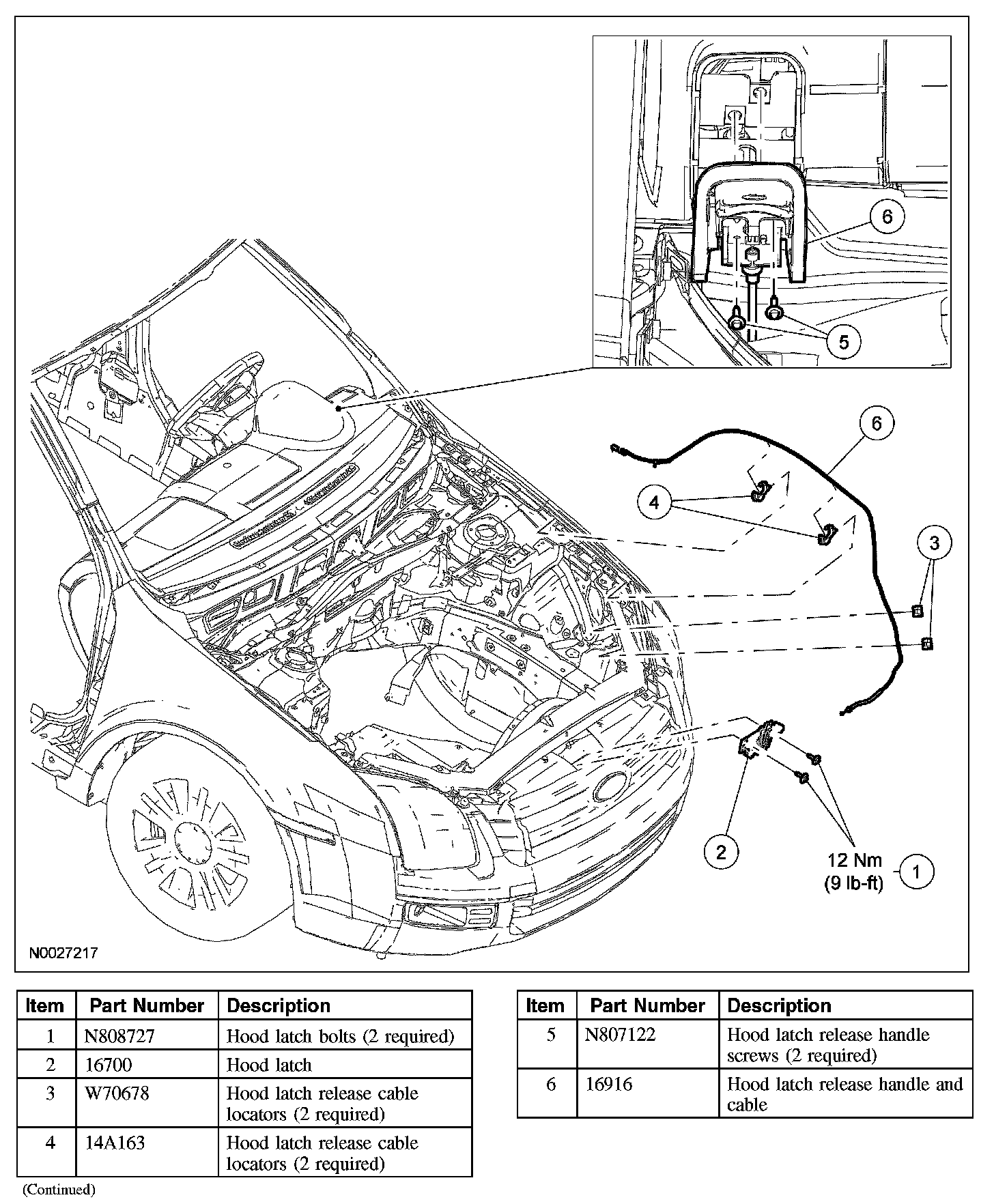

HOOD LATCHExploded View
Removal and Installation
1. NOTE: Mark the hood latch position prior to removal of the hood latch bolts.
Remove the 2 hood latch bolts and position the hood latch aside.
- To install, tighten to 12 Nm (9 lb-ft).
2. Disconnect the hood latch release cable and remove the hood latch.
3. NOTE: When the hood latch is installed, the latch adjustment must be checked to make sure the latch is installed and aligned correctly.
To install, reverse the removal procedure.
- Lubricate the hood latch after installation.
