Wiper Motor: Service and Repair

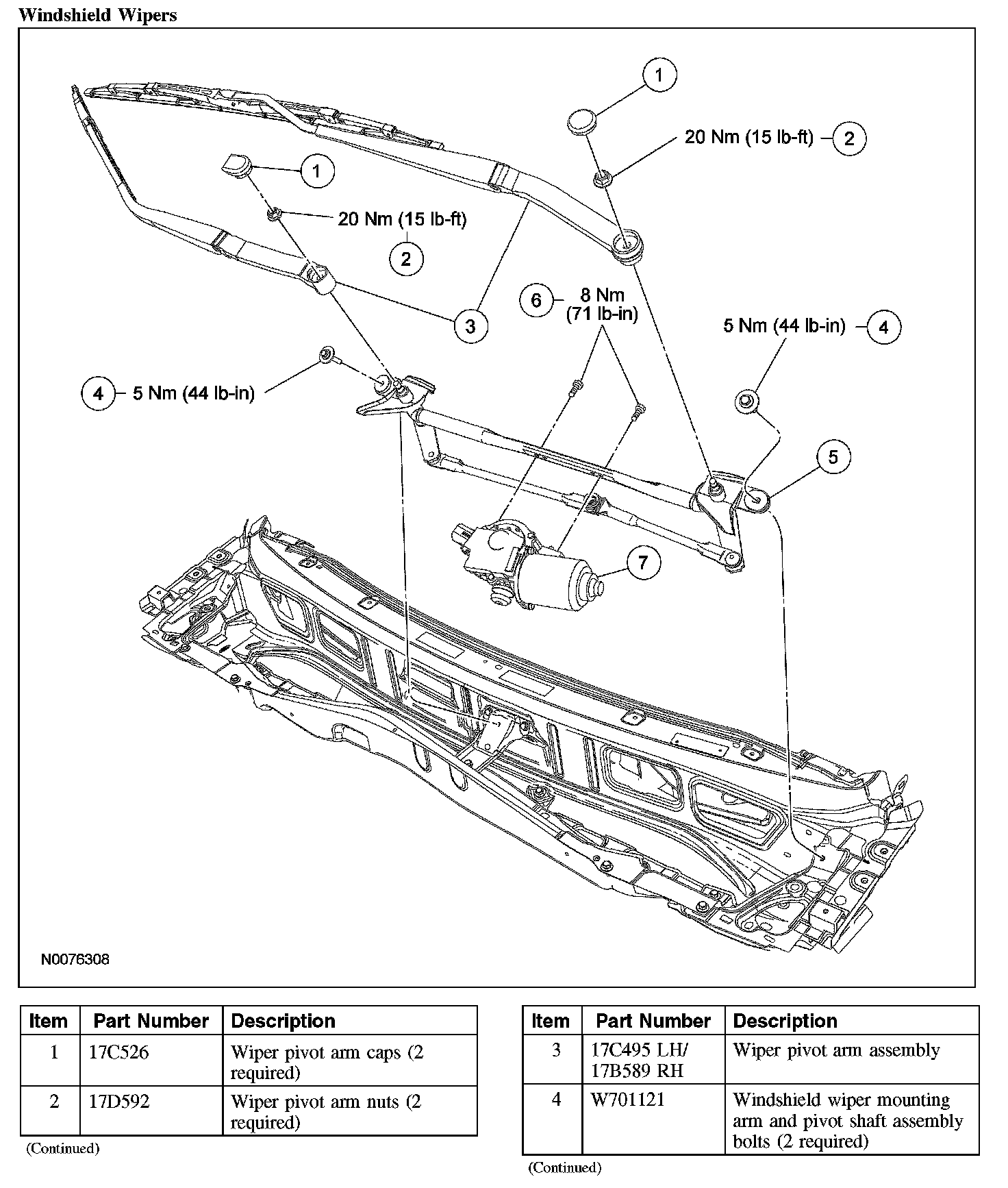

WIPER MOTORExploded View
Windshield Wipers (Part 1):

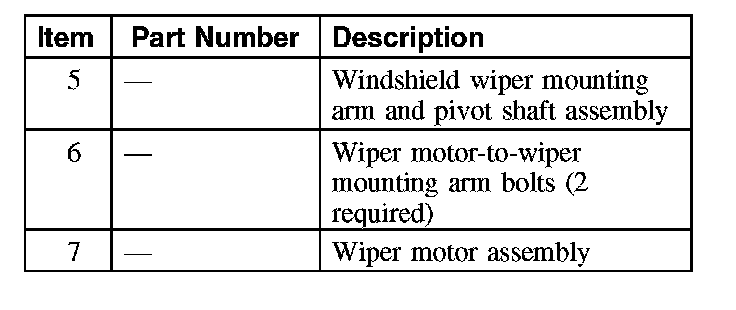

Windshield Wipers (Part 2):
Removal and Installation
1. Remove the wiper pivot arms.
2. Remove the windshield wiper mounting arm and pivot shaft.
3. Remove the 2 drive rods from the motor crank arm ball joint.
4. Remove the wiper motor-to-wiper mounting arm bolts and the wiper motor.
- To install, tighten to 8 Nm (71 lb-in).
5. To install, reverse the removal procedure.
