Wiper Pivot Arm

WIPER PIVOT ARM

Exploded View

Windshield Wipers (Part 1):

Windshield Wipers (Part 2):

Washer Pump And Reservoir:

Removal and Installation
1. Remove the wiper pivot arm cap.

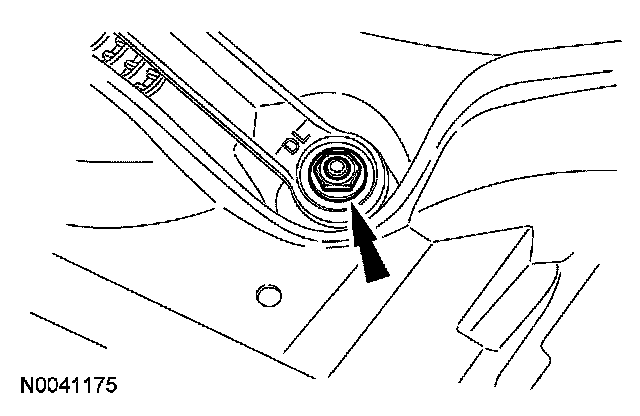

2. Remove the wiper pivot arm retaining nut and the wiper pivot arm.
- To install, tighten to 20 Nm (15 lb-ft).







3. To install, reverse the removal procedure.
