Wiper Mounting Arm and Pivot Shaft

WIPER MOUNTING ARM AND PIVOT SHAFT

Exploded View

Windshield Wipers (Part 1):

Windshield Wipers (Part 2):

Washer Pump And Reservoir:

Removal and Installation
1. Remove the upper cowl panel grille.
2. Disconnect the windshield wiper motor electrical connector.

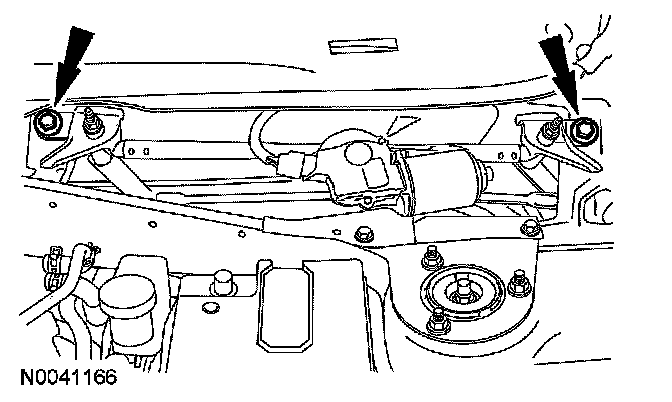

3. Remove the 2 windshield wiper mounting arm and pivot shaft assembly bolts and the windshield wiper mounting arm and pivot shaft assembly.
- To install, tighten to 5 Nm (44 lb-in).







4. To install, reverse the removal procedure.
