Test E: The Washer Pump Is Inoperative - Continuously On

PINPOINT TEST E: THE WASHER PUMP IS INOPERATIVE - CONTINUOUSLY ON

Normal Operation
The windshield washer pump is grounded at all times through circuit GD123 (BK/GY). When WASH mode is selected, the smart junction box (SJB) receives input from the multi-function switch through circuit CRW07 (GY/BN). The SJB then activates the washer pump relay (integral to SJB) which supplies voltage to the washer pump through circuit CRW14 (BU/WH).

- DTC B2184 Front Wiper Select Switch "W" Short to Ground - Switch input shorted to ground.

This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- Multi-function switch
- SJB module

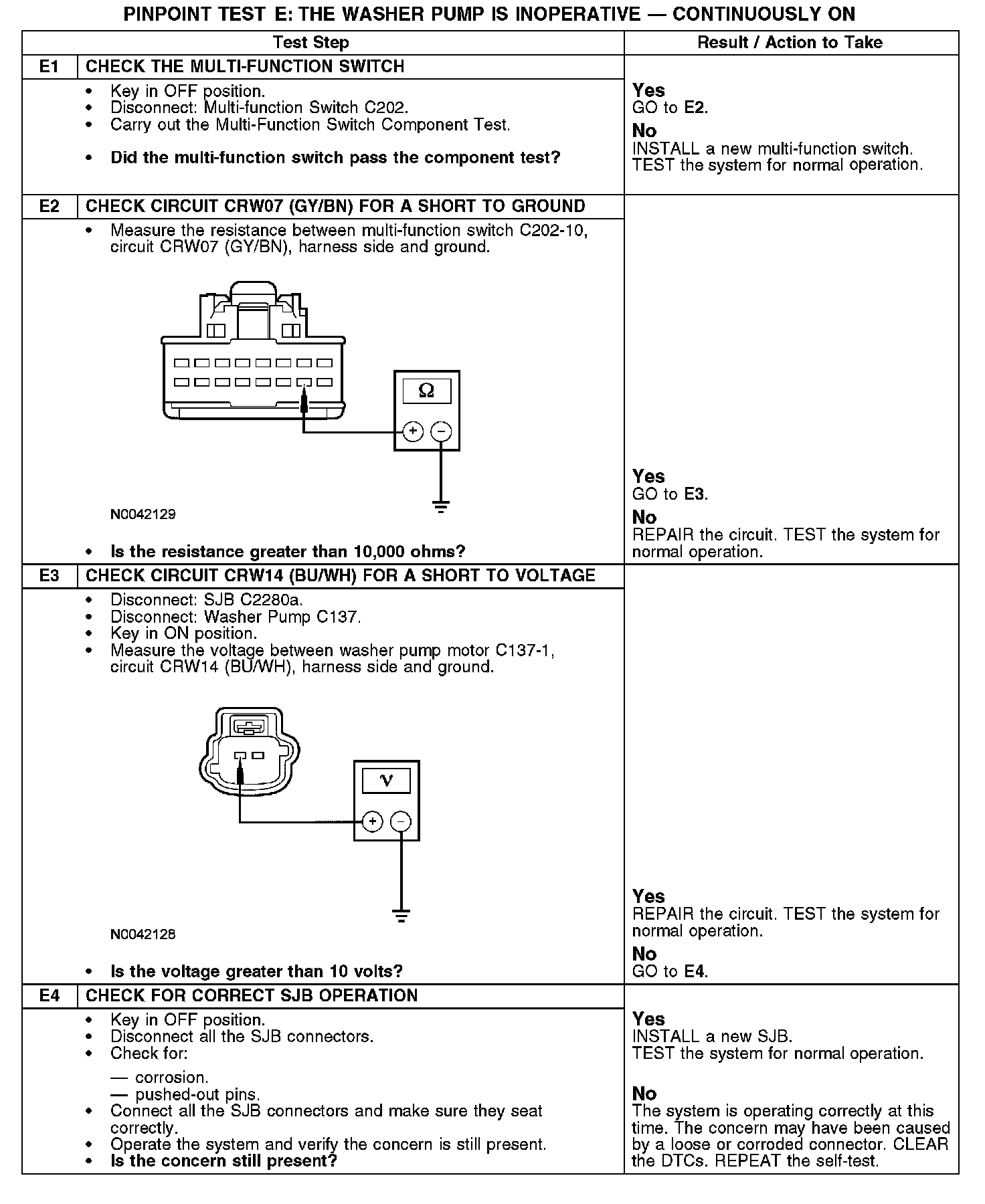

E1-E4:
