Rear Door Window Regulator: Service and Repair

WINDOW REGULATOR AND MOTOR - REAR DOOR

Exploded View

Part 1:

Part 2:

Removal and Installation
1. Remove the rear door trim panel.

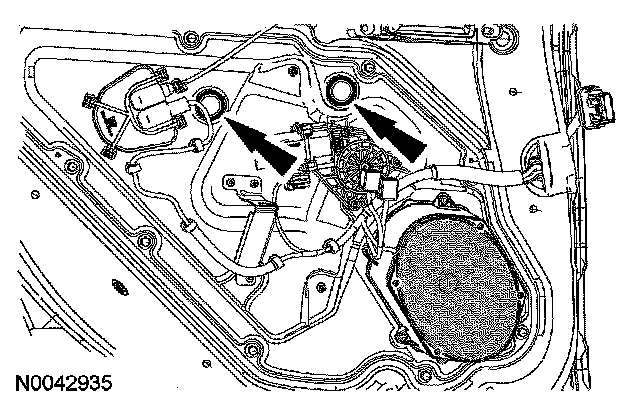

2. Remove the access hole plugs.







3. NOTE: If the door window regulator motor is inoperative, remove it.

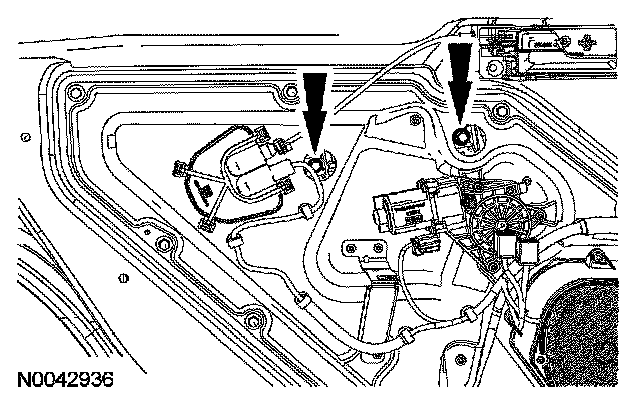

Lower the window until the glass clamp bolts are accessible through the access hole plugs, then loosen the glass clamp bolts.
- To install, tighten to 6 Nm (53 lb-in).







4. Tape the window in position, then lower the window regulator downward until it reaches the stops at the bottom of the regulator tracks.
5. Remove the door speaker.

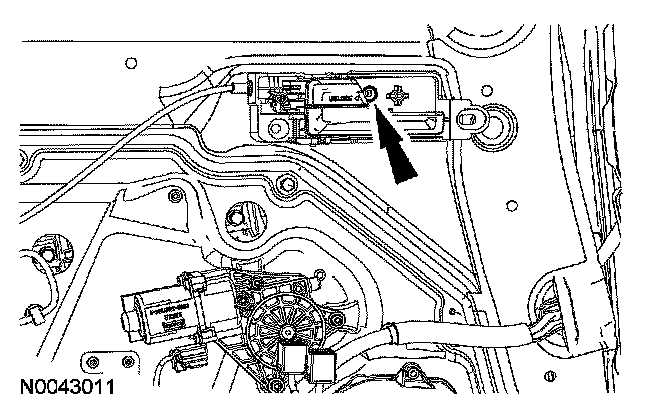

6. Remove the interior door handle screw and position the door handle aside.

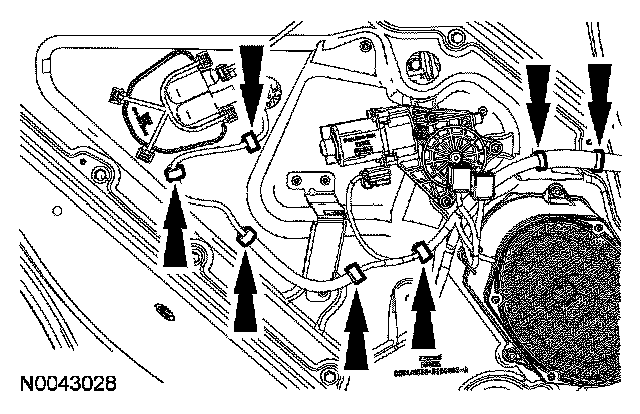

7. Disconnect the wiring harness retainers.

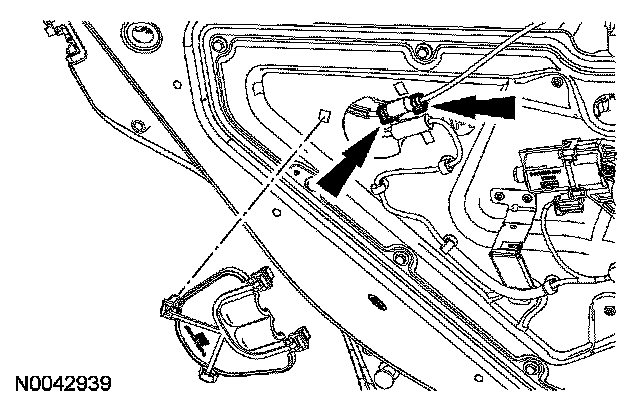

8. Remove the wiring harness cover plate and disconnect the 2 door latch cable retainers.

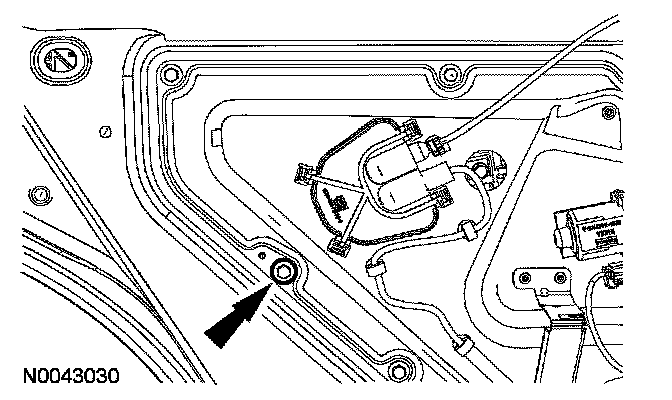

9. Remove the 10 door module bolts.
- To install, tighten to 11 Nm (8 lb-ft).

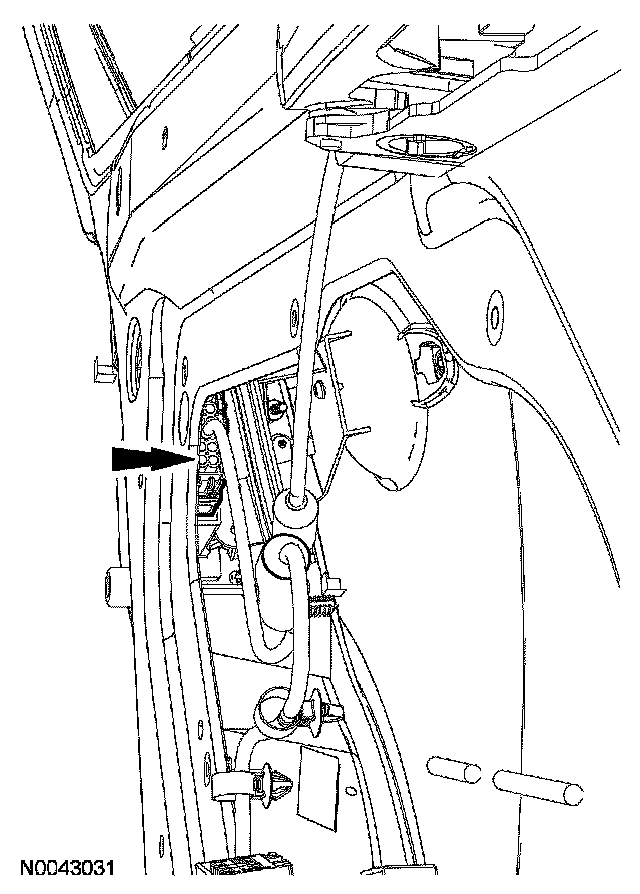

10. Disconnect the door latch electrical connector.







11. Remove the rear door module assembly. If installing a new door module, transfer parts as necessary.
12. To install, reverse the removal procedure.
