Window Glass - Rear Door, Fixed

WINDOW GLASS - REAR DOOR, FIXED

Exploded View

Part 1:

Part 2:

Removal and Installation
1. Remove the rear door module.

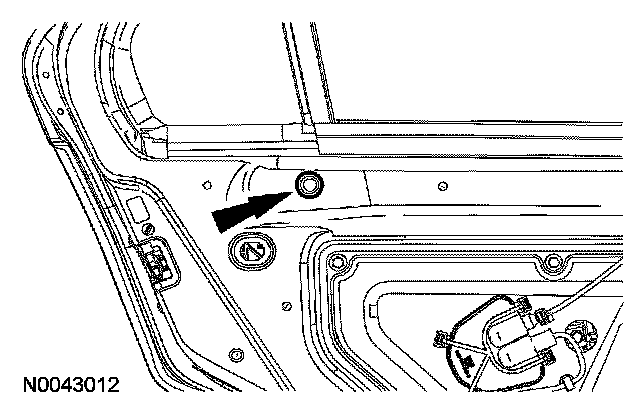

2. Remove the access hole plug.

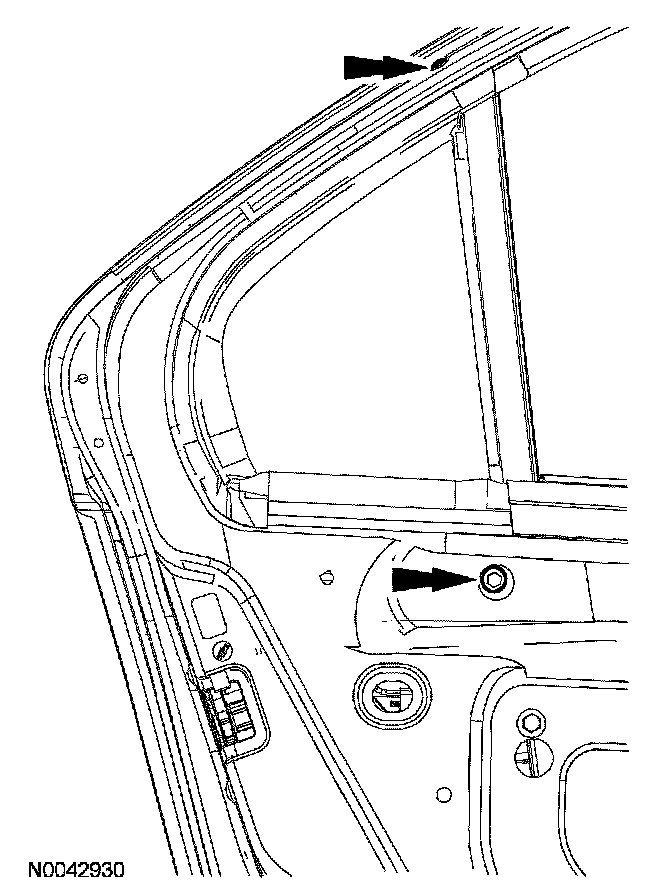

3. Remove the bolt and the screw.

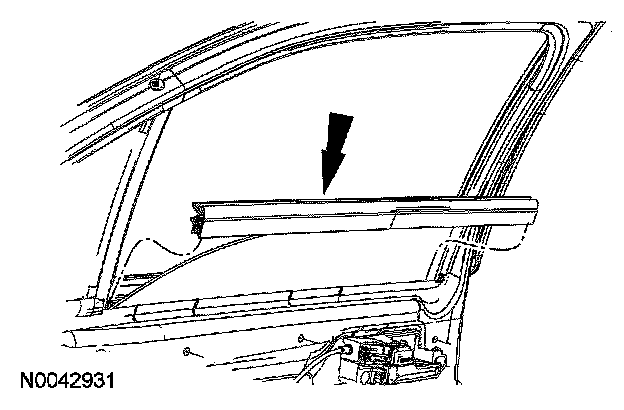

4. Remove the inner beltline weatherstrip.

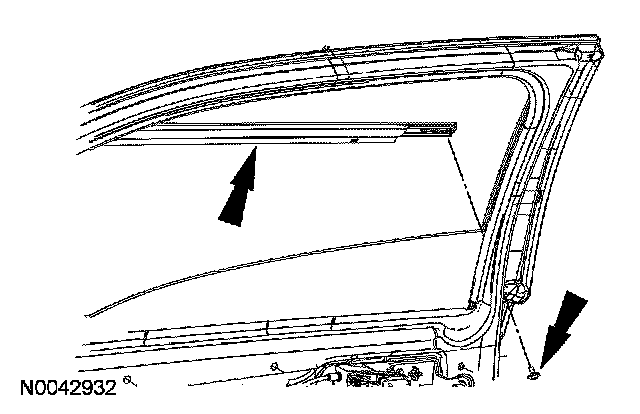

5. Remove the screw and the outer beltline weatherstrip.

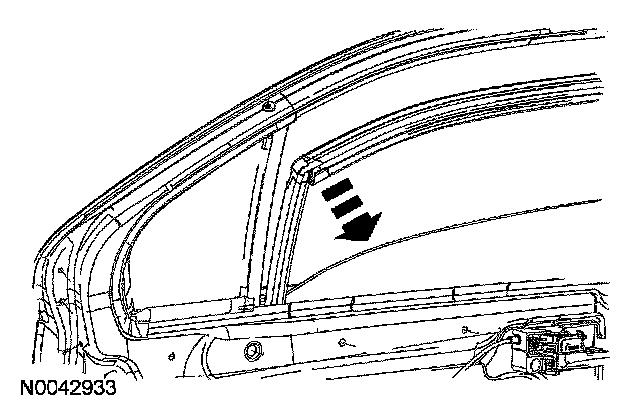

6. Position the rear window glass run aside.







7. Remove the rear quarter window glass.







8. To install, reverse the removal procedure.
