Installation

Power Transfer Unit (PTU)

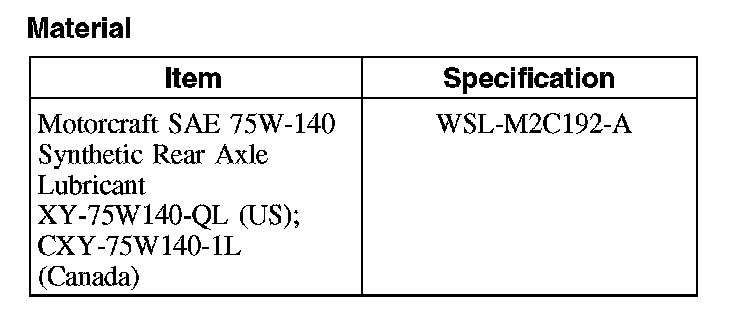

Material:

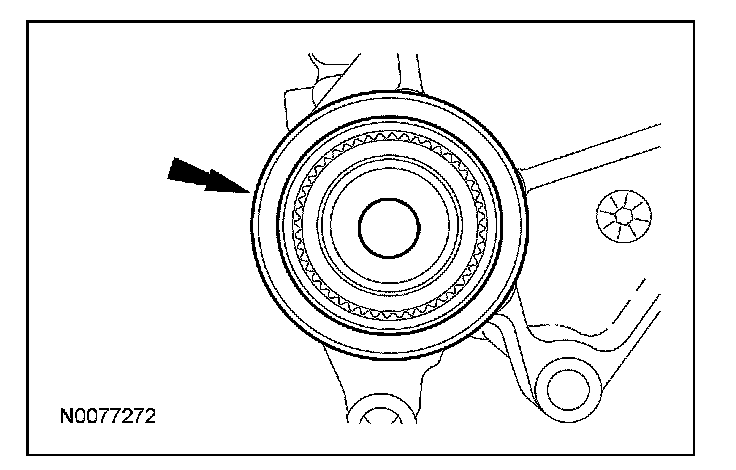

1. NOTE: A new compression seal must be installed whenever the power transfer unit (PTU) is removed from the vehicle.

Using a suitable tool, install the new compression seal.





NOTE: A new power transfer unit (PTU) intermediate shaft seal and deflector must be installed whenever the intermediate shaft or PTU is removed from the vehicle.

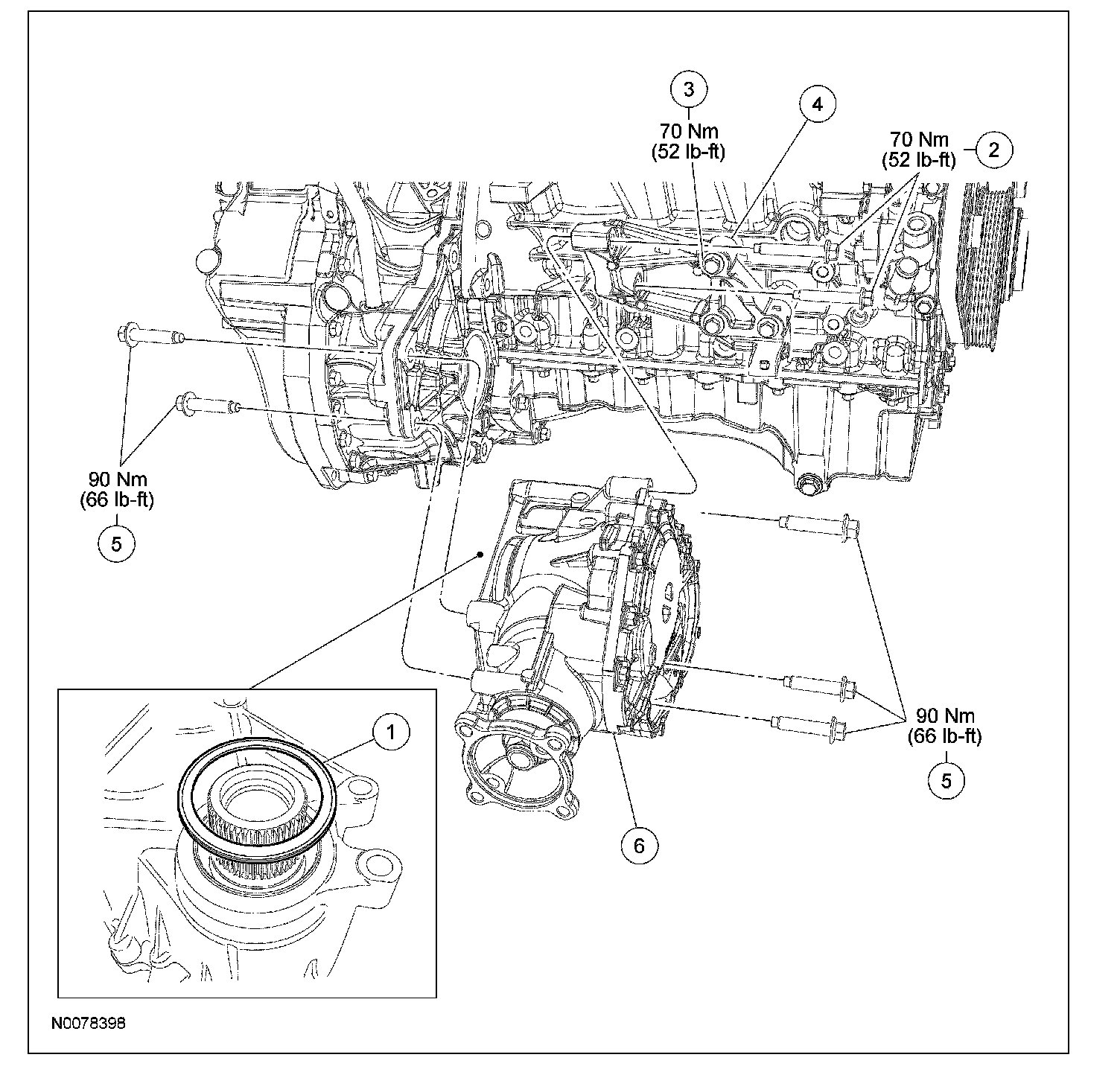

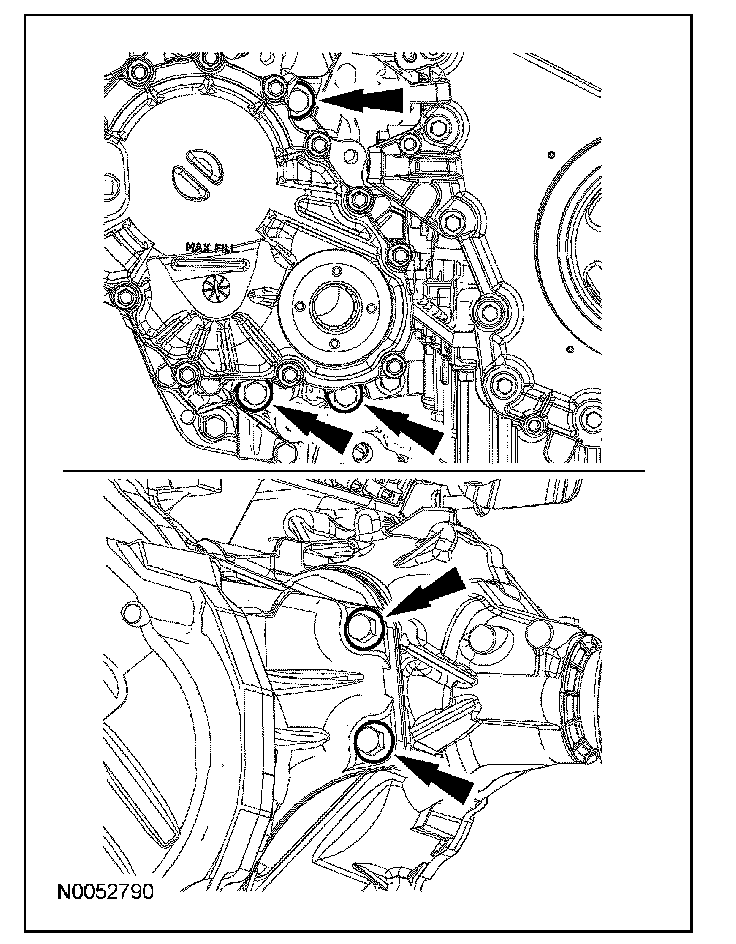

2. Position the PTU to the transaxle. Install the 5 PTU-to-transaxle bolts.
^ Tighten to 90 Nm (66 lb-ft).

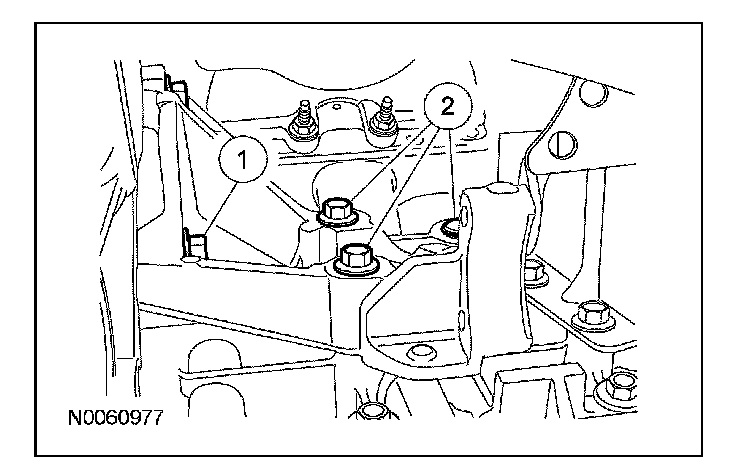

3. Position the PTU support bracket into place and install the 5 PTU support bracket bolts.
1 Tighten the bolts to the transaxle to 70 Nm (52 lb-ft).
2 Tighten the bolts to the engine to 70 Nm (52 lb-ft).





4. Install the driveshaft.
5. Install the RH catalytic converter.
6. Fill the PTU, if necessary. For additional information, refer to Power Transfer Unit (PTU) Draining and Filling.
