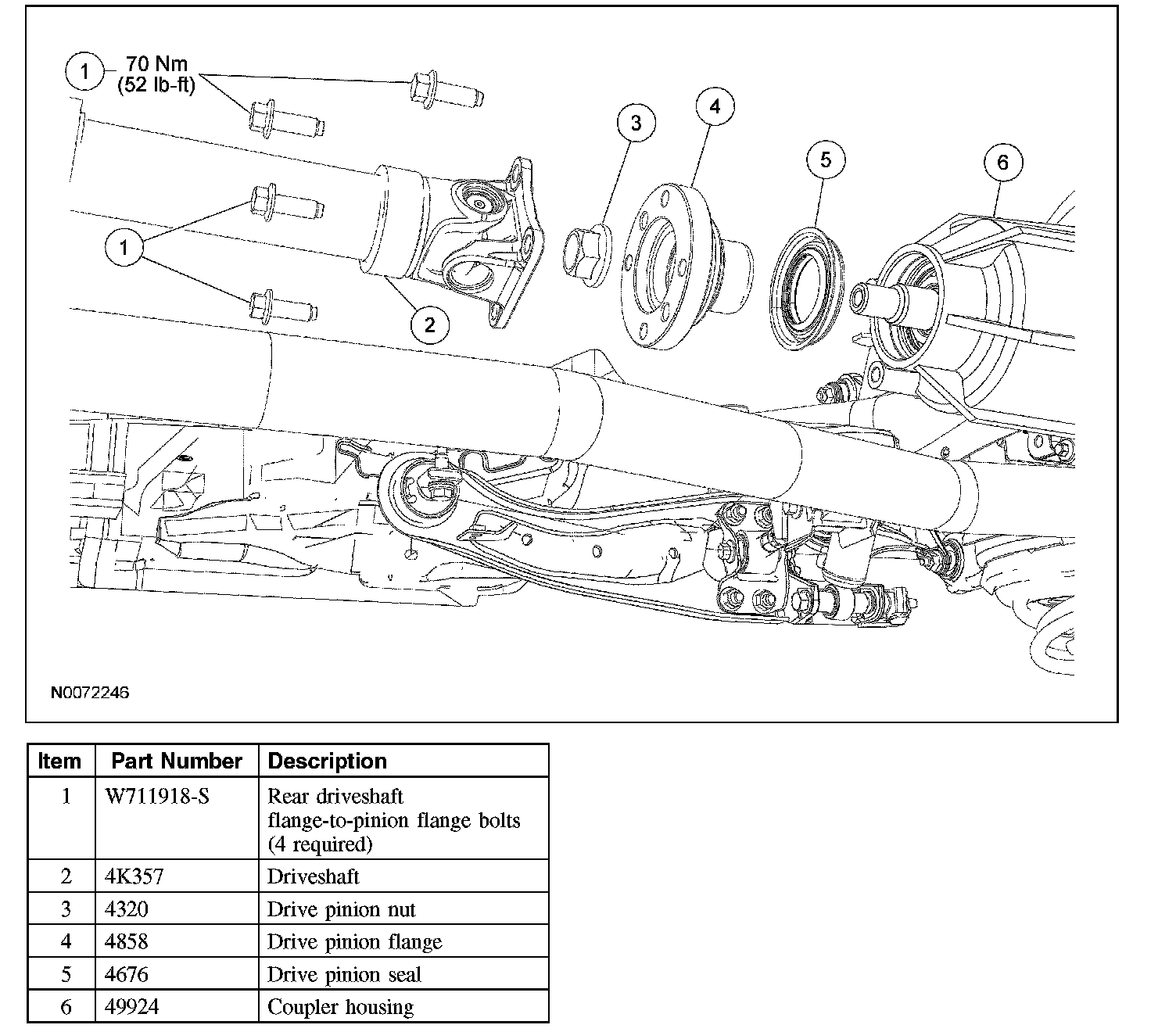

Pinion Flange: Service and Repair

Drive Pinion Seal

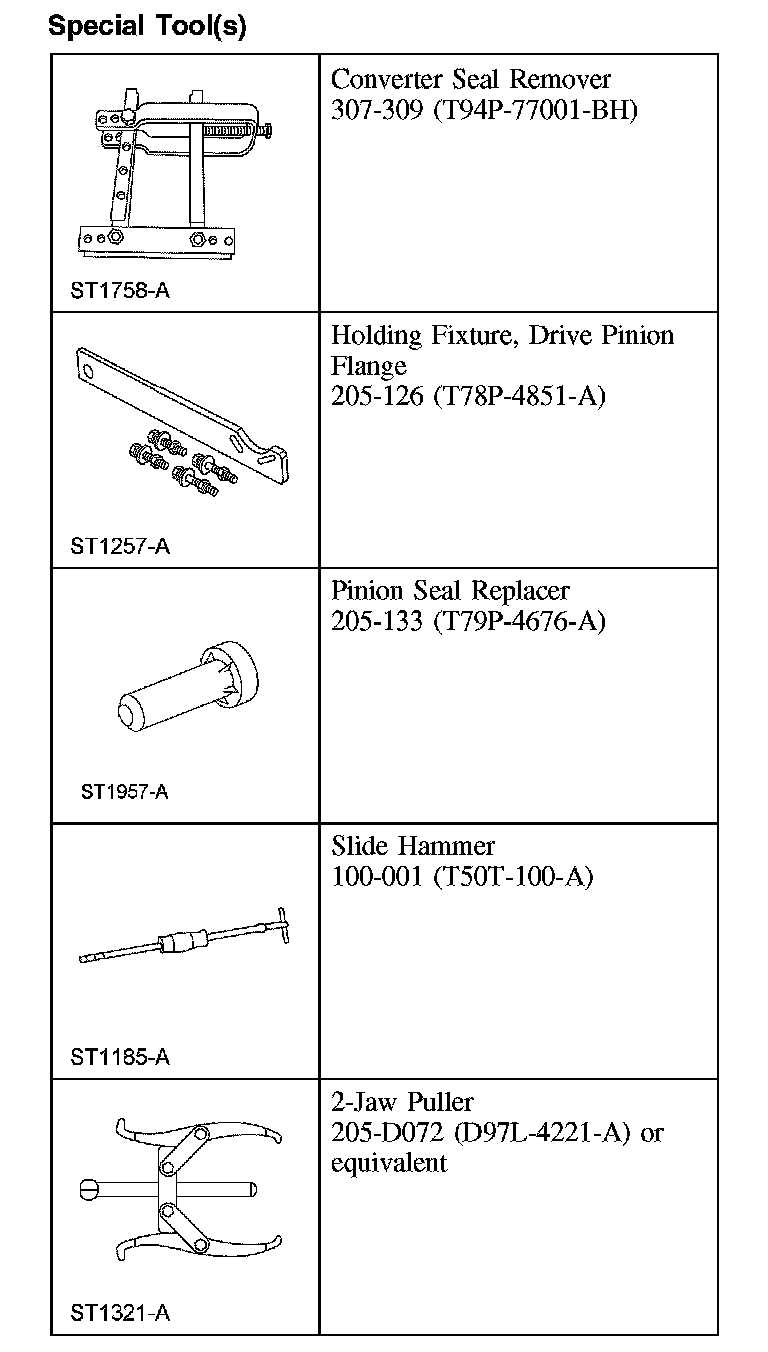

Special Tool(s):

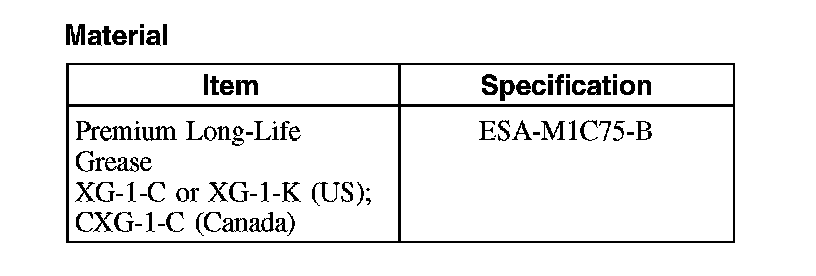

Material:

Removal
1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Maintenance/Service and Repair.
2. Remove and discard the 4 rear driveshaft U-joint flange bolts.
^ Support the driveshaft.

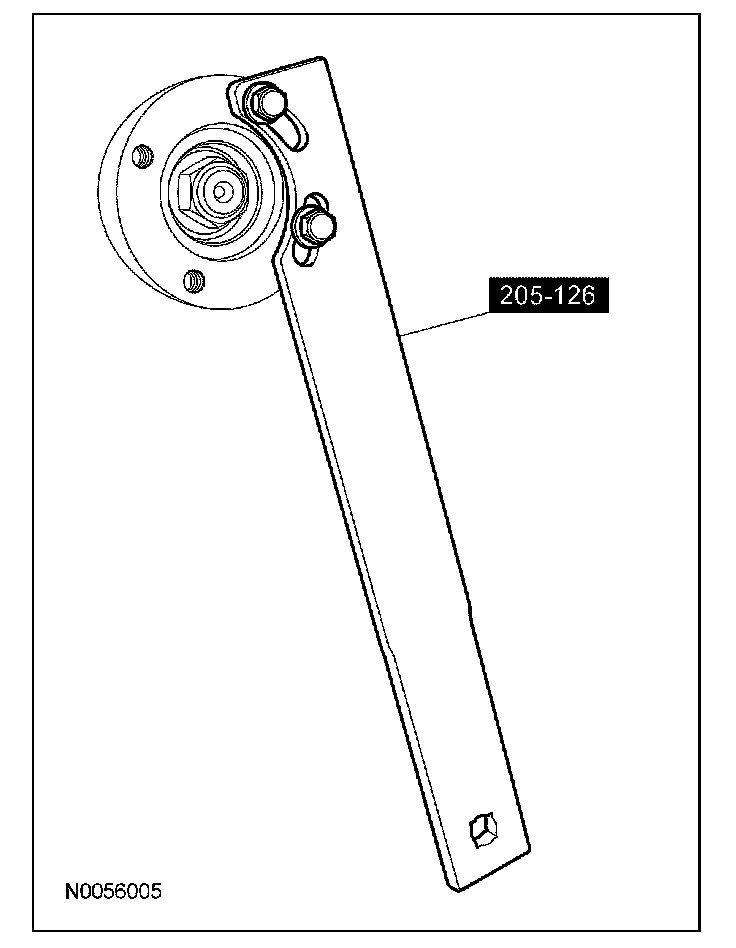

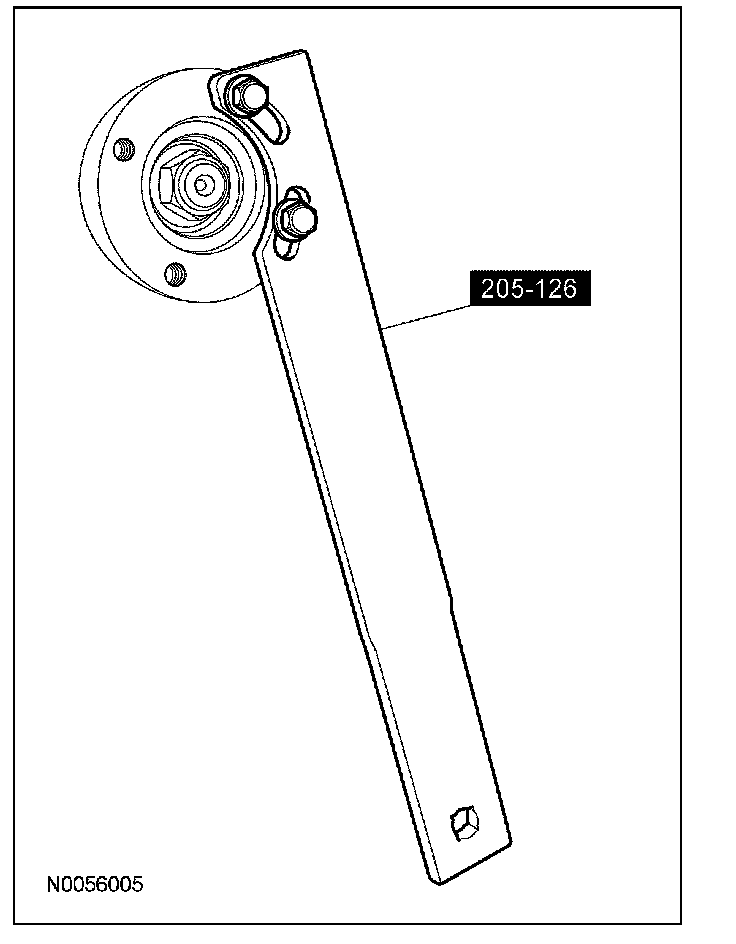

3. Using the special tool, hold the pinion flange and remove and discard the nut.

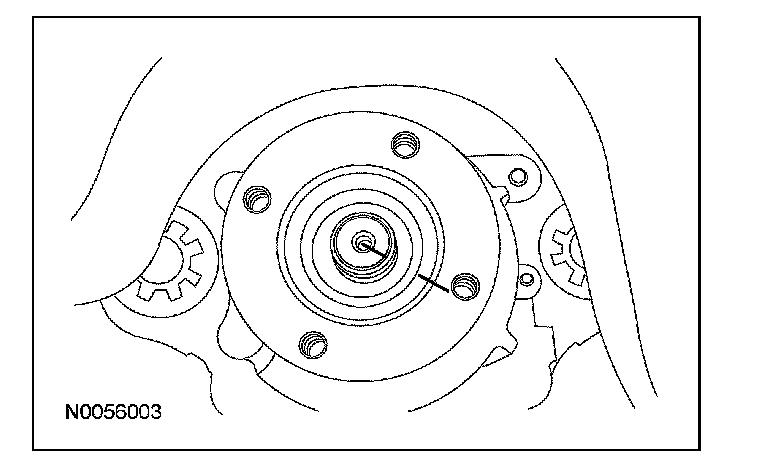

4. Index-mark the location of the pinion to the yoke.

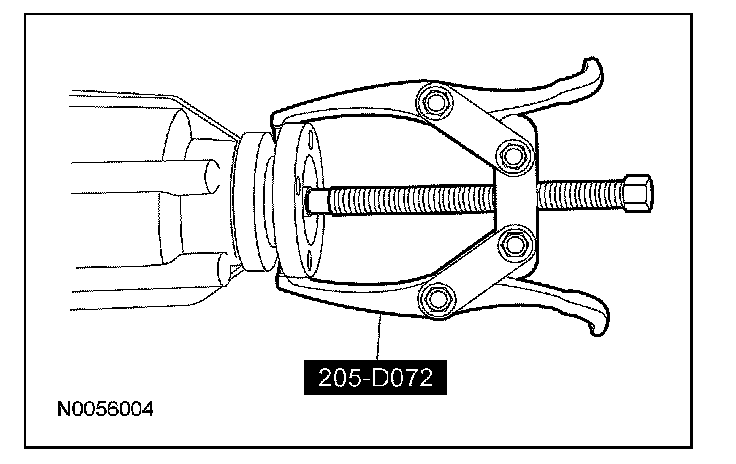

5. Using the special tool, remove the pinion flange.

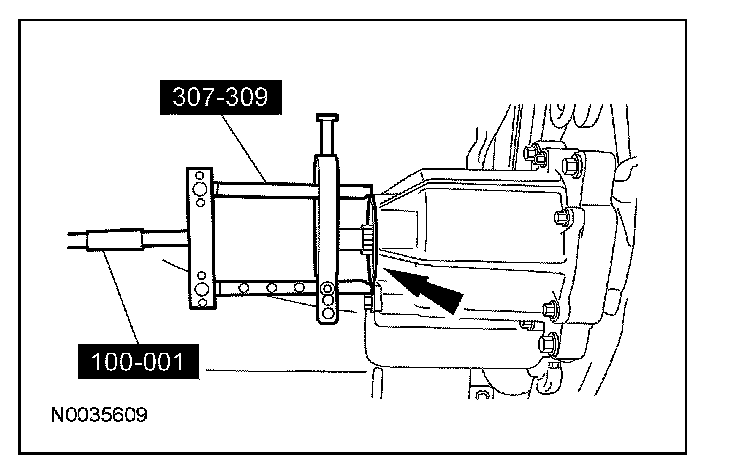

6. Using the special tools, remove and discard the drive pinion seal.





Installation

1. NOTE: Make sure that the mating surface is clean before installing the new seal.

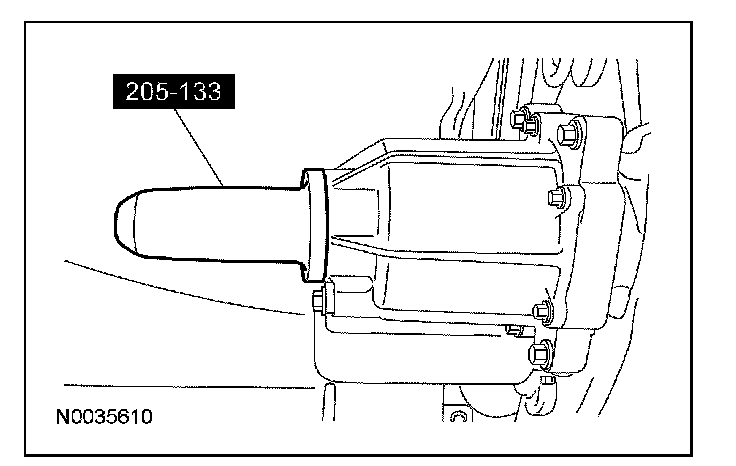

Using the special tool, install the drive pinion seal.





2. NOTE: Lubricate the pinion flange splines with grease.

Line up the index marks and position the pinion flange.





3. Using the special tool, install the new pinion nut.
^ Tighten to 244 Nm (180 lb-ft).

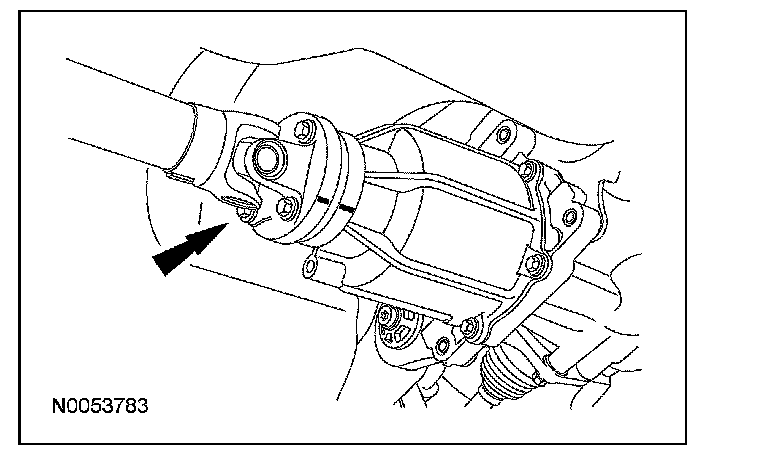

4. Line up the index marks and install the rear driveshaft U-joint flange with 4 new bolts.
^ Tighten to 70 Nm (52 lb-ft).
