Clutch Master Cylinder

Clutch Master Cylinder

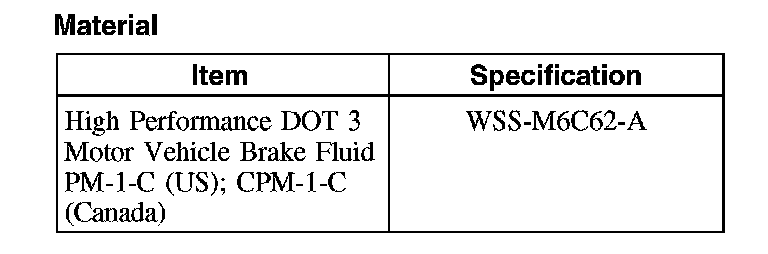

Material:

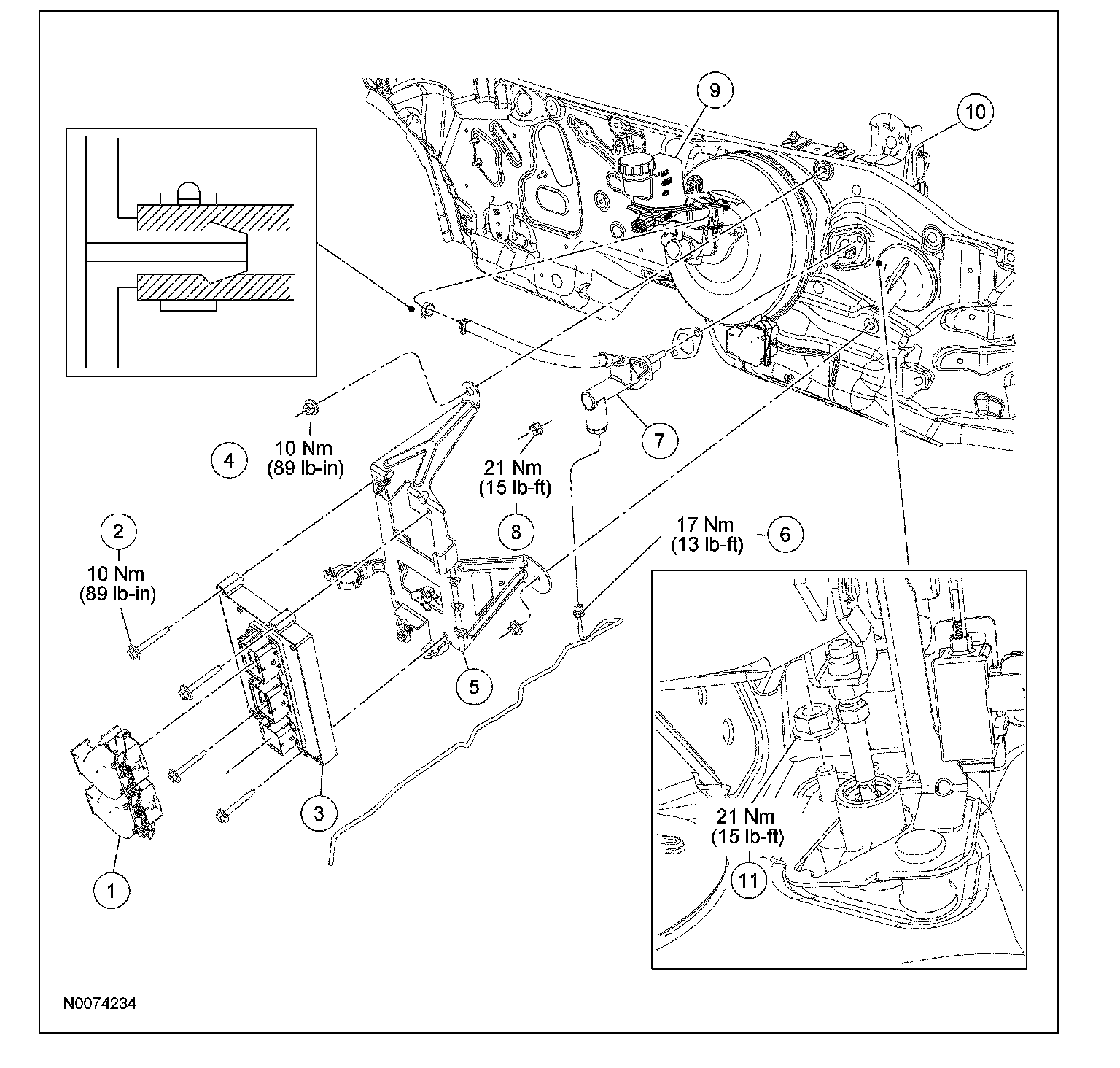

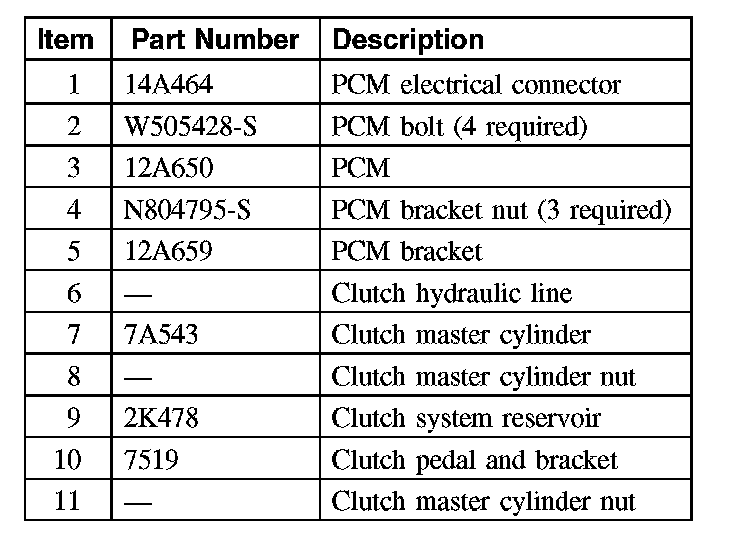

Removal and Installation

WARNING: Carefully read cautionary information on product label. For EMERGENCY MEDICAL INFORMATION seek medical advice. In the USA or Canada on Ford/Motorcraft products call: 1-800-959-3673. For additional information, consult the product Material Safety Data Sheet (MSDS) if available. Failure to follow these instructions may result in serious personal injury.

WARNING: Do not use any fluid other than clean brake fluid meeting manufacturer's specification. Additionally, do not use brake fluid that has been previously drained. Following these instructions will help prevent system contamination, brake component damage and the risk of serious personal injury.

WARNING: Do not allow the brake master cylinder to run dry during the bleeding operation. Master cylinder may be damaged if operated without fluid, resulting in degraded braking performance. Failure to follow this instruction may result in serious personal injury.

CAUTION: Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, wash it immediately with water.

NOTE: When any part of the hydraulic system has been disconnected for repair or new installation, air may get into the system and cause spongy brake pedal action. This requires bleeding of the hydraulic system after it has been correctly connected. The hydraulic system can be bled manually or with pressure bleeding equipment.

1. Working under the instrument panel, remove the clutch master cylinder nut.
^ To install, tighten to 21 Nm (15 lb-ft).

2. Using a suitable suction tool, remove the brake fluid to just below the clutch reservoir hose.





3. Remove the battery tray.

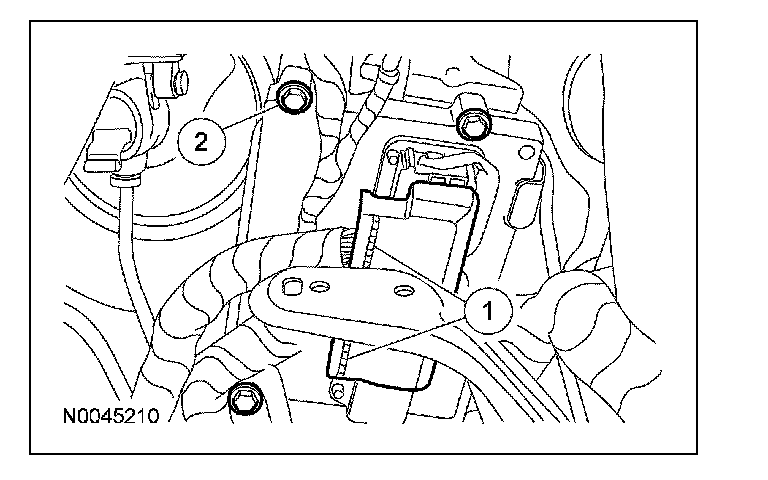

4. Remove PCM.
1 Disconnect the electrical connectors.
2 Remove the 3 PCM bolts.
^ To install, tighten to 10 Nm (89 lb-in).

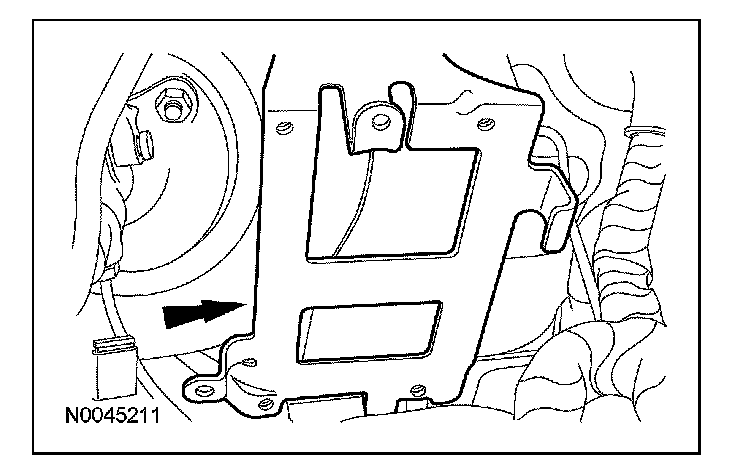

5. Remove 3 PCM bracket nuts and the PCM bracket.
^ To install, tighten to 10 Nm (89 lb-in).

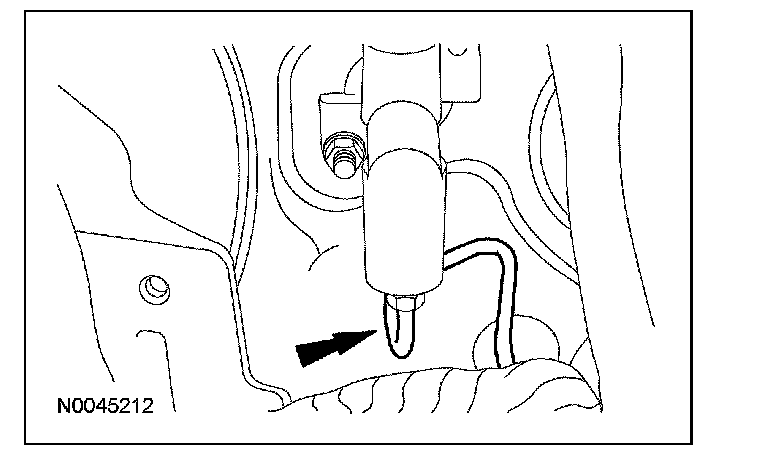

6. Disconnect the clutch master cylinder-to-clutch slave cylinder hydraulic tube.
^ To install, tighten to 17 Nm (13 lb-ft).

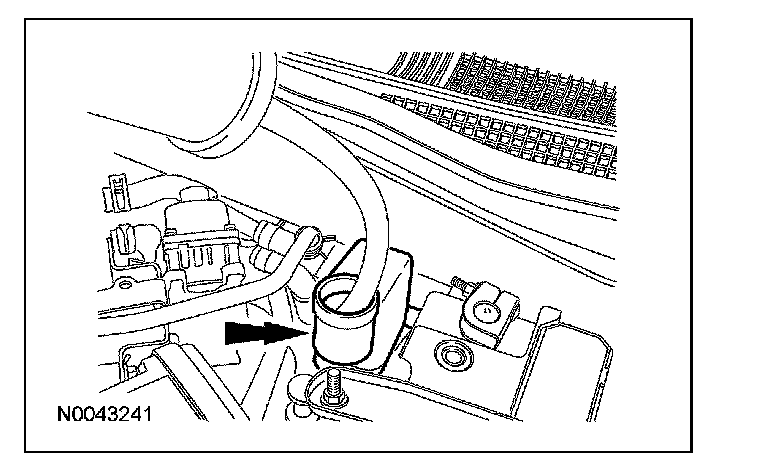

7. Disconnect the clutch master cylinder-to-clutch reservoir hose.
8. Remove the clutch master cylinder nut.
^ To install, tighten to 21 Nm (15 lb-ft).

9. Remove the clutch master cylinder assembly.
10. To install, reverse the removal procedure.
11. Bleed the clutch hydraulic system.
