Test H: Transaxle Fluid Pressure Switch

PINPOINT TEST H: TRANSAXLE FLUID PRESSURE SWITCH

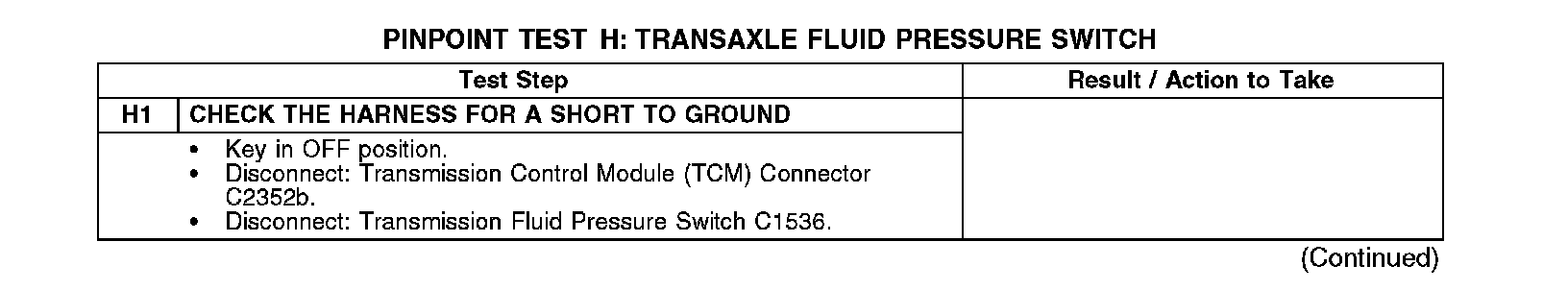

H1:

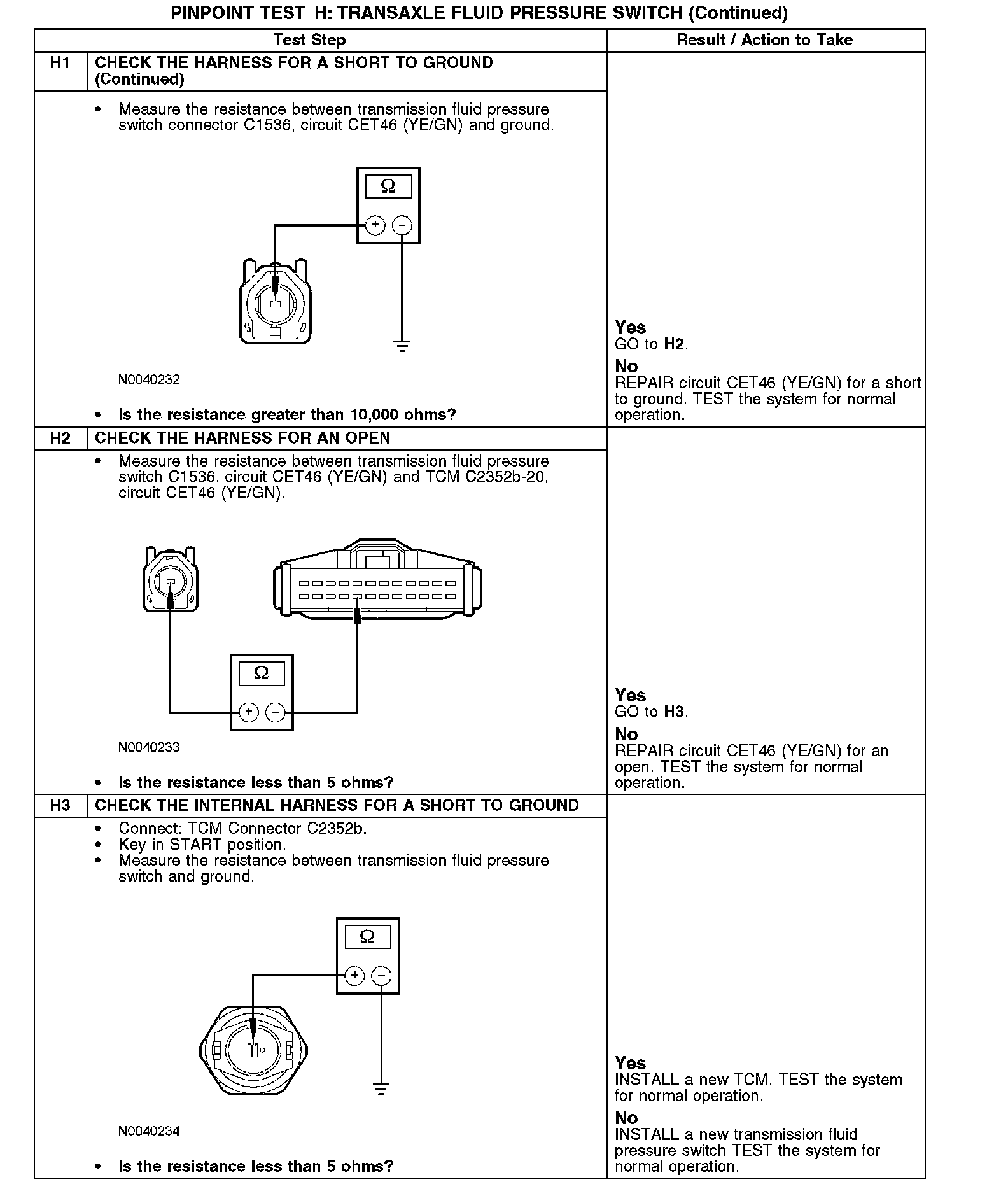

H1 (Continued)-H3:
