Test F: Intermediate Shaft Speed Sensor and Output Shaft Speed (OSS)

PINPOINT TEST F: INTERMEDIATE SHAFT SPEED SENSOR AND OUTPUT SHAFT SPEED (OSS) SENSOR

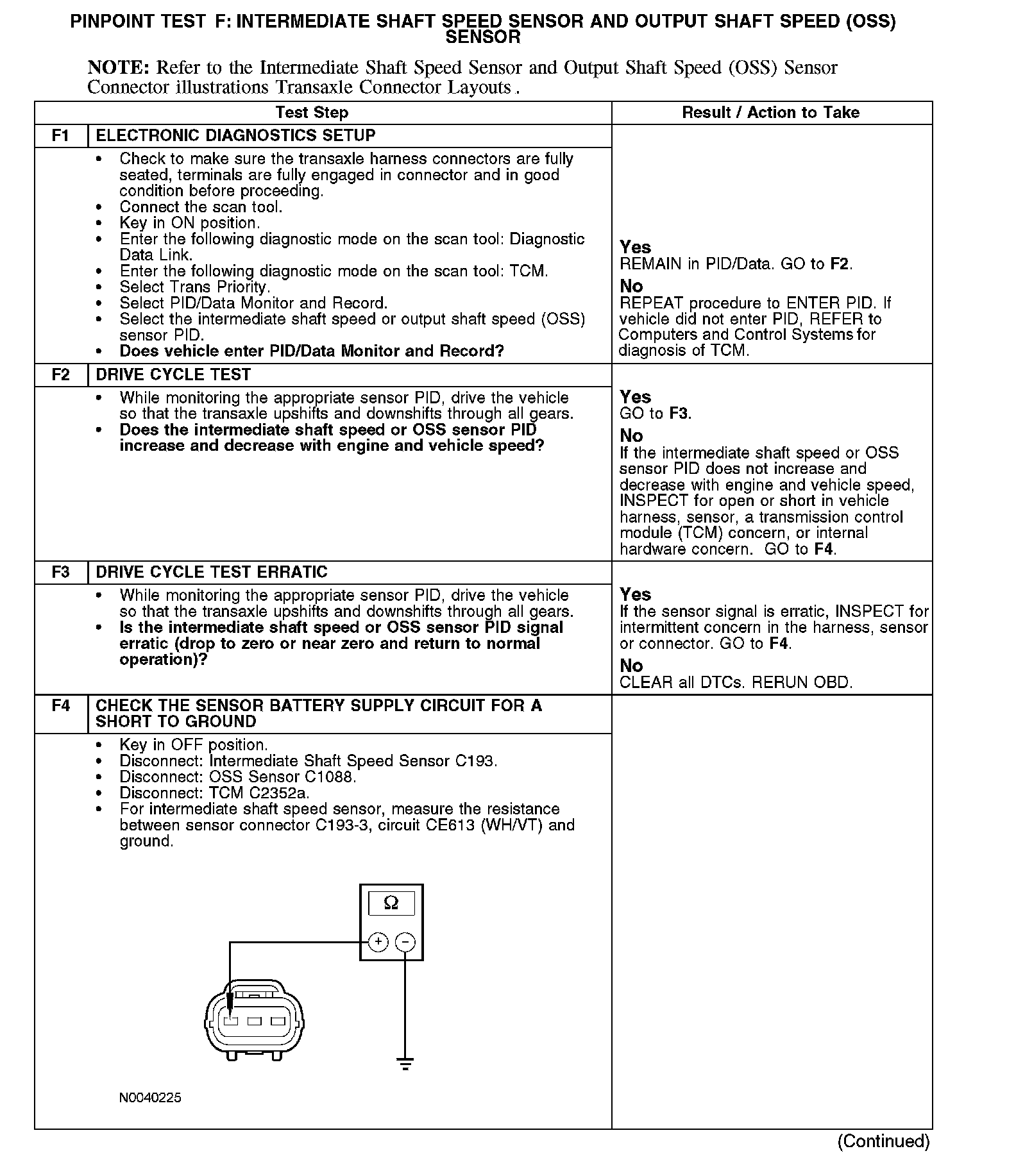

F1-F4:




F4 (Continued)-F5:

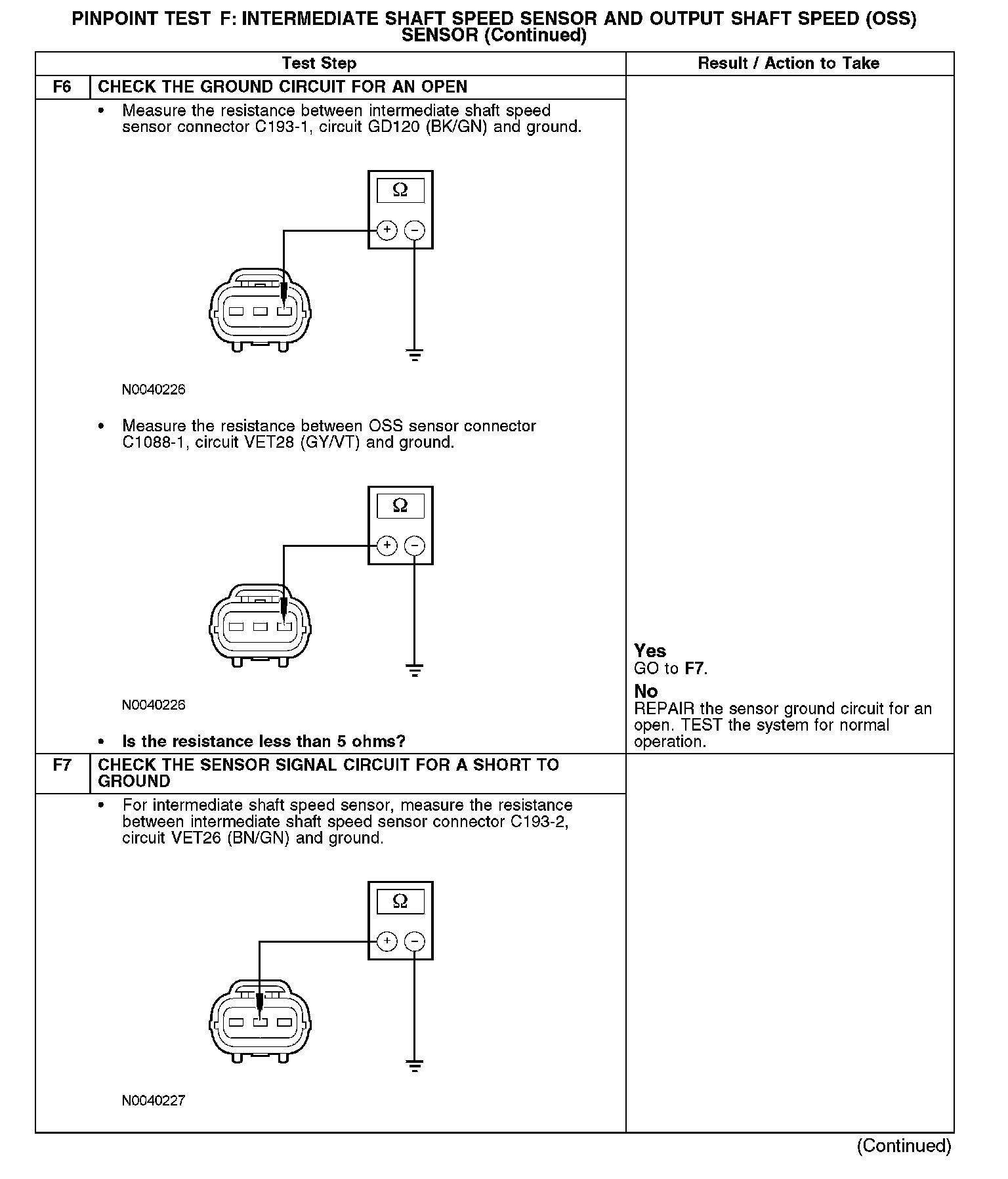

F6-F7:

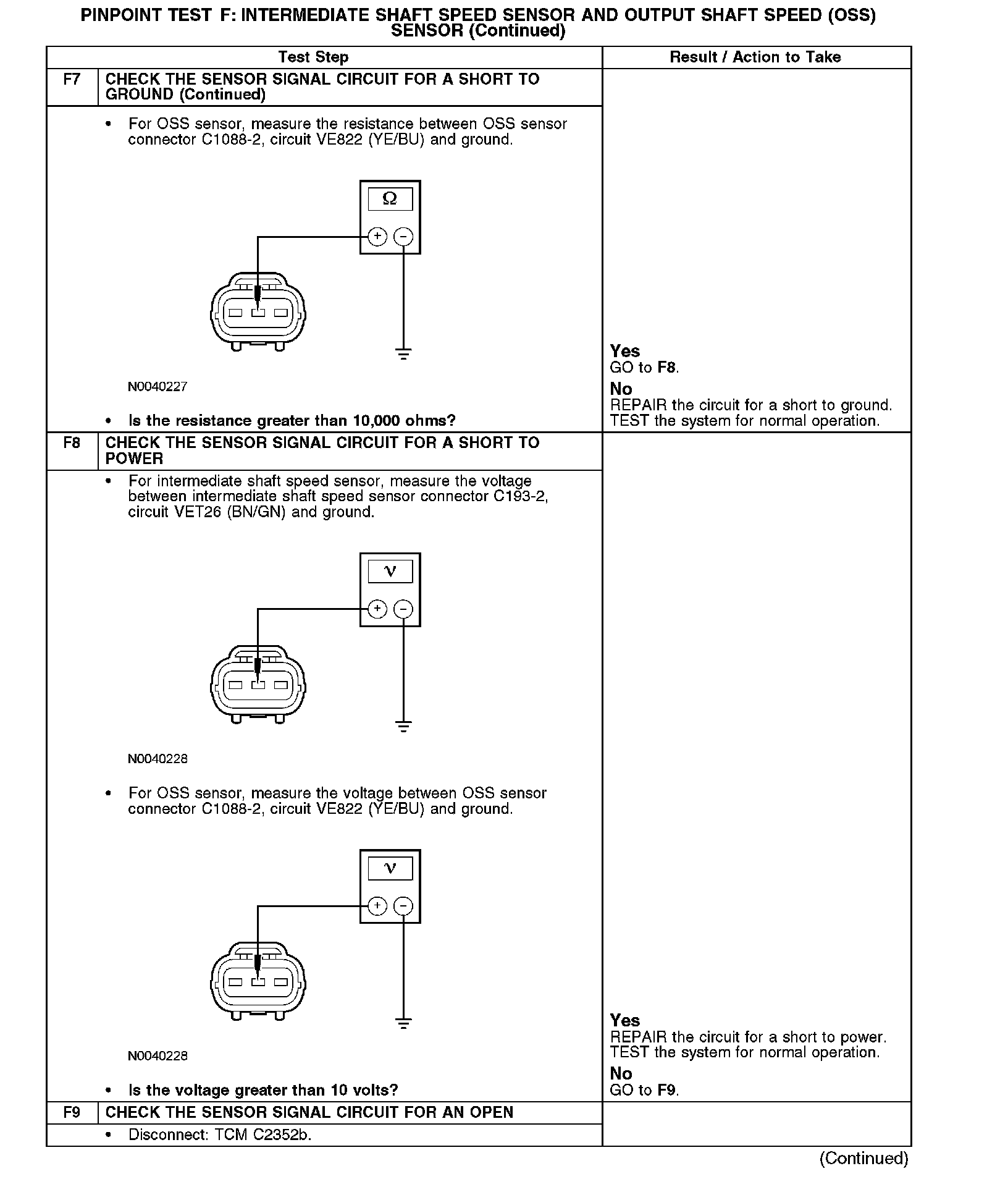

F7 (Continued)-F9:

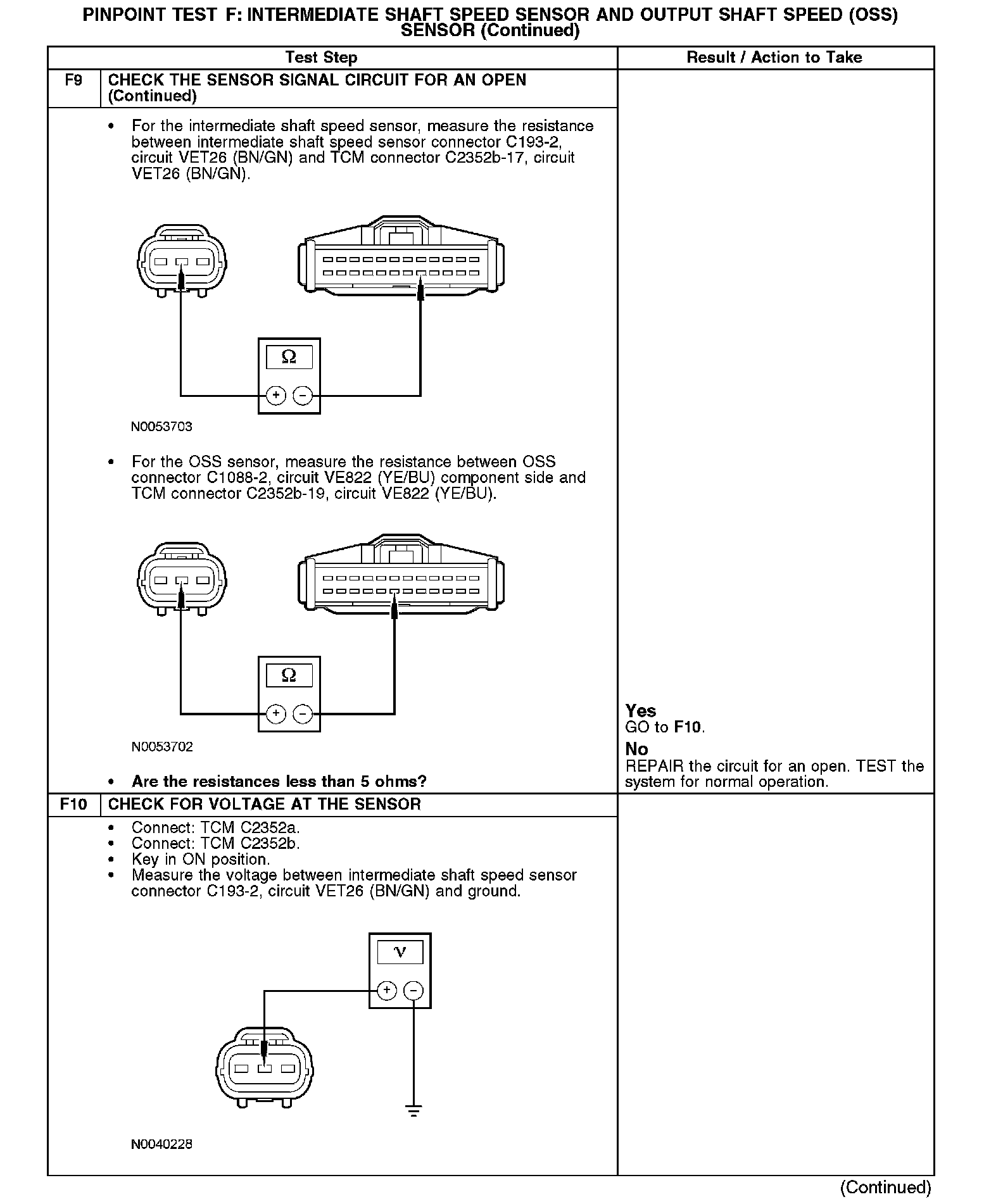

F9 (Continued)-F10:

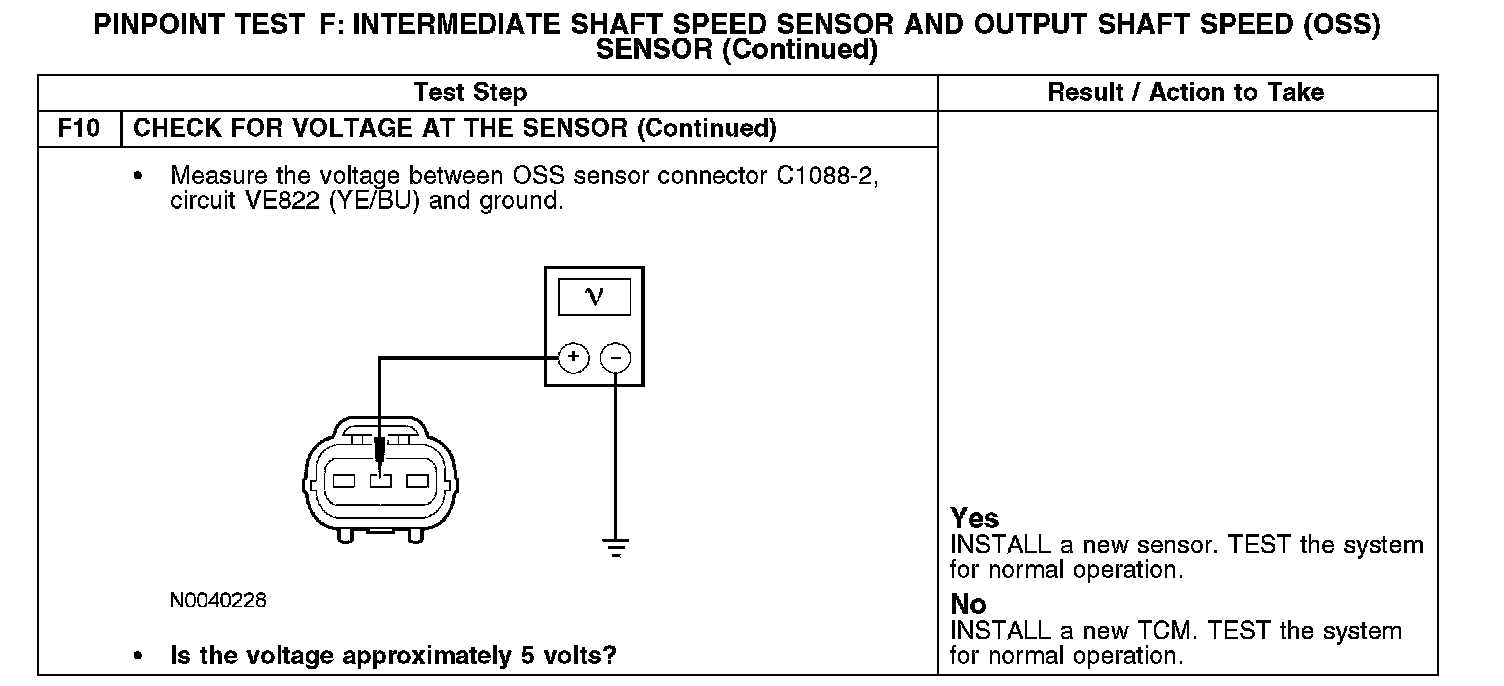

F10:
