Test C: Transmission Range (TR) Sensor
Test C: Transmission Range (TR) Sensor
PINPOINT TEST C: TRANSMISSION RANGE (TR) SENSOR

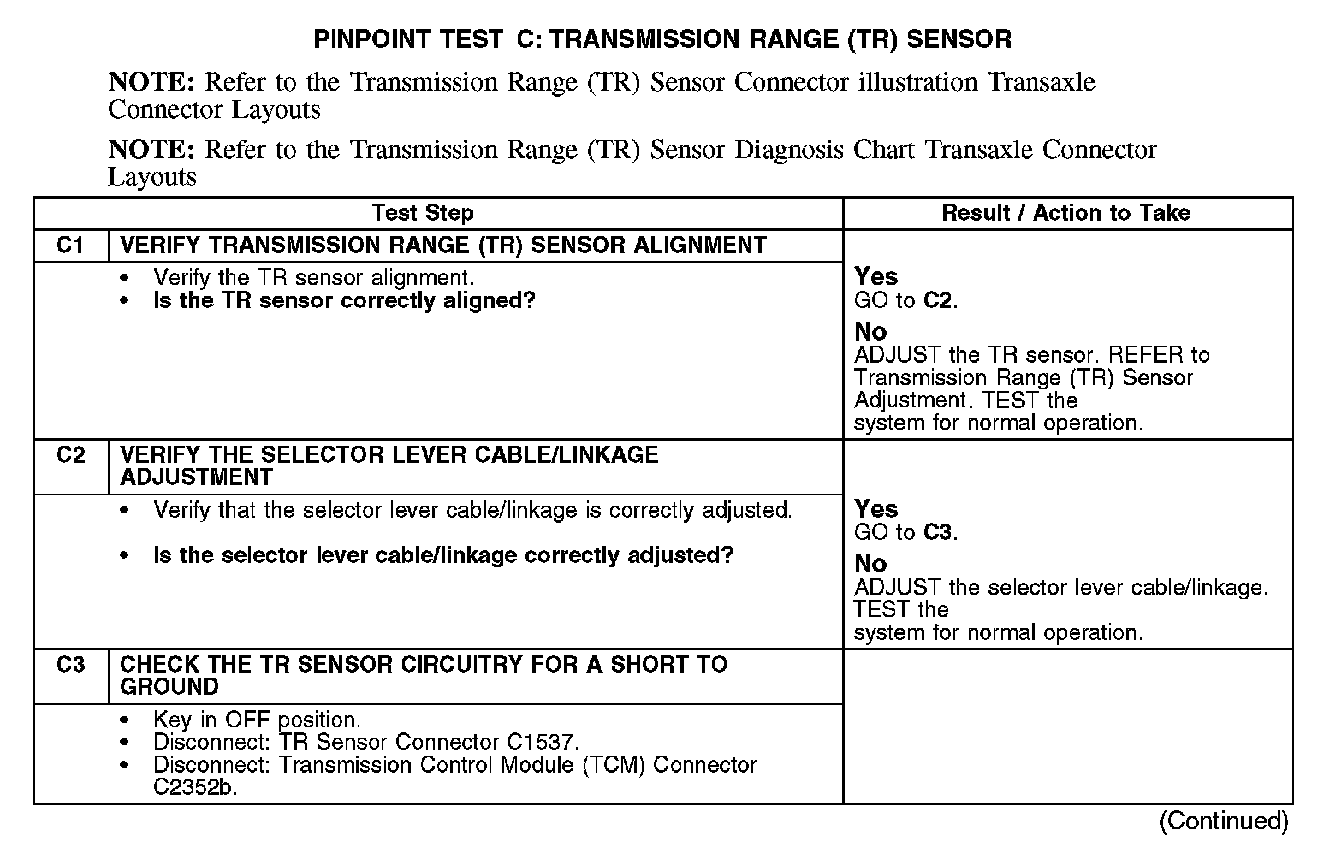

C1-C3:

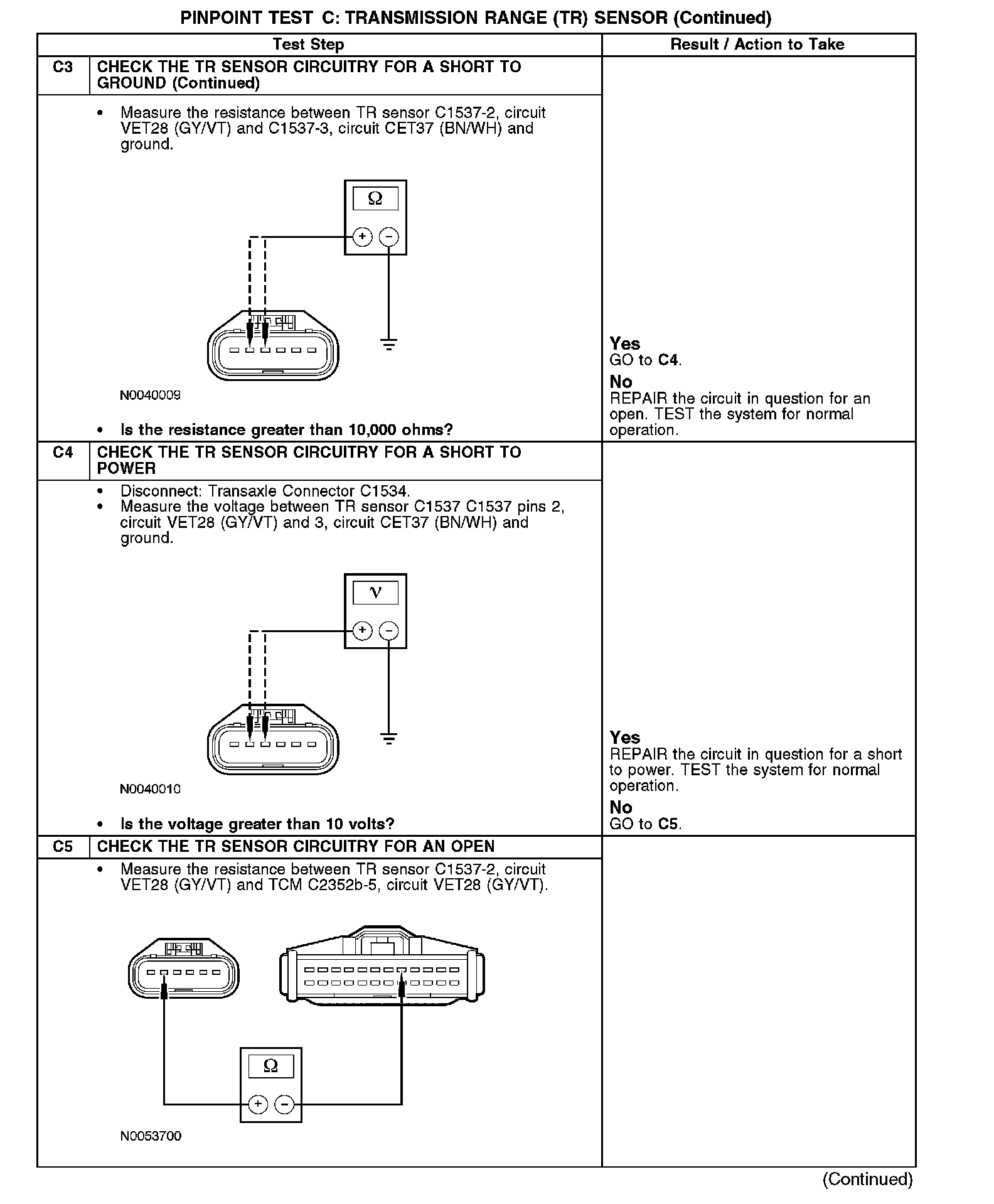

C3 (Continued)-C5:

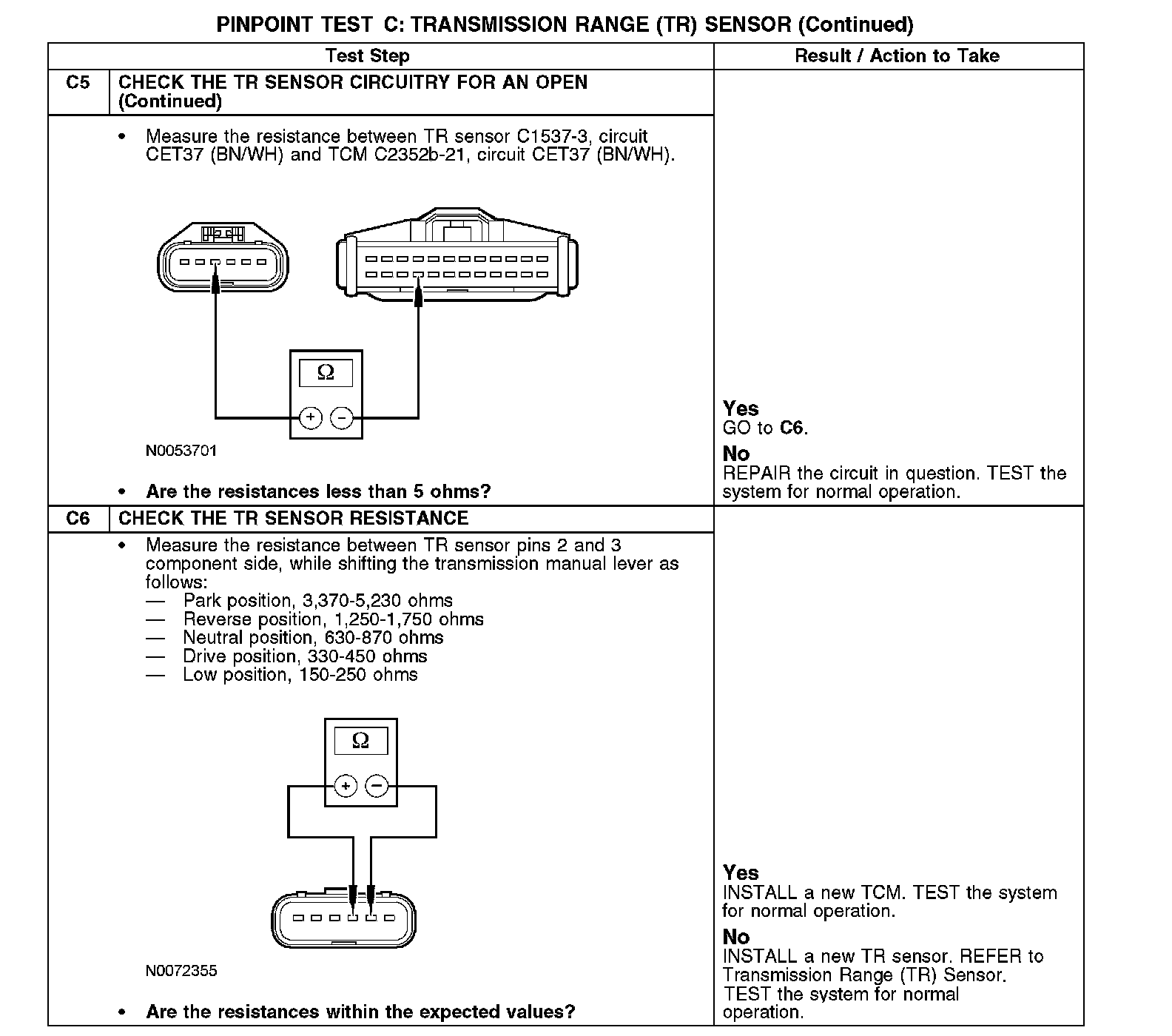

C5 (Continued)-C6:
