Test C: Output Shaft Speed (OSS) Sensors
Test C: Output Shaft Speed (OSS) Sensors
PINPOINT TEST C: OUTPUT SHAFT SPEED (OSS) SENSORS

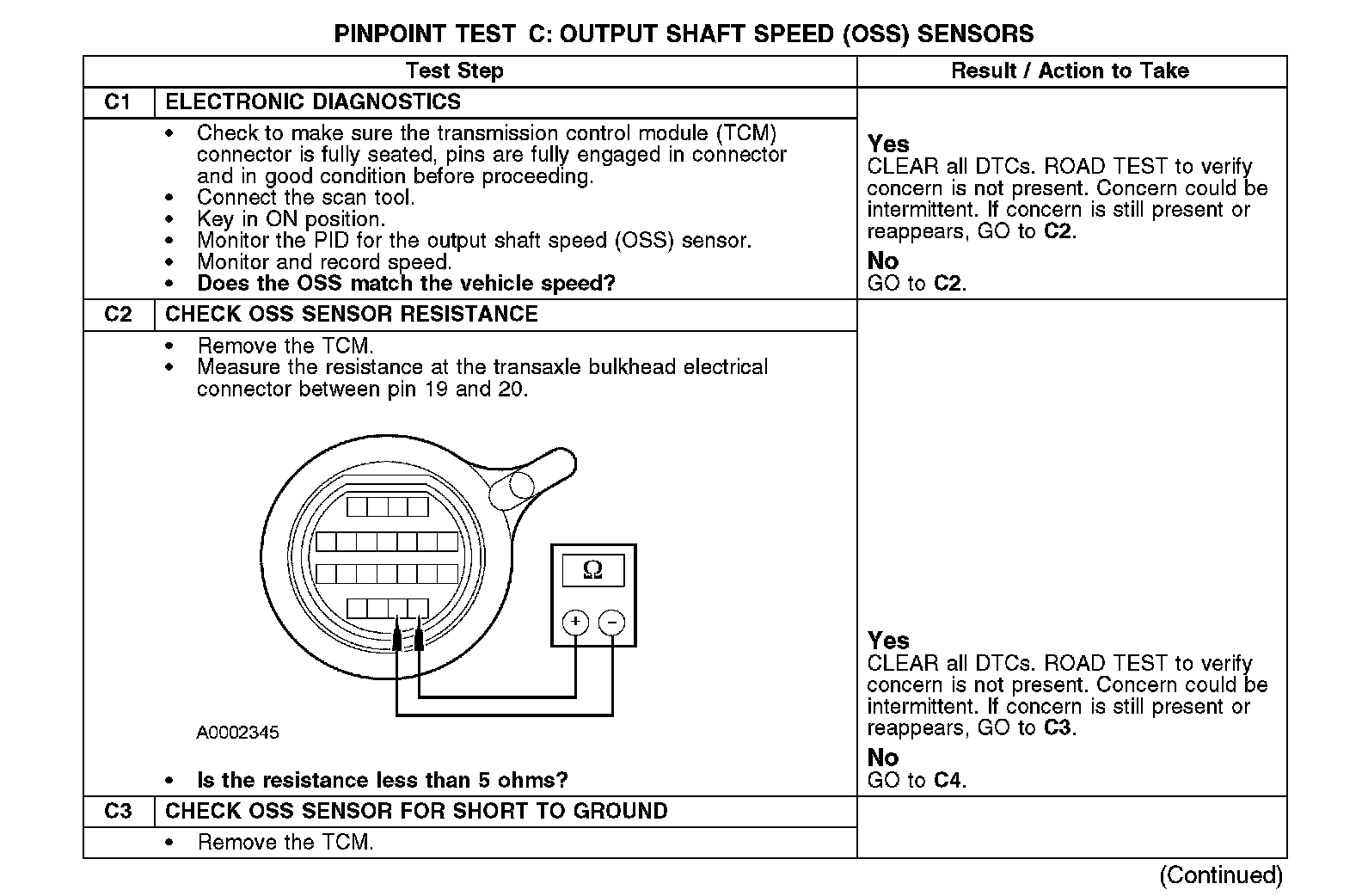

C1-C3:

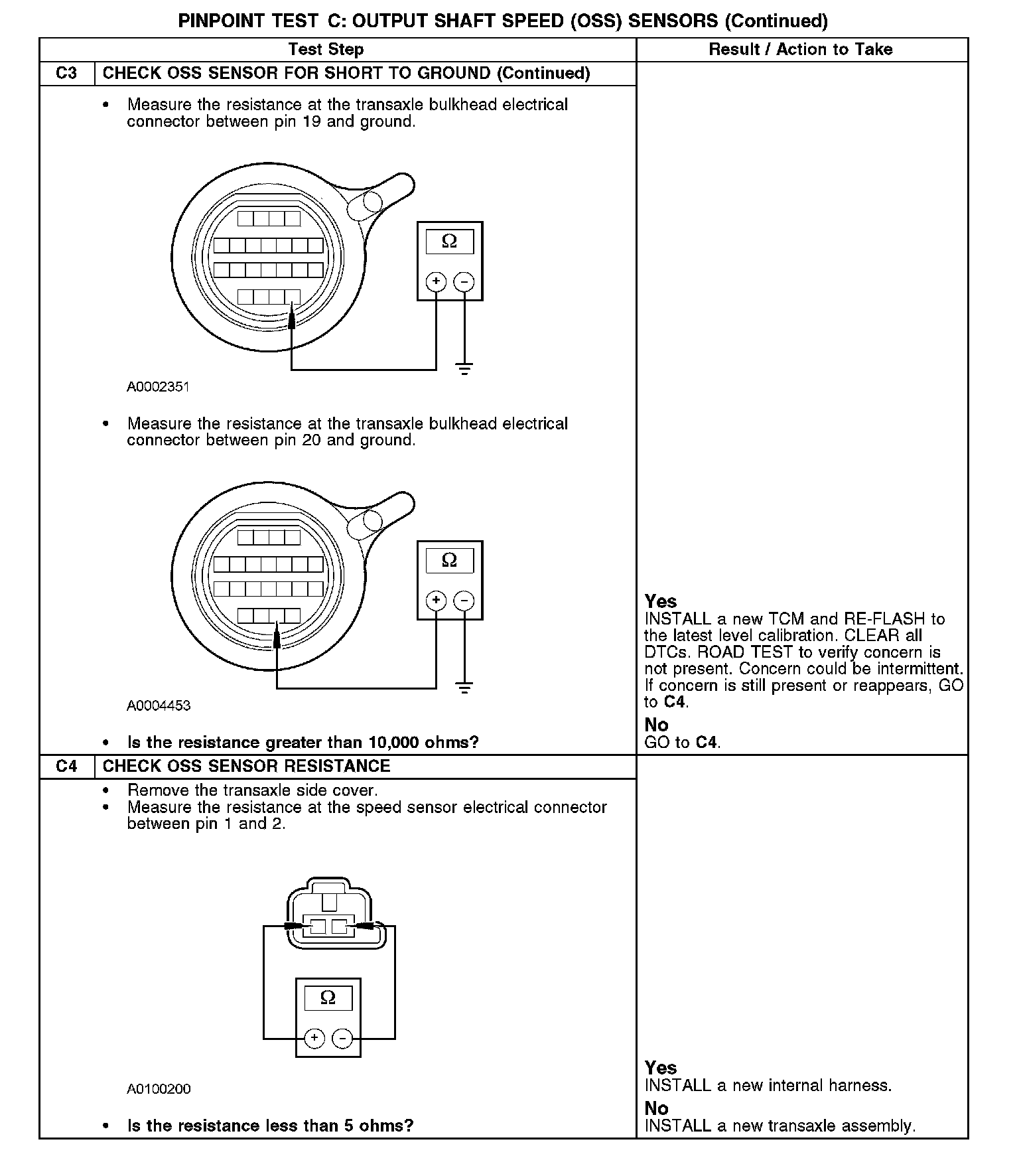

C3 (Continued)-C4:
