External Controls
>>
Selector Lever Harness Connector C3245
Selector Lever Harness Connector C3245

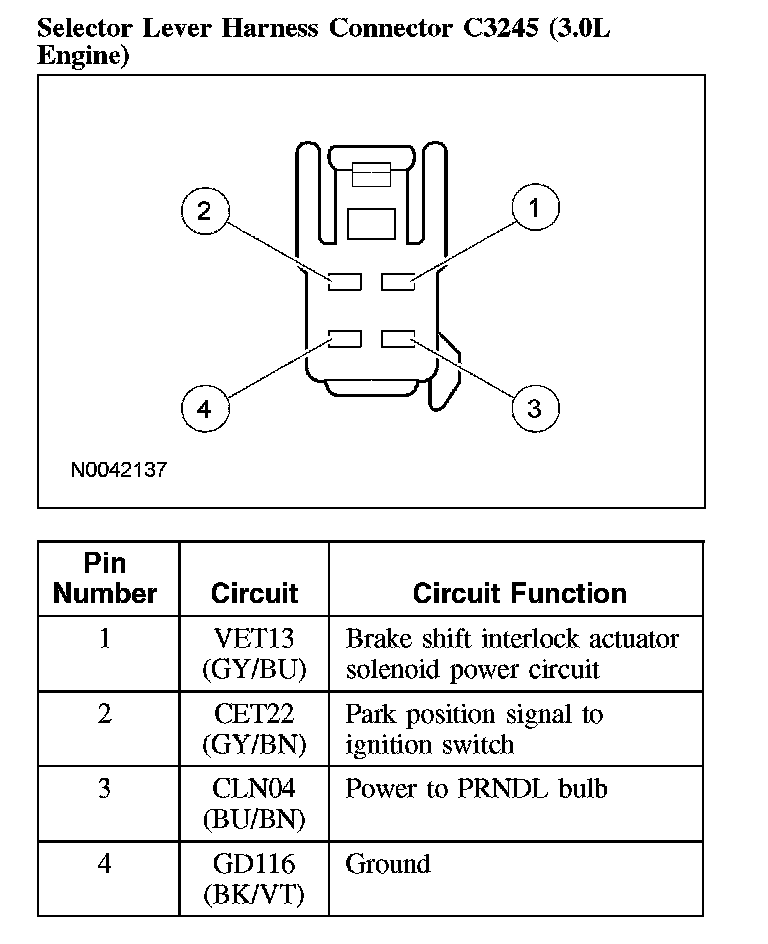

Selector Lever Harness Connector C3245 (3.0L Engine)
Selector Lever Harness Connector C3245 (3.0L Engine):
