Selector Lever Knob

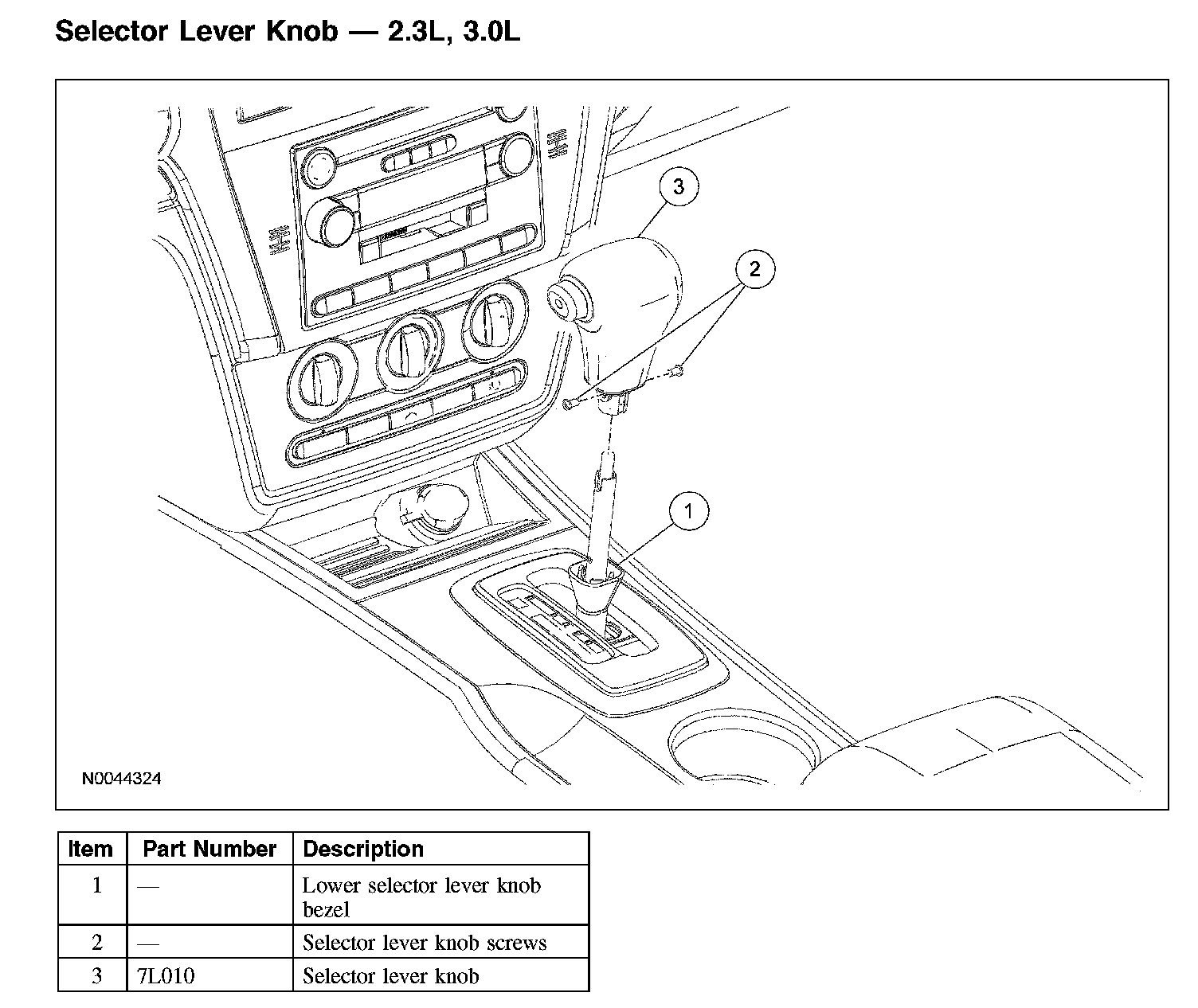

Selector Lever Knob - 2.3L, 3.0L

Selector Lever Knob - 2.3L, 3.0L:

Removal
1. Slide the lower selector lever knob bezel downward.

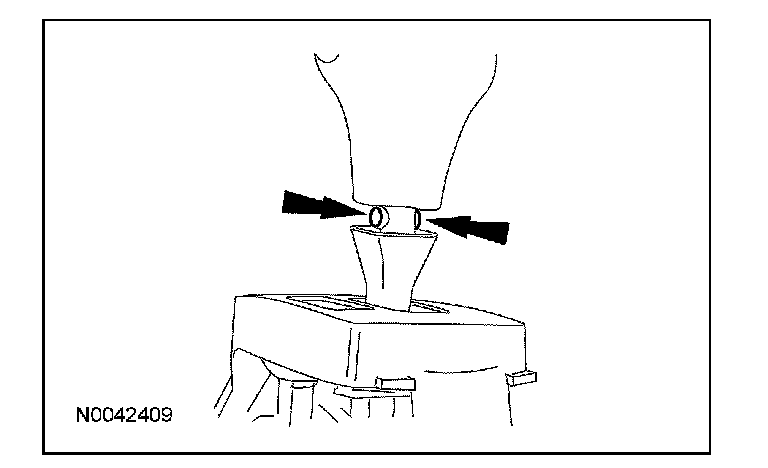

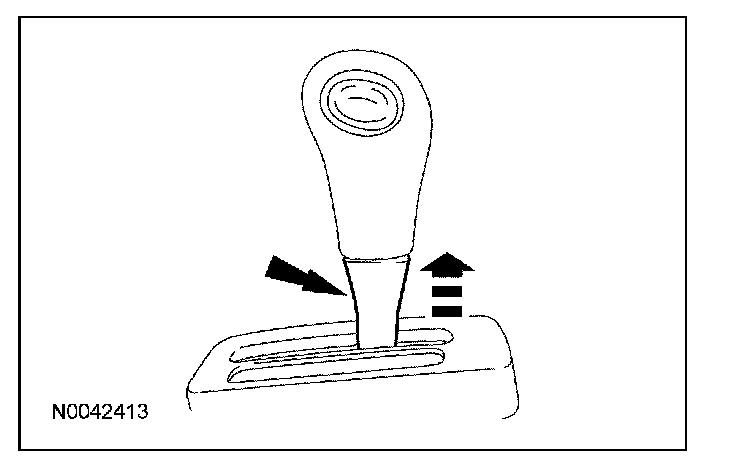

2. Remove and discard the 2 bolts and lift up on the selector lever knob to remove.





Installation

1. CAUTION: Do not overtighten the selector lever knob bolts or damage to the selector lever or knob may occur.

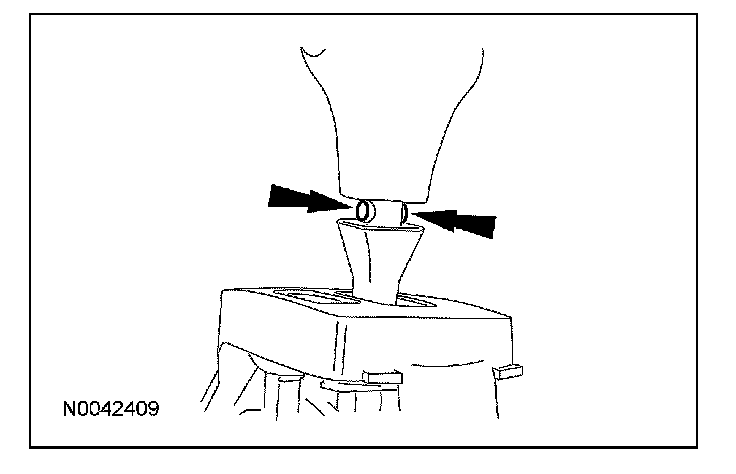

Install the selector lever knob and 2 new bolts.
^ Tighten to 2 Nm (18 lb-in).





2. Slide the lower selector lever knob bezel up and snap it into place.
