Halfshaft Seal - LH

Halfshaft Seal - LH





Removal
1. Remove the LH halfshaft.

2. CAUTION: Be careful not to damage the case while removing the seal.

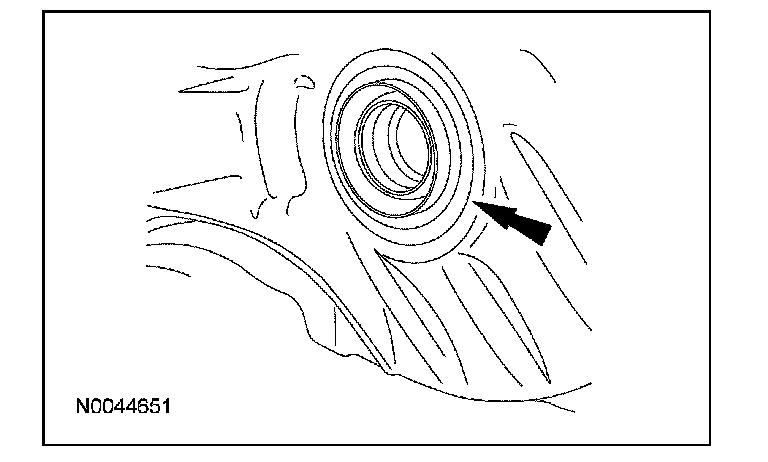

Using a suitable tool, remove the LH differential fluid seal.





Installation

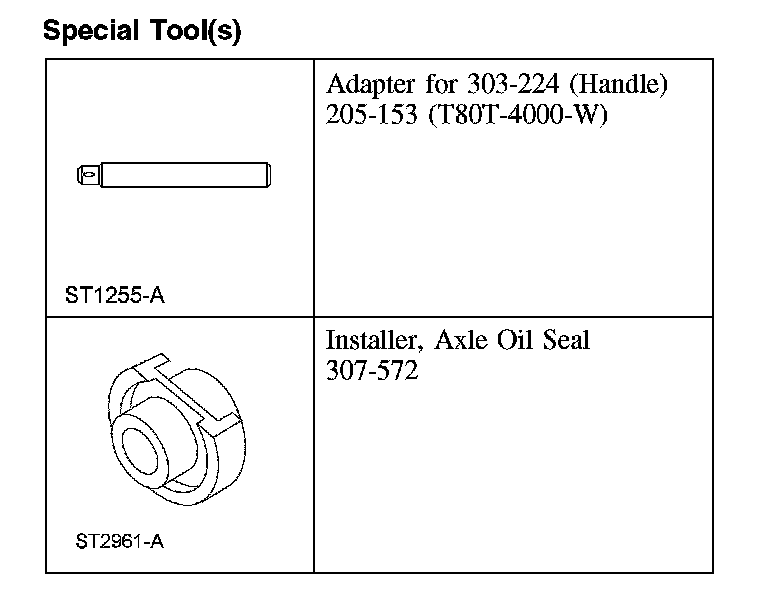

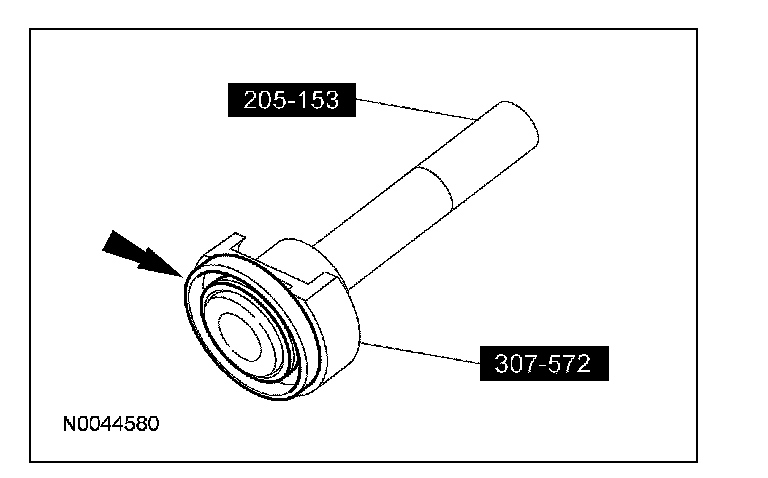

1. Position the new differential fluid seal on the special tools.

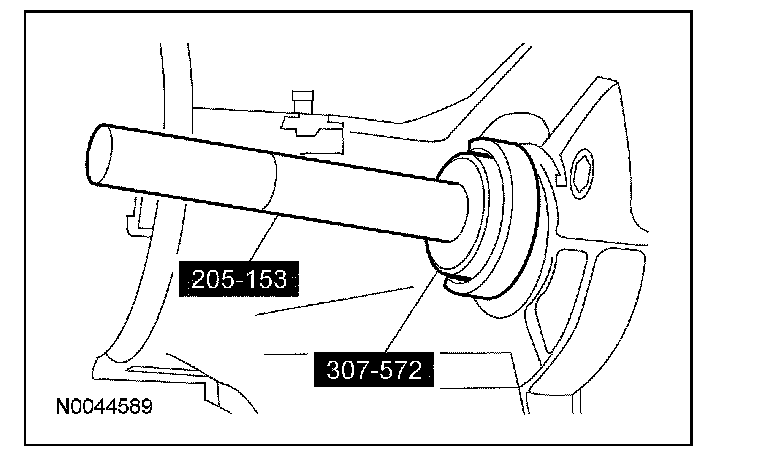

2. Using the special tools, install the halfshaft seal.





3. Install the LH halfshaft.
