6 Speed - Automatic Transmission

Transaxle Cooling - 6 Speed
These vehicles are equipped with an internal transmission fluid cooler. The transmission fluid cooler is mounted in the engine radiator tank. In operation, transmission fluid travels from the transaxle to the transmission fluid cooler then back to the transaxle. The transmission fluid cooler transfers heat from the transmission fluid to the engine coolant.

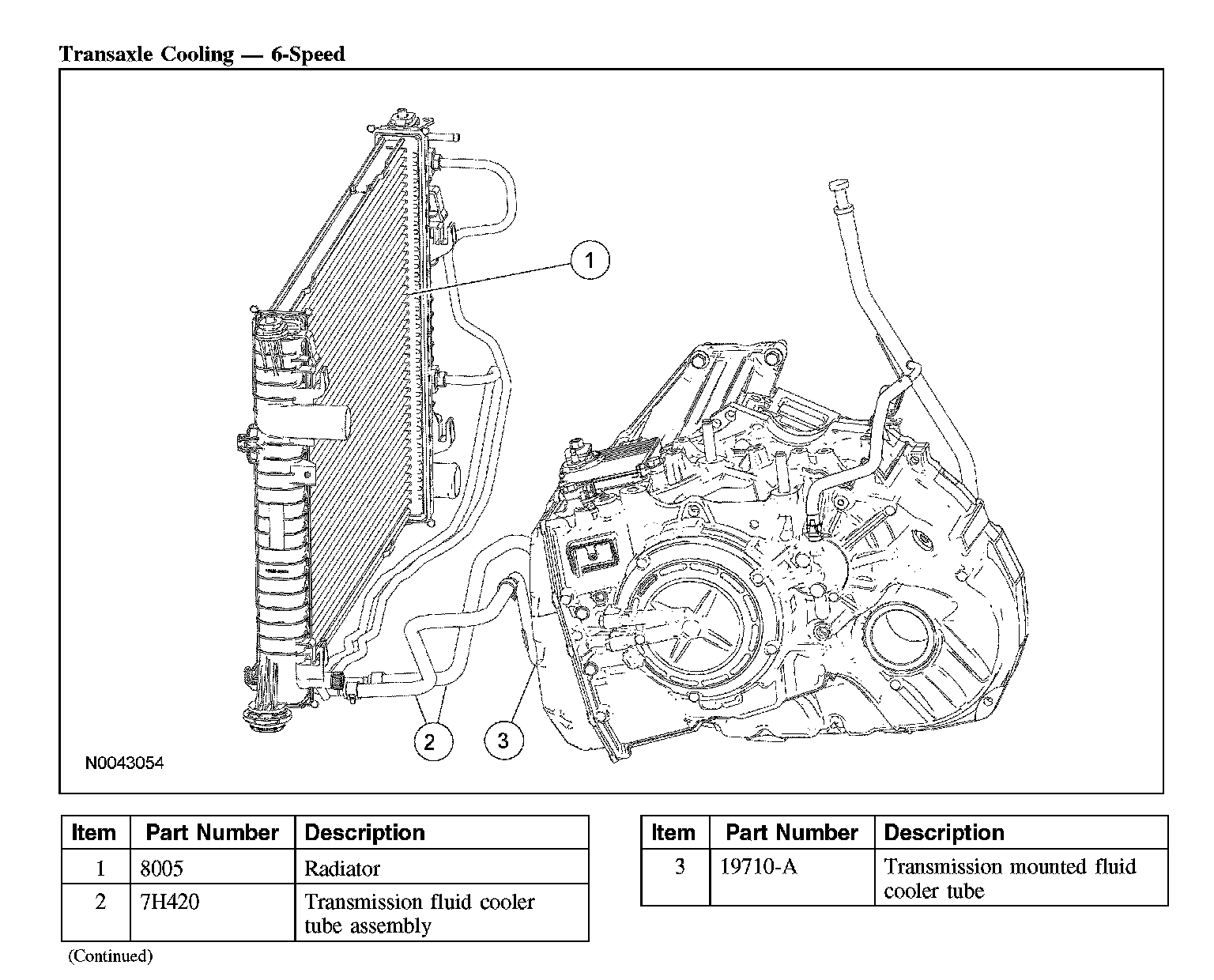

Transaxle Cooling - 6-Speed

Transaxle Cooling - 6 Speed:
