Home >> Mercury >> 2008 >> Milan AWD V6-3.0L >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Column >> Testing and Inspection >> Pinpoint Tests >> Test C: No Power In RUN

Test C: No Power In RUN

PINPOINT TEST C: NO POWER IN RUN

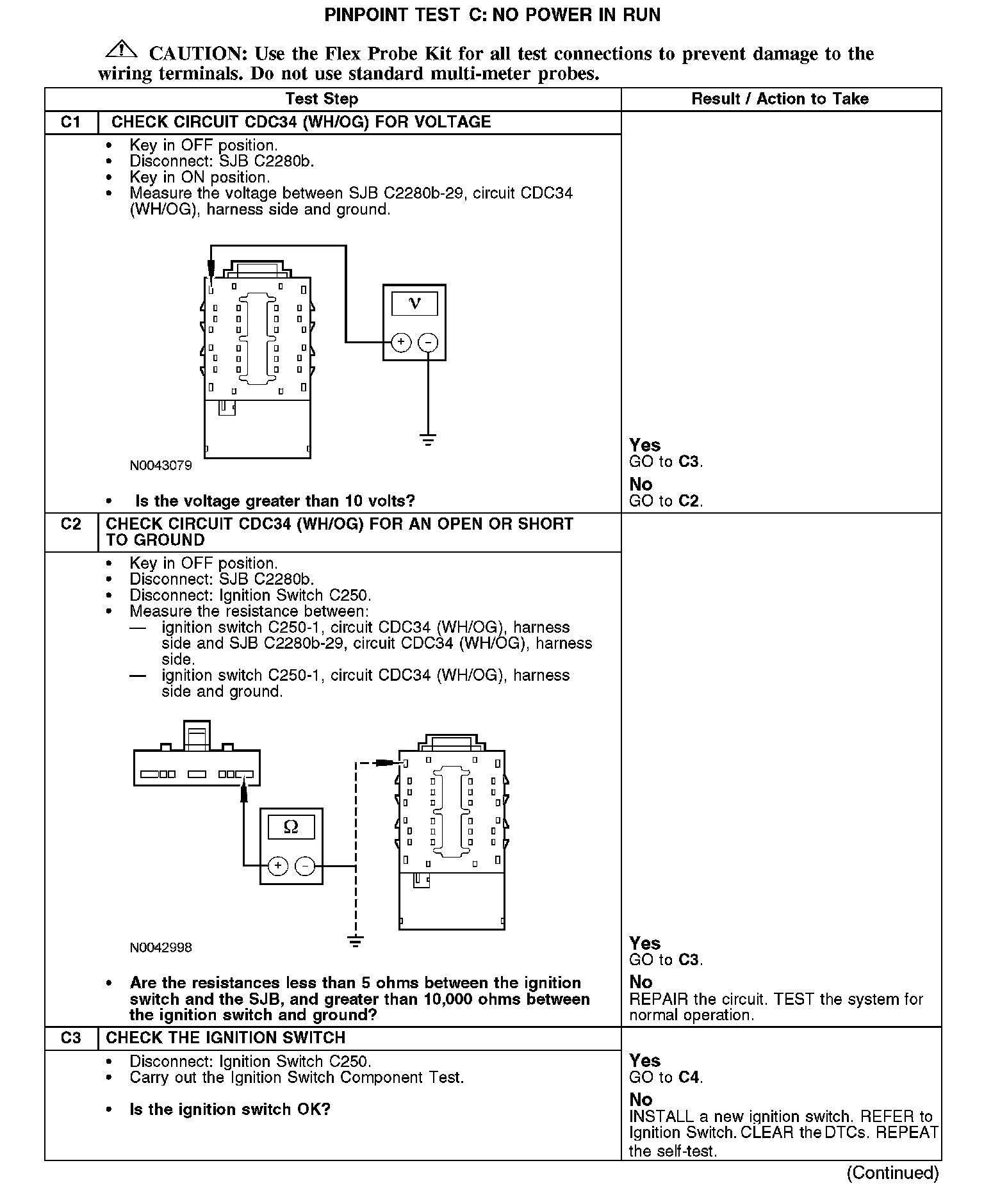

C1-C3:

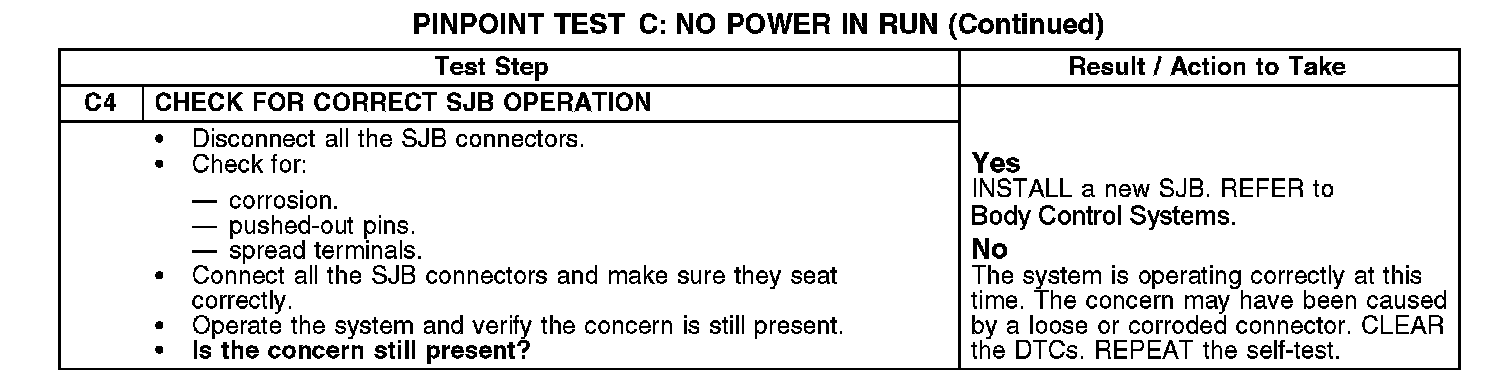

C4:
