Home >> Mercury >> 2008 >> Milan AWD V6-3.0L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Cruise Control >> Clutch Switch >> Diagrams >> Clutch Pedal Speed Control Deactivator Switch

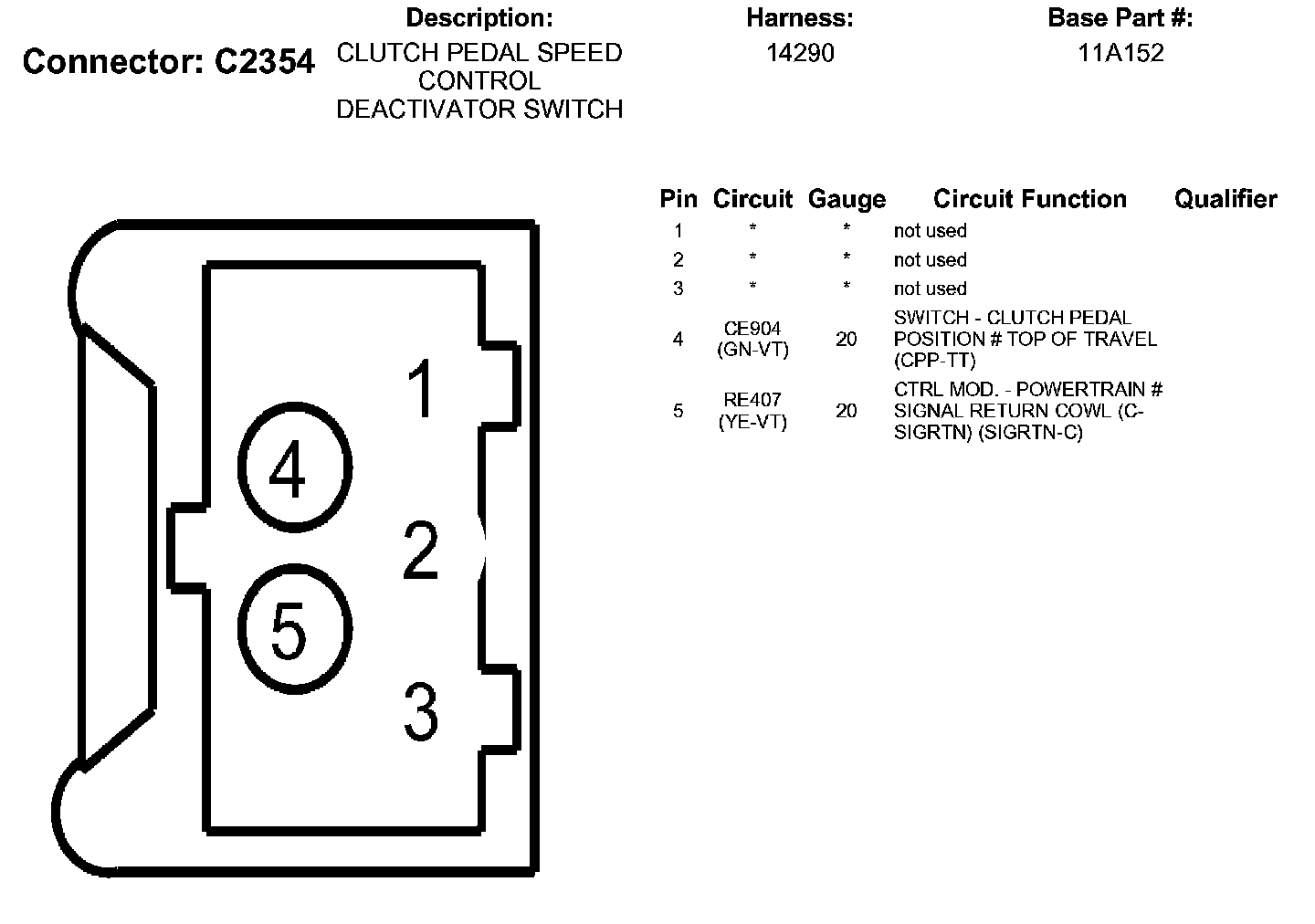

Clutch Pedal Speed Control Deactivator Switch

C2354:
