Seat Temperature Switch: Service and Repair
SEAT CONTROL SWITCHExploded View
Front Seat Backrest without Fold-Flat (Part 1):
Front Seat Backrest without Fold-Flat (Part 2):
Front Seat Backrest with Fold-Flat (Part 1):
Front Seat Backrest with Fold-Flat (Part 2):
Driver Seat Cushion (Part 1):
Driver Seat Cushion (Part 2):
Passenger Seat Cushion (Part 1):
Passenger Seat Cushion (Part 2):

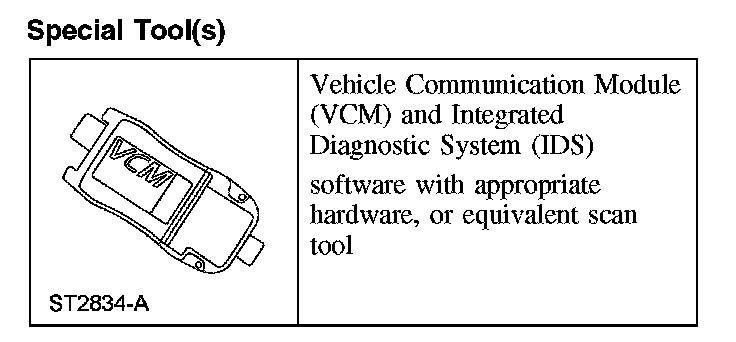

Special Tool(s)
Special Tool(s):
Removal and Installation
NOTE:
- The air bag warning lamp illuminates when the restraints control module (RCM) fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
All seats
1. Remove the front seat.
2. Remove the spring clip and manual recliner handle, if equipped.
3. Pull and remove the manual lumbar control knob and seat control switch button(s), if equipped.
4. Detach and position aside the cushion side shield in the following sequence.
1 Pull the side shield away from the seat cushion at the front edge and release the forward and side retainers.
2 Pull the side shield rearward to release the rear retainer and position the cushion side shield aside.
- Return any detached retainers to the side shield.
- To install, position the rear retainer clip on the cushion side shield through the hole in the backrest trim cover flap before attaching to the rear edge of the seat.
5. Disconnect the seat control switch, release the cushion side shield retainers and remove the seat control switch.
6. To install, reverse the removal procedure.
7. Install the front seat and repower the SRS. If a passenger seat has been serviced, do not prove out the SRS at this time.
Passenger seat
8. Carry out the Occupant Classification Sensor (OCS) System Zero Seat Weight Test.
