Test P: DTC B2792 - Cross Link Between Firing Loops

PINPOINT TEST P: DTC B2792 - CROSS LINK BETWEEN FIRING LOOPS

Normal Operation
The restraints control module (RCM) monitors all the deployable devices for a cross link between the circuits of another deployable device. If the RCM detects a short between the circuits of the deployable devices, it will store DTC B2792 and send a message to the instrument cluster (IC) module to illuminate the air bag indicator.

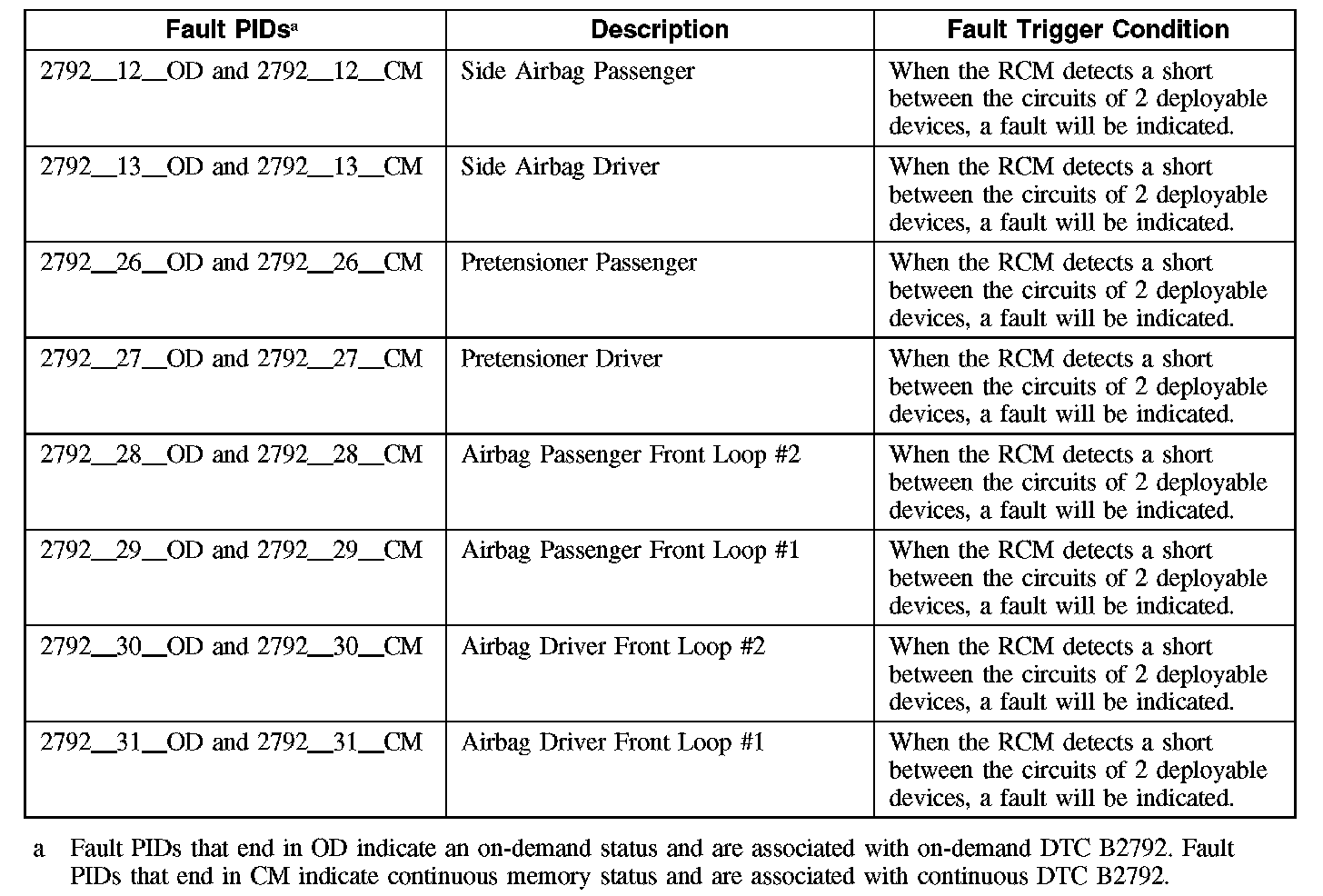

Part 1:

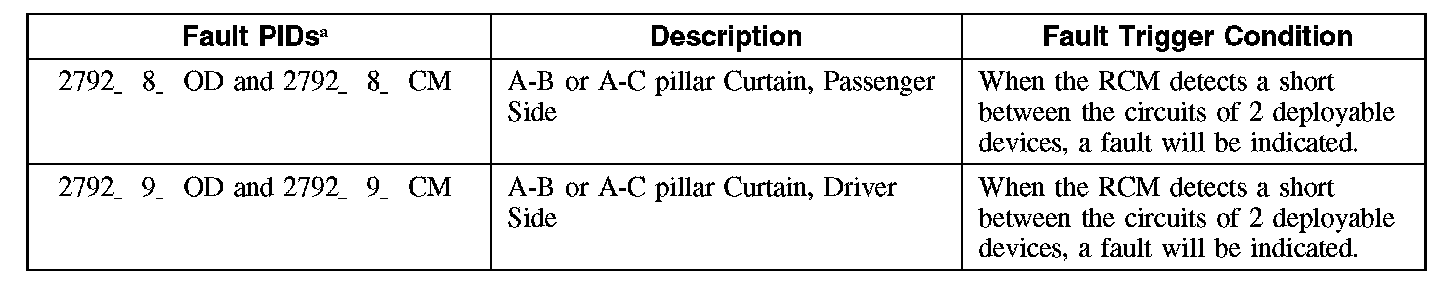

Part 2:

This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- RCM

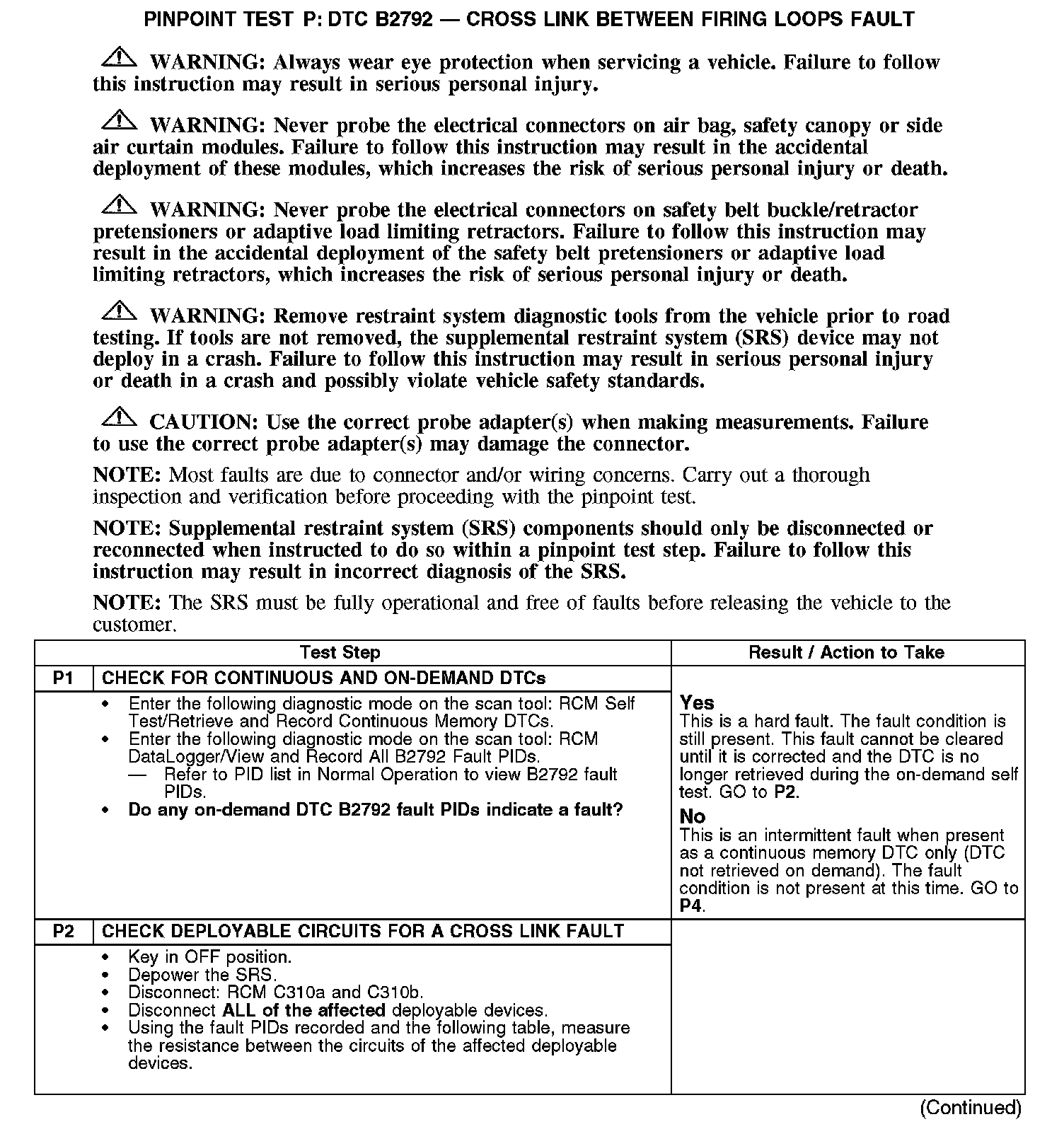

P1-P2:

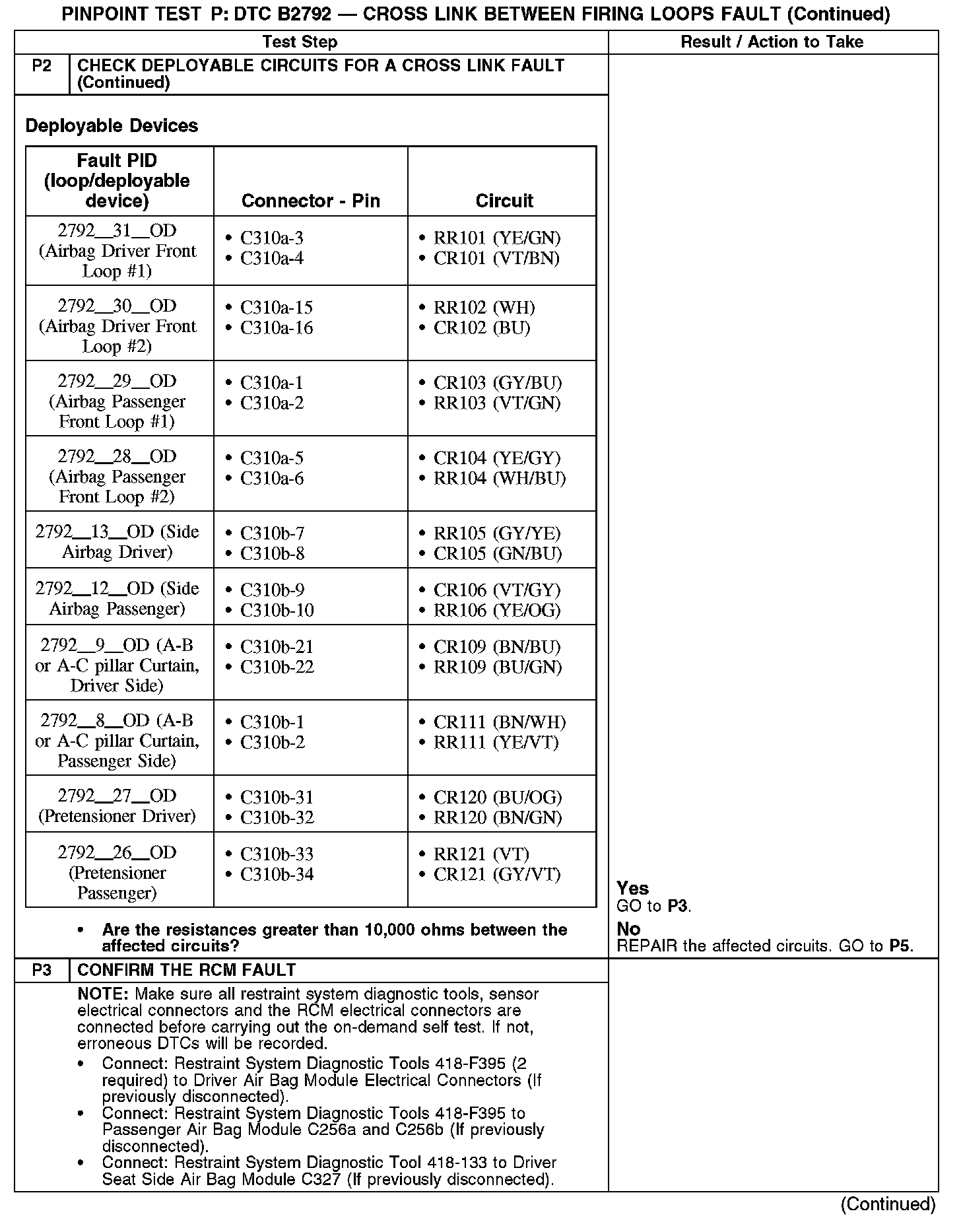

P2-P3:

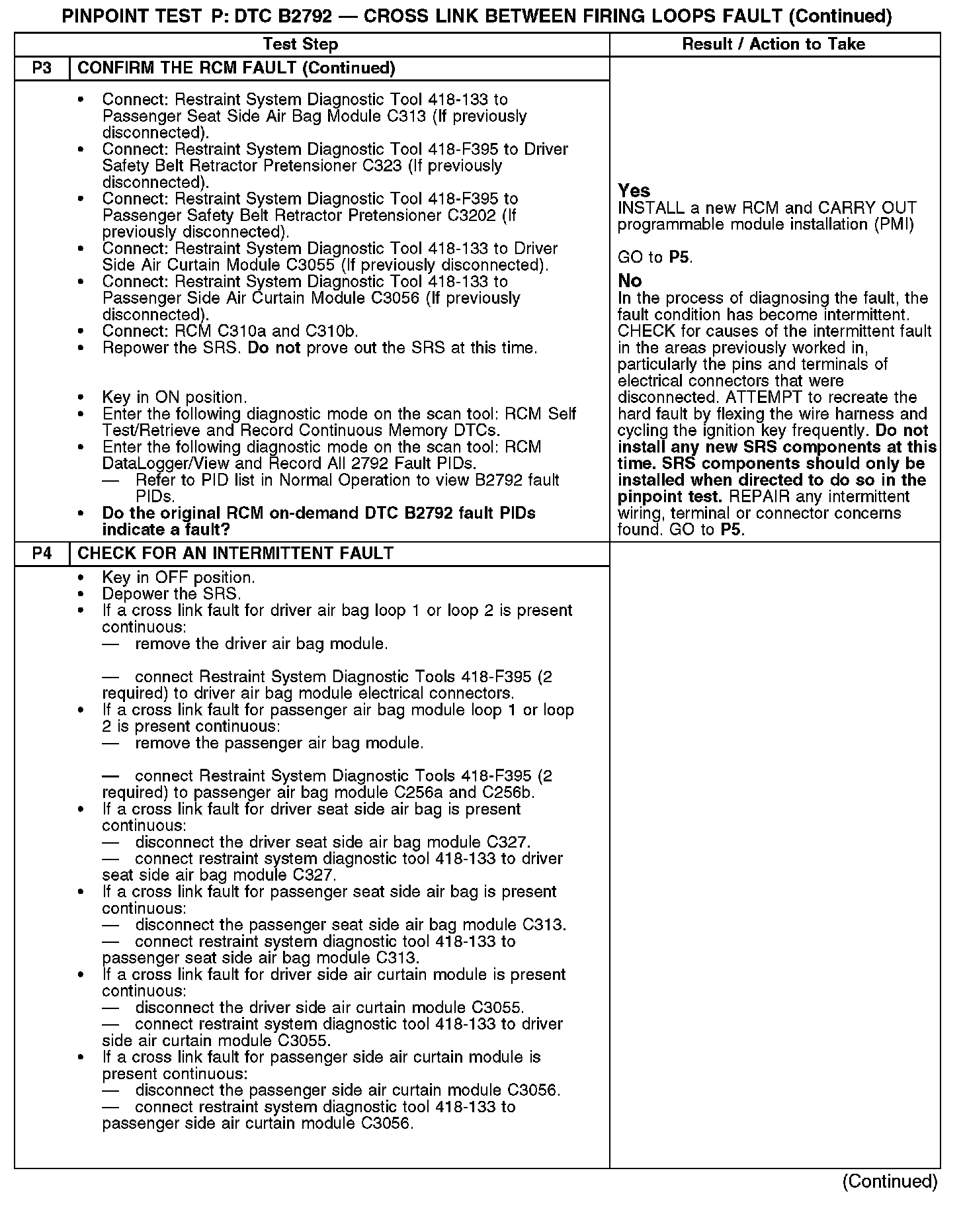

P3-P4:

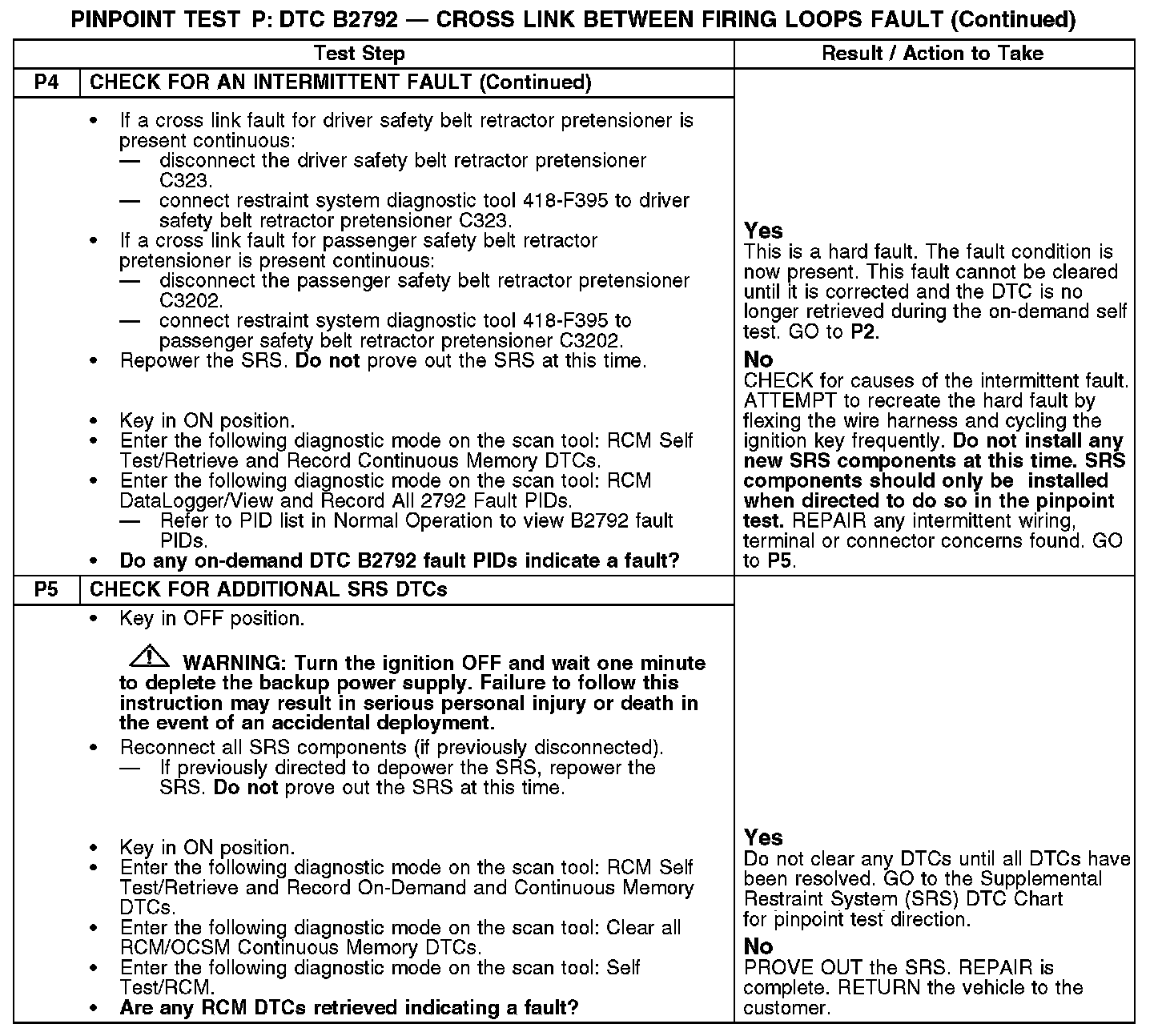

P4-P5:
