Home >> Mercury >> 2008 >> Milan AWD V6-3.0L >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Ignition Coil >> Diagrams >> Coil On Plug (COP) 6

Coil On Plug (COP) 6

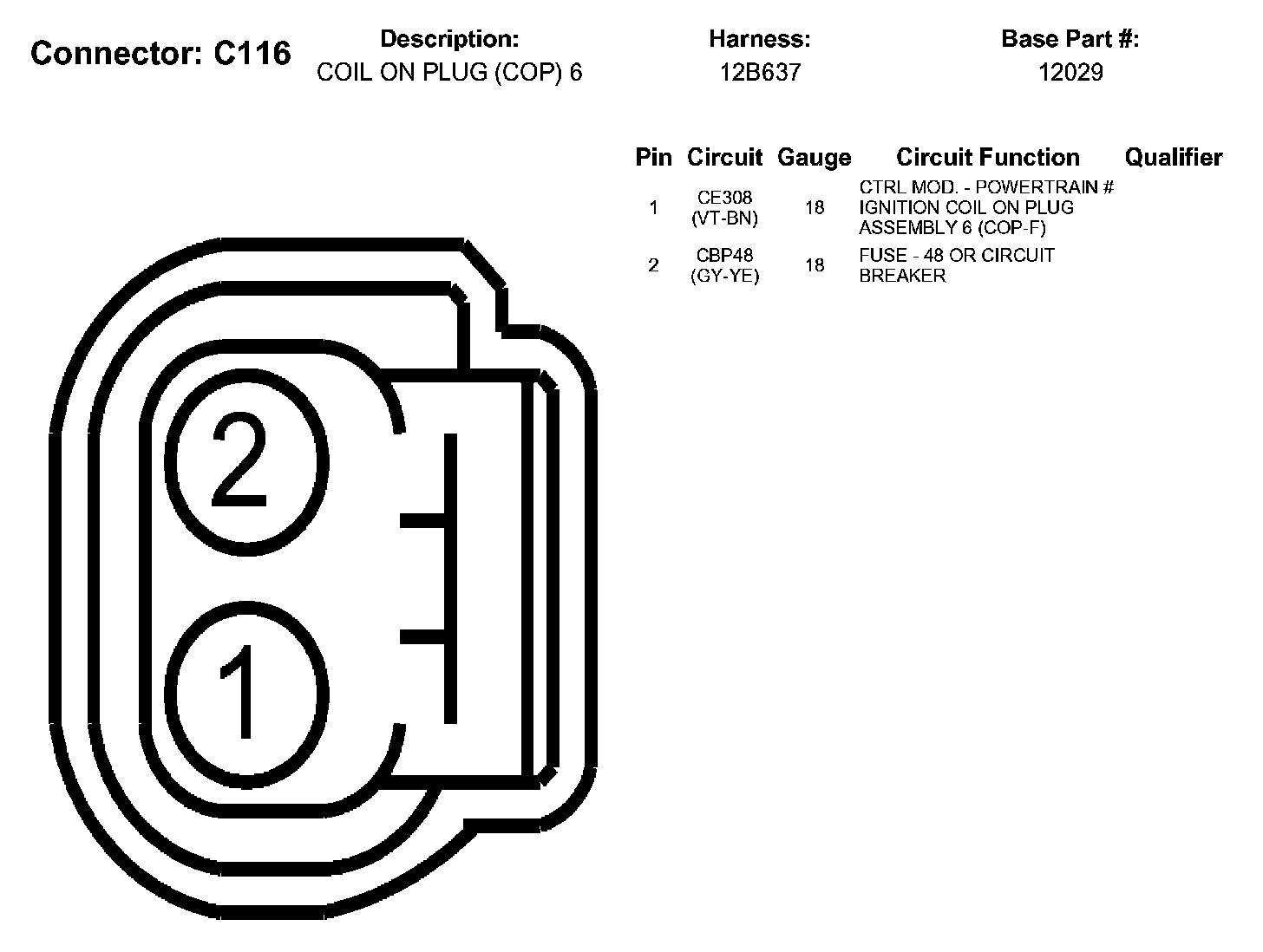

C116:

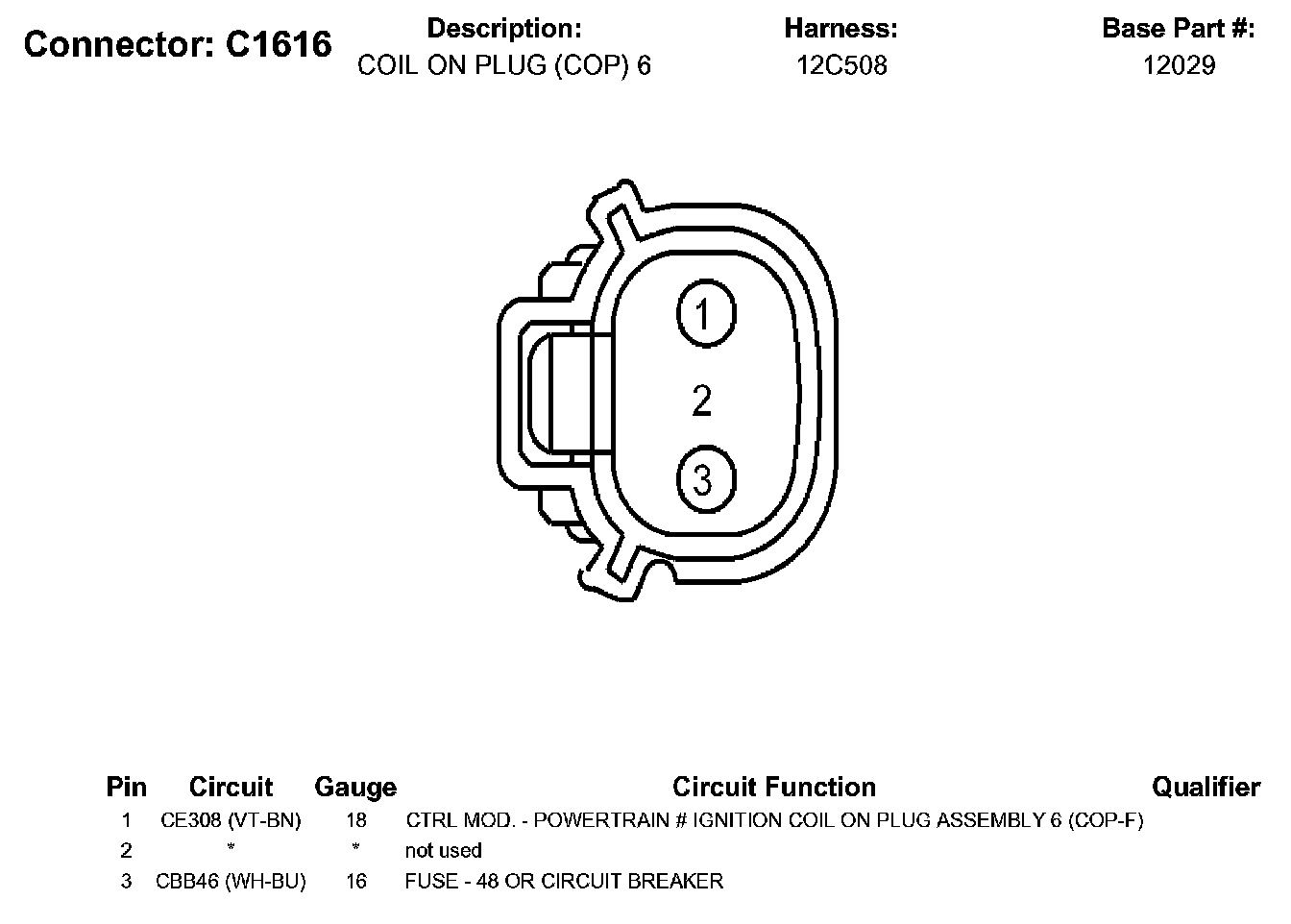

C1616:
