Tests HG: Positive Crankcase Ventilation (PCV) System

PINPOINT TEST HG: POSITIVE CRANKCASE VENTILATION (PCV) SYSTEM

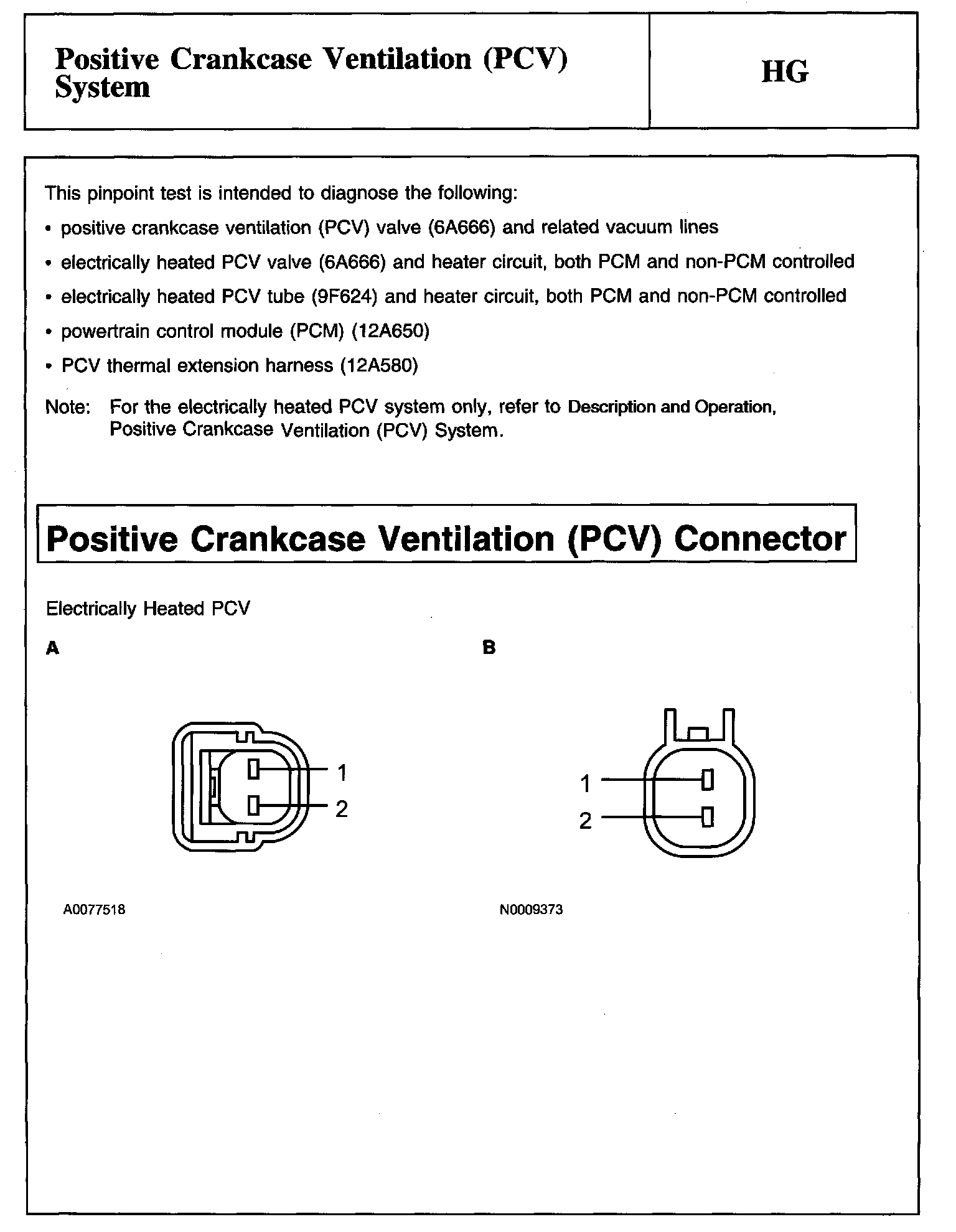

Description, Note And Positive Crankcase Ventilation (PCV) Connector:

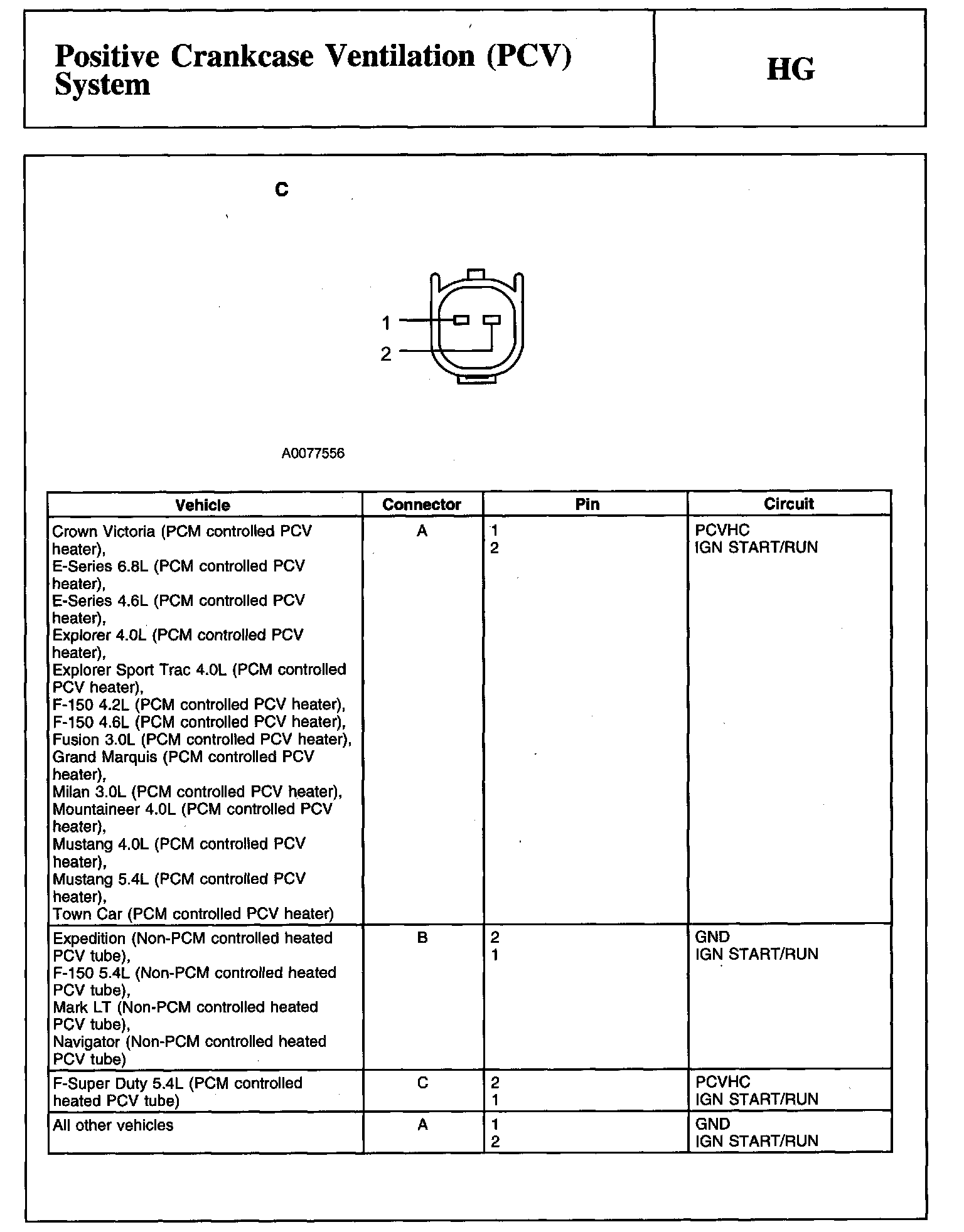

Positive Crankcase Ventilation (PCV) Connector Continued:

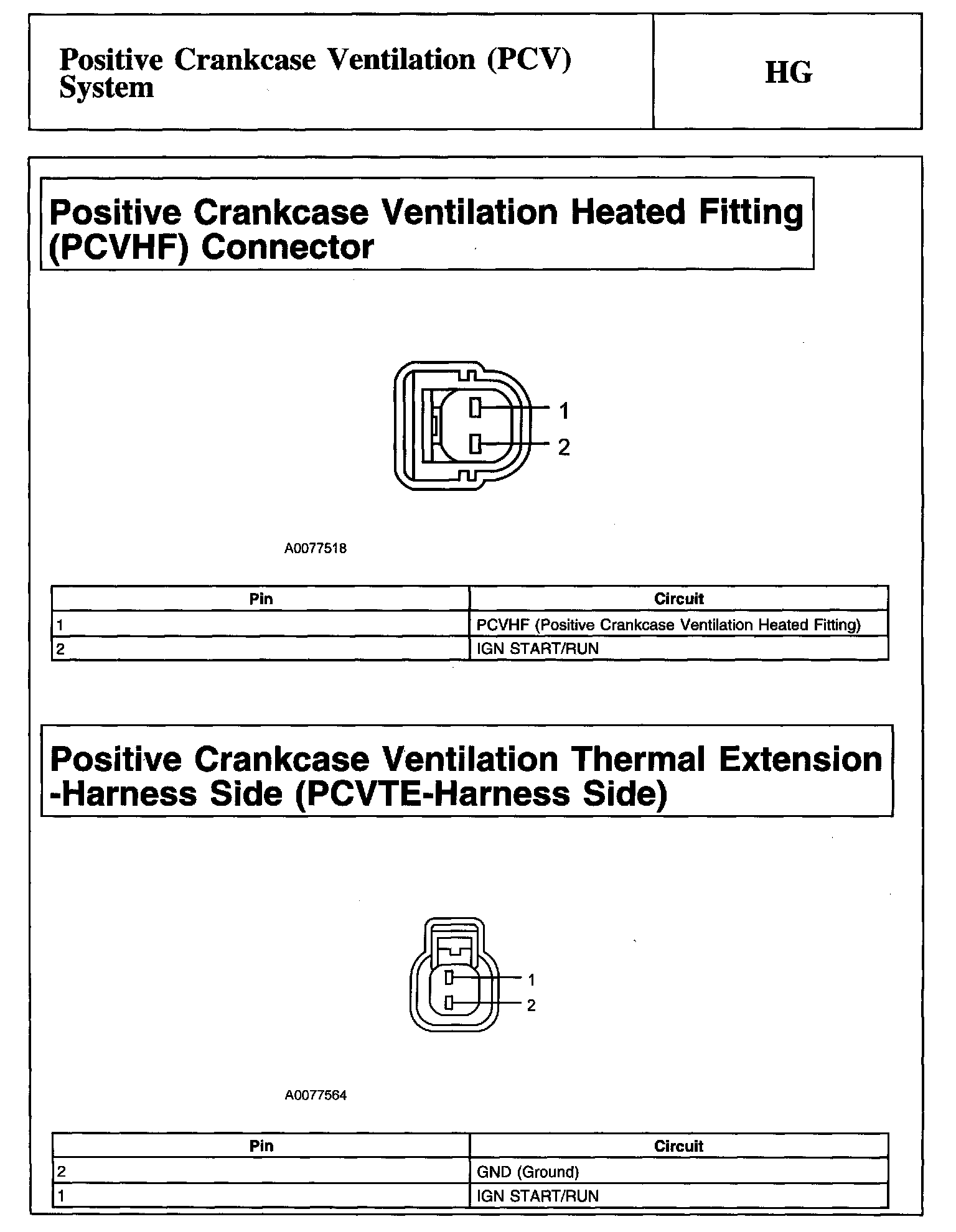

Positive Crankcase Ventilation Heated Fitting (PCVHF) Connector And Positive Crankcase Ventilation Thermal Extension-Harness Side (PCVTE-Harness Side):

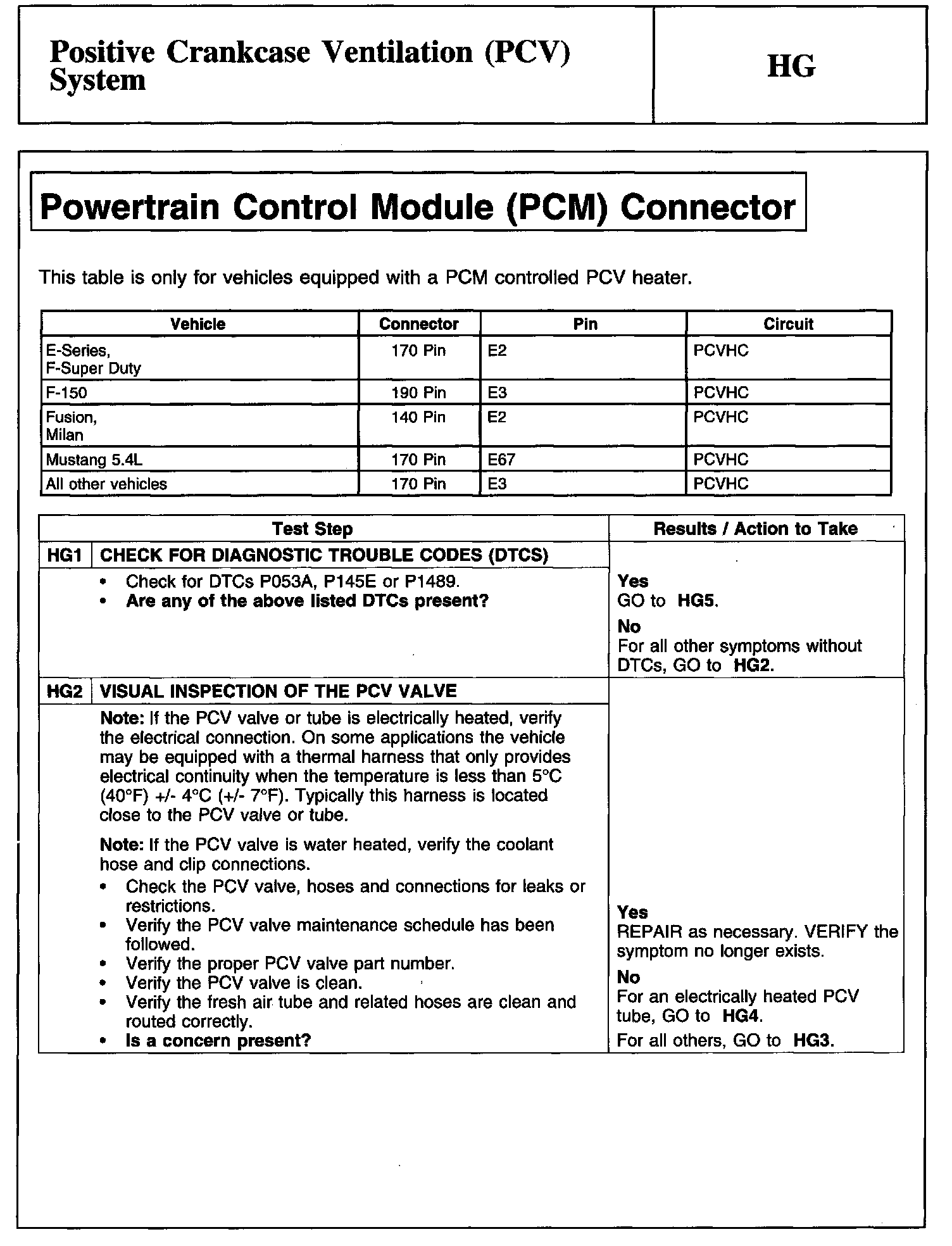

HG1-HG2:

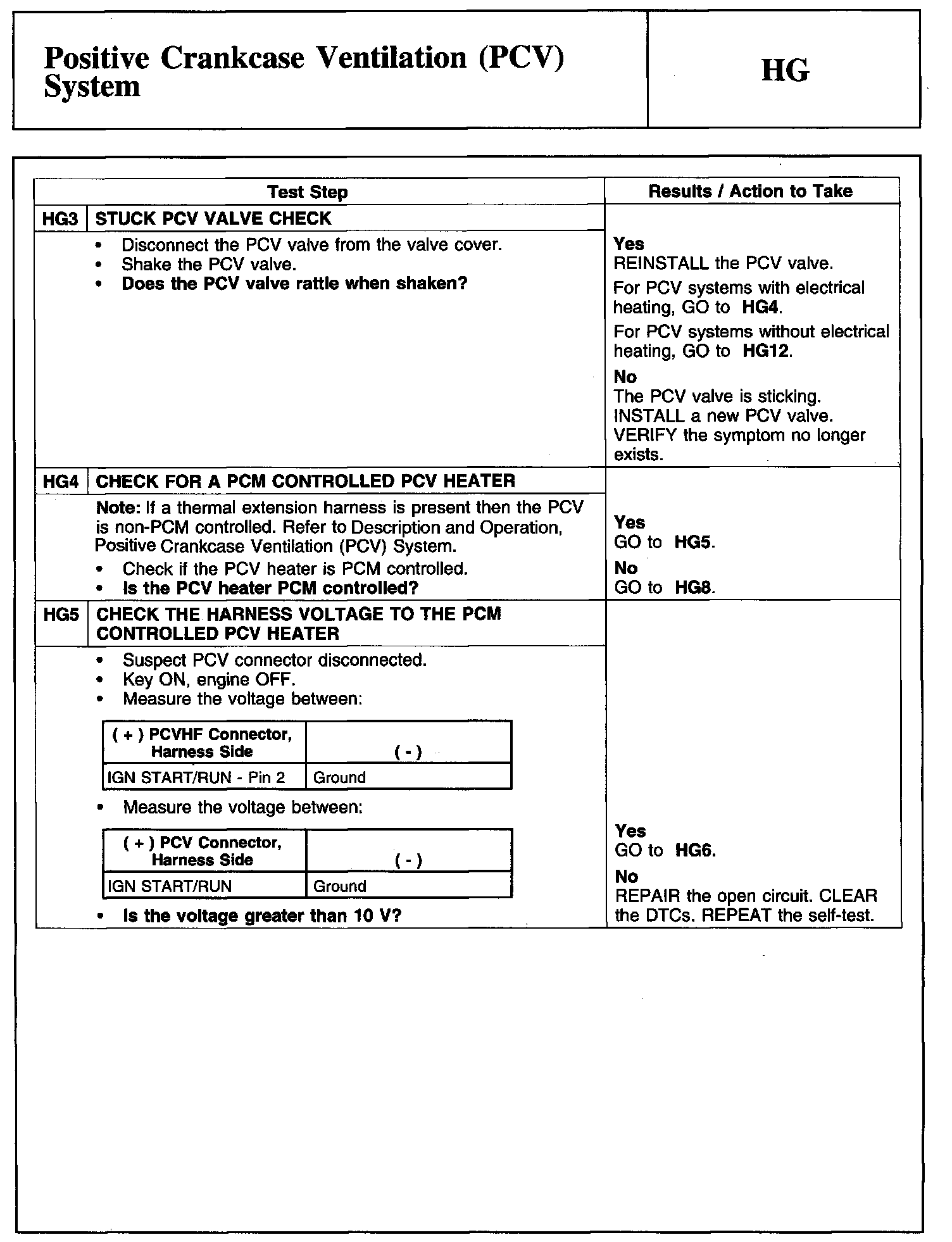

HG3-HG5:

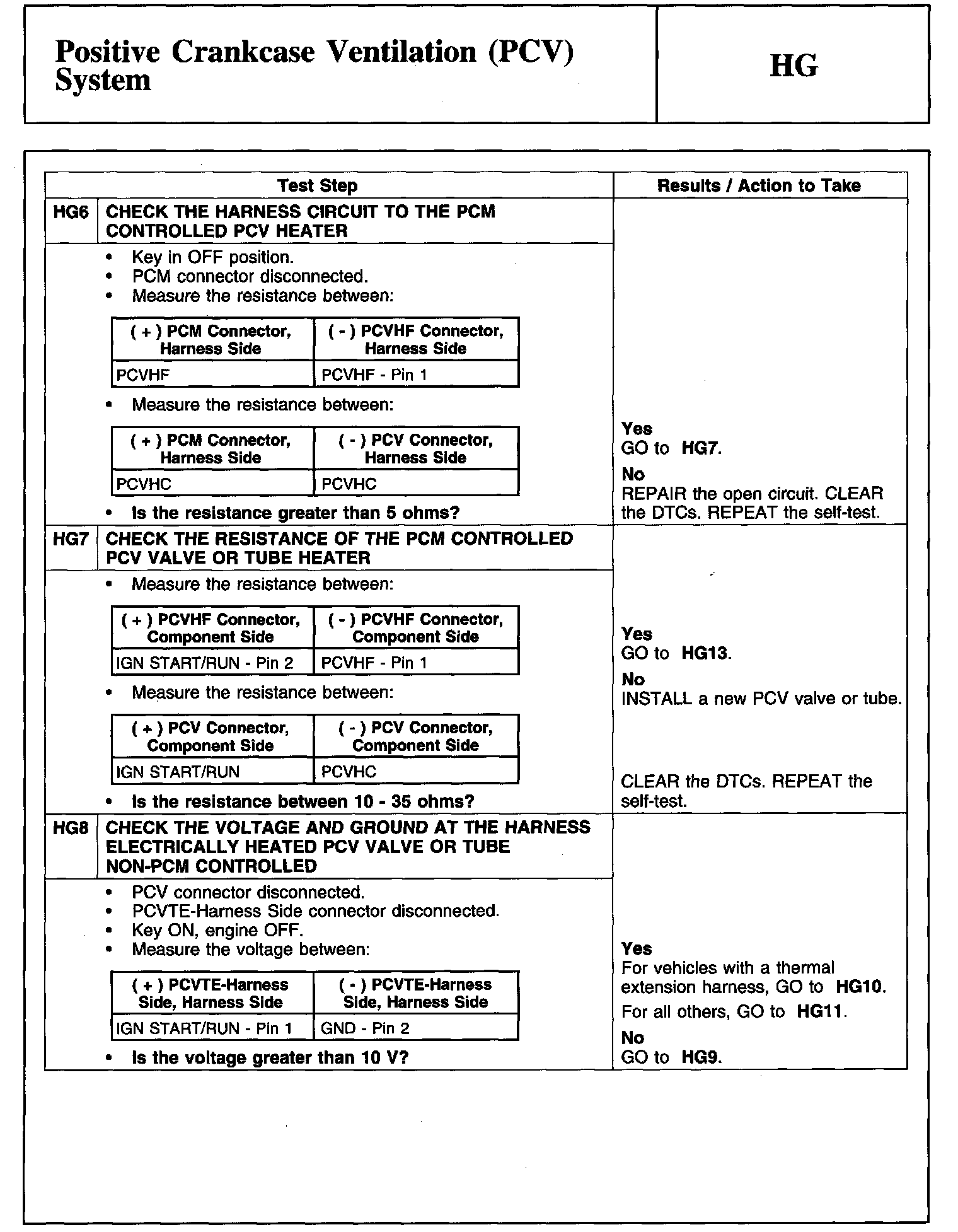

HG6-HG8:

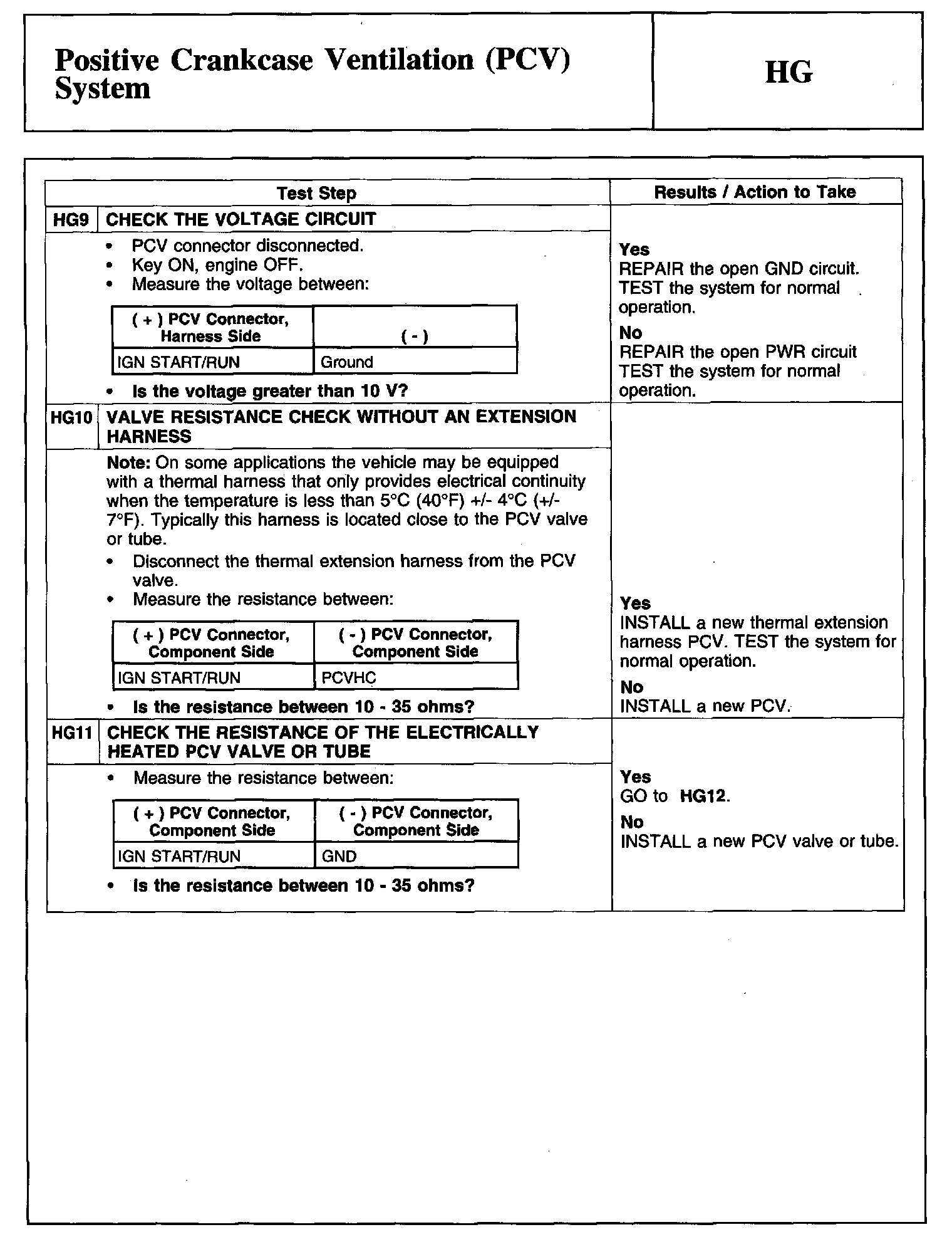

HG9-HG11:

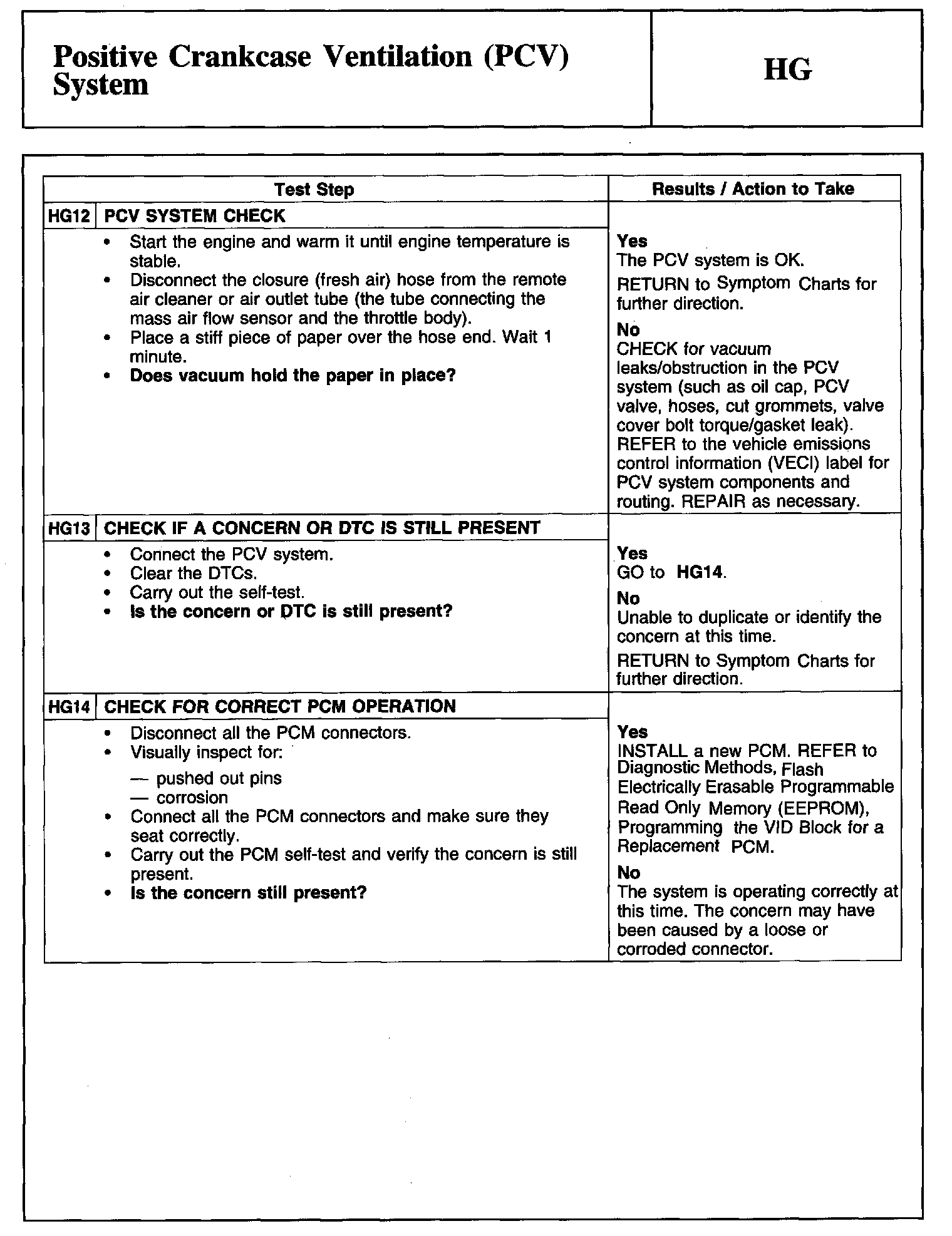

HG12-HG14:
