Center Mounted Brake Lamp: Service and Repair

HIGH MOUNTED STOPLAMP

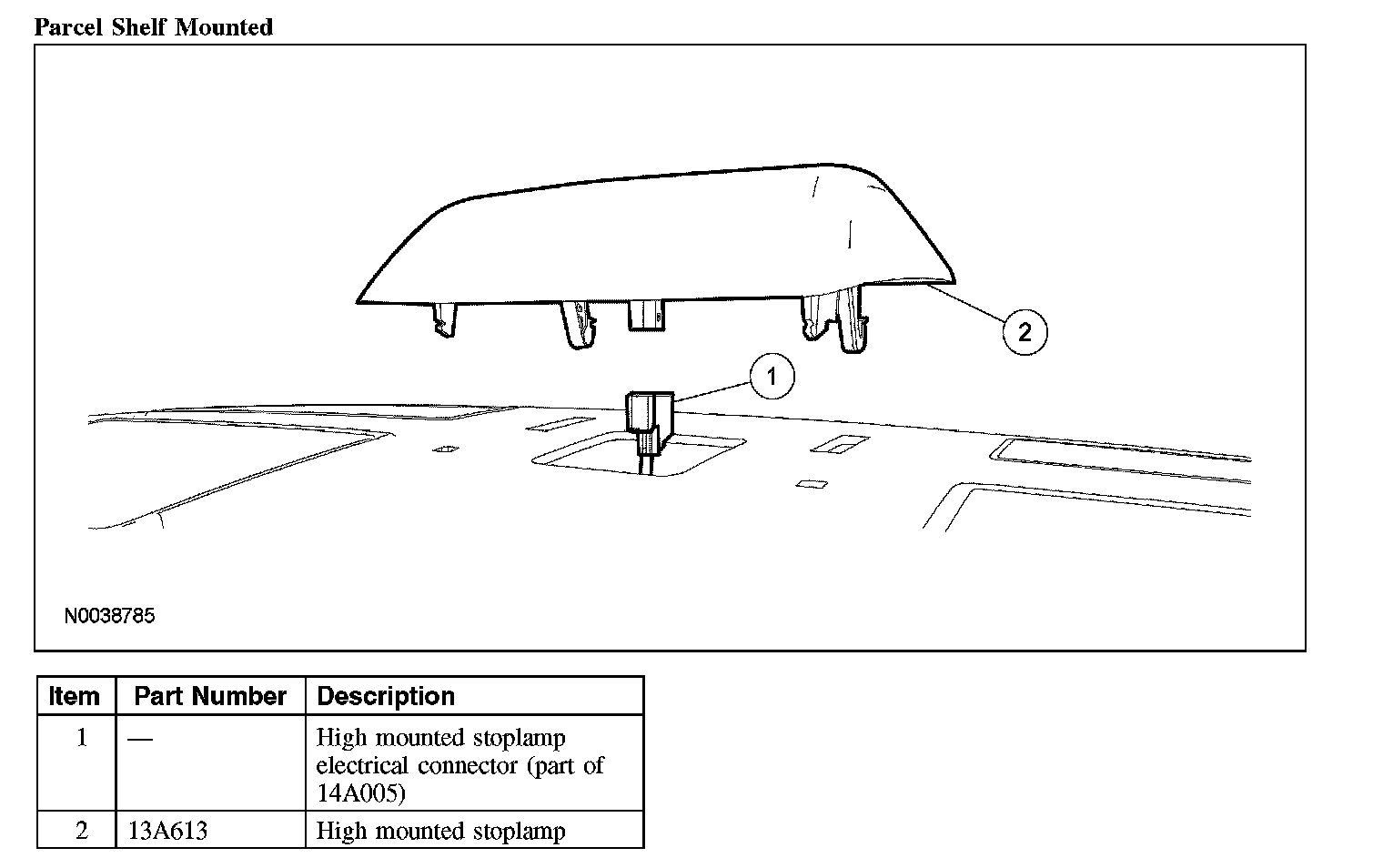

Parcel Shelf Mounted:

Spoiler Mounted:

Removal and Installation

Parcel shelf mounted
1. Disconnect the high mounted stoplamp electrical connector from within the luggage compartment.
2. Push the high mounted stoplamp rearward to disengage the forward tabs and remove the high mounted stoplamp.

Spoiler mounted
3. Remove the spoiler.
4. Remove the 2 screws and the high mounted stoplamp.

All vehicles
5. To install, reverse the removal procedure.
