Pinpoint Tests

PINPOINT TEST A: THE CLOCK OPERATION IS ERRATIC/INOPERATIVE

Normal Operation
The clock receives battery voltage from the smart junction box (SJB) through circuit SBP07 (WH/RD). Ground for the clock is supplied through circuit GD116 (BK/VT).

This pinpoint test is intended to diagnose the following:
- Fuse
- Wiring, terminals or connectors
- Clock

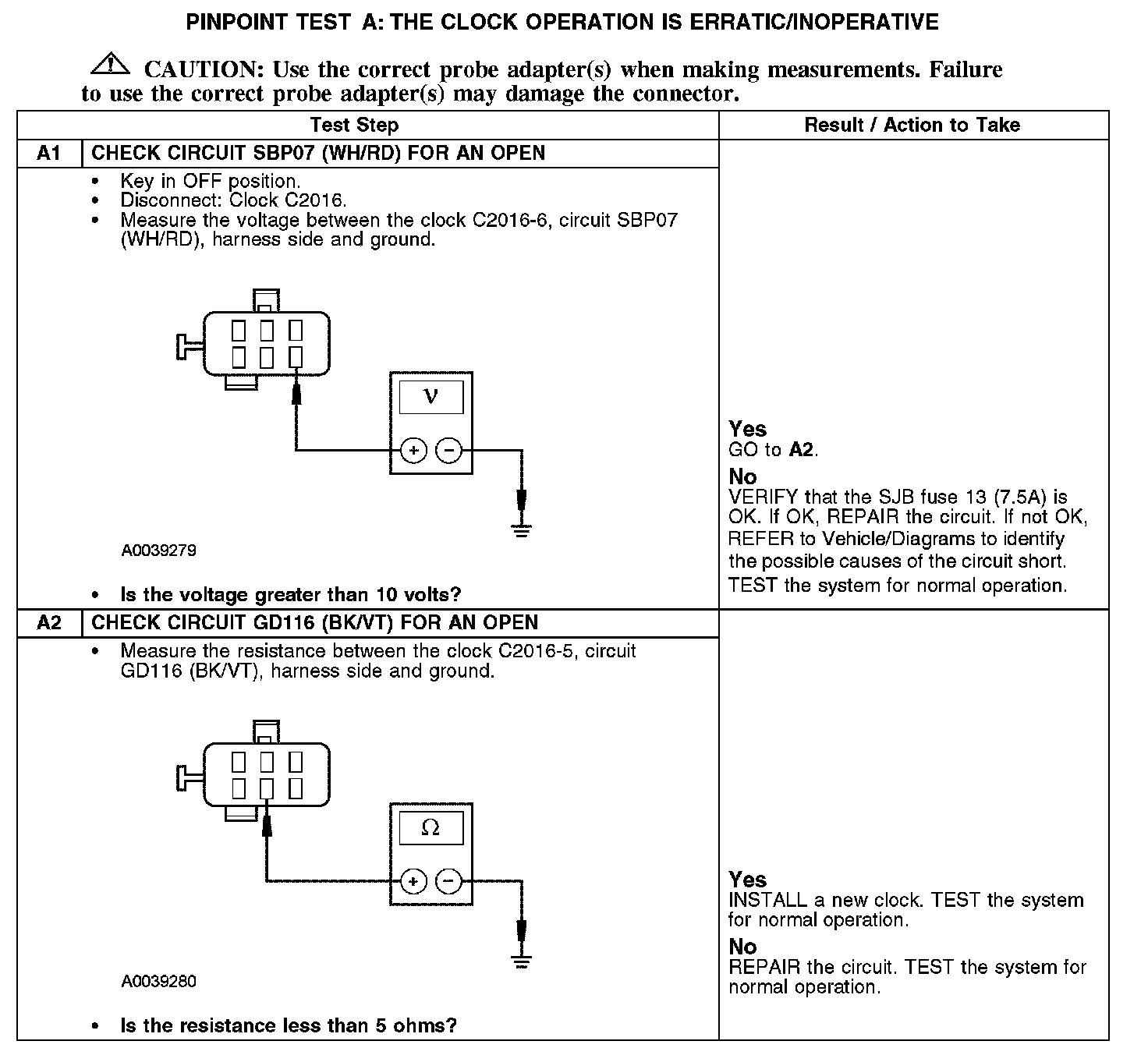

A1-A2:
