Symptom Chart - Climate Control System
Symptom Chart - Climate Control System

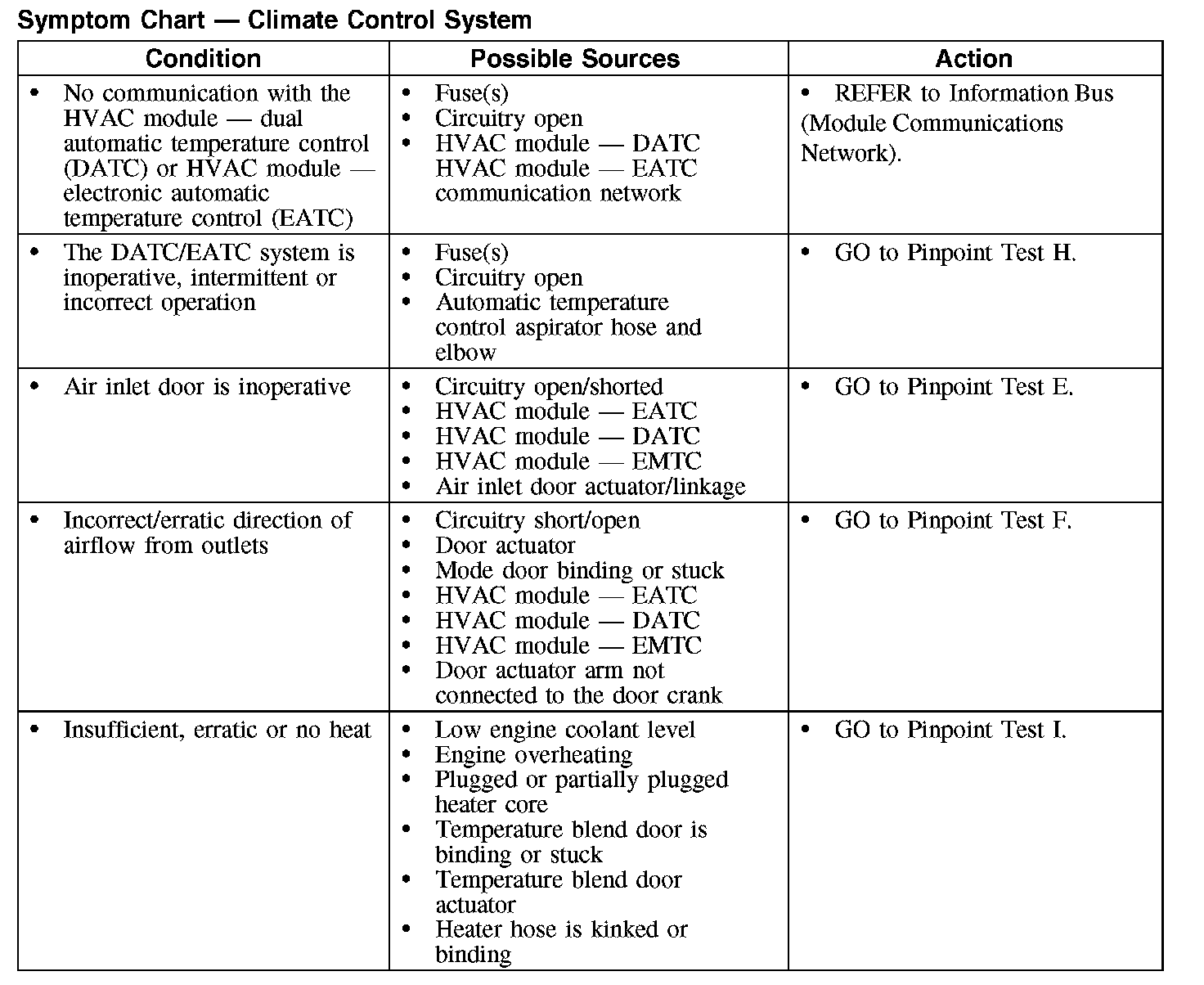

Symptom Chart - Climate Control System (Part 1):

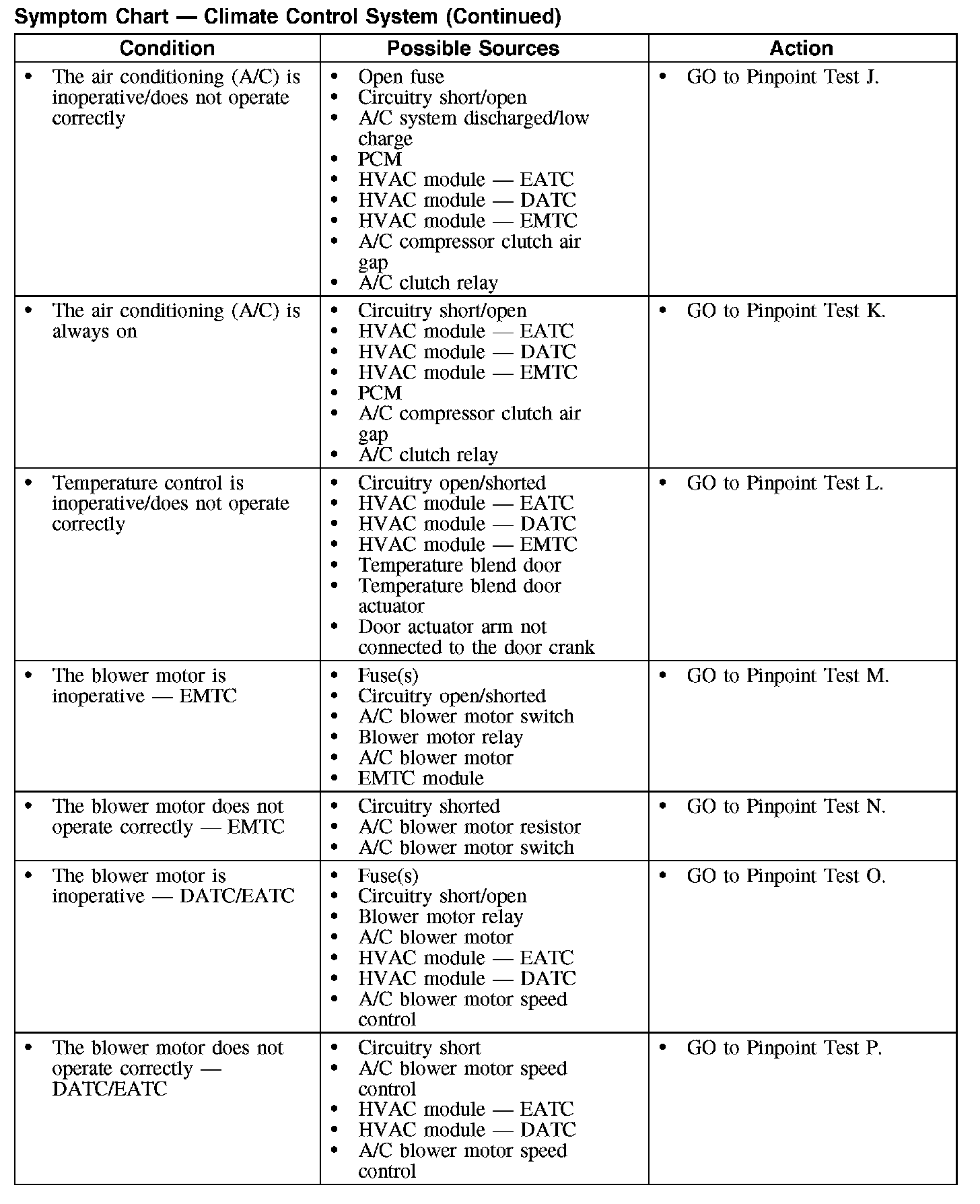

Symptom Chart - Climate Control System (Part 2):

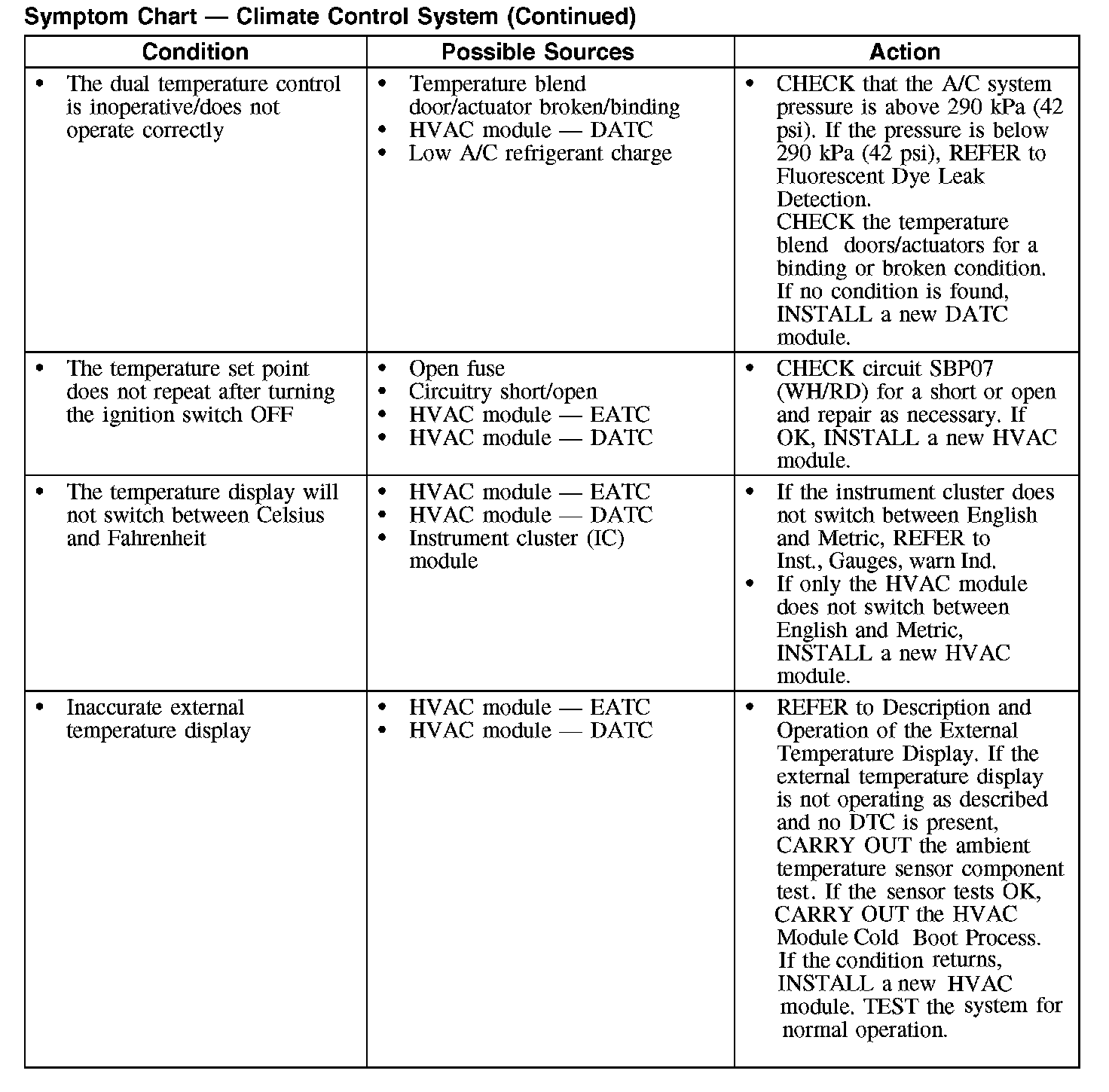

Symptom Chart - Climate Control System (Part 3):
