Upper Intake Manifold

Upper Intake Manifold

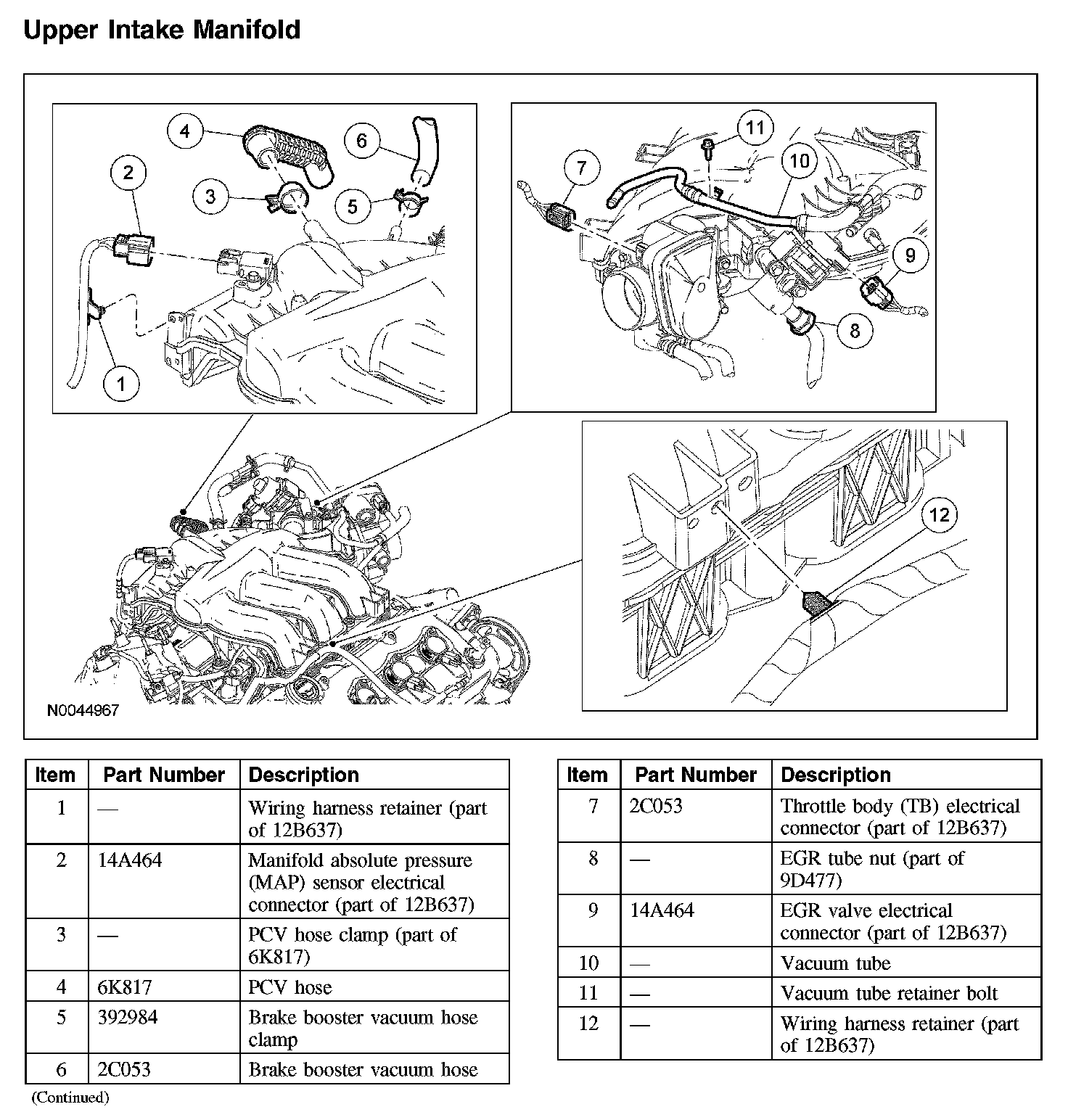

Upper Intake Manifold (Part 1):

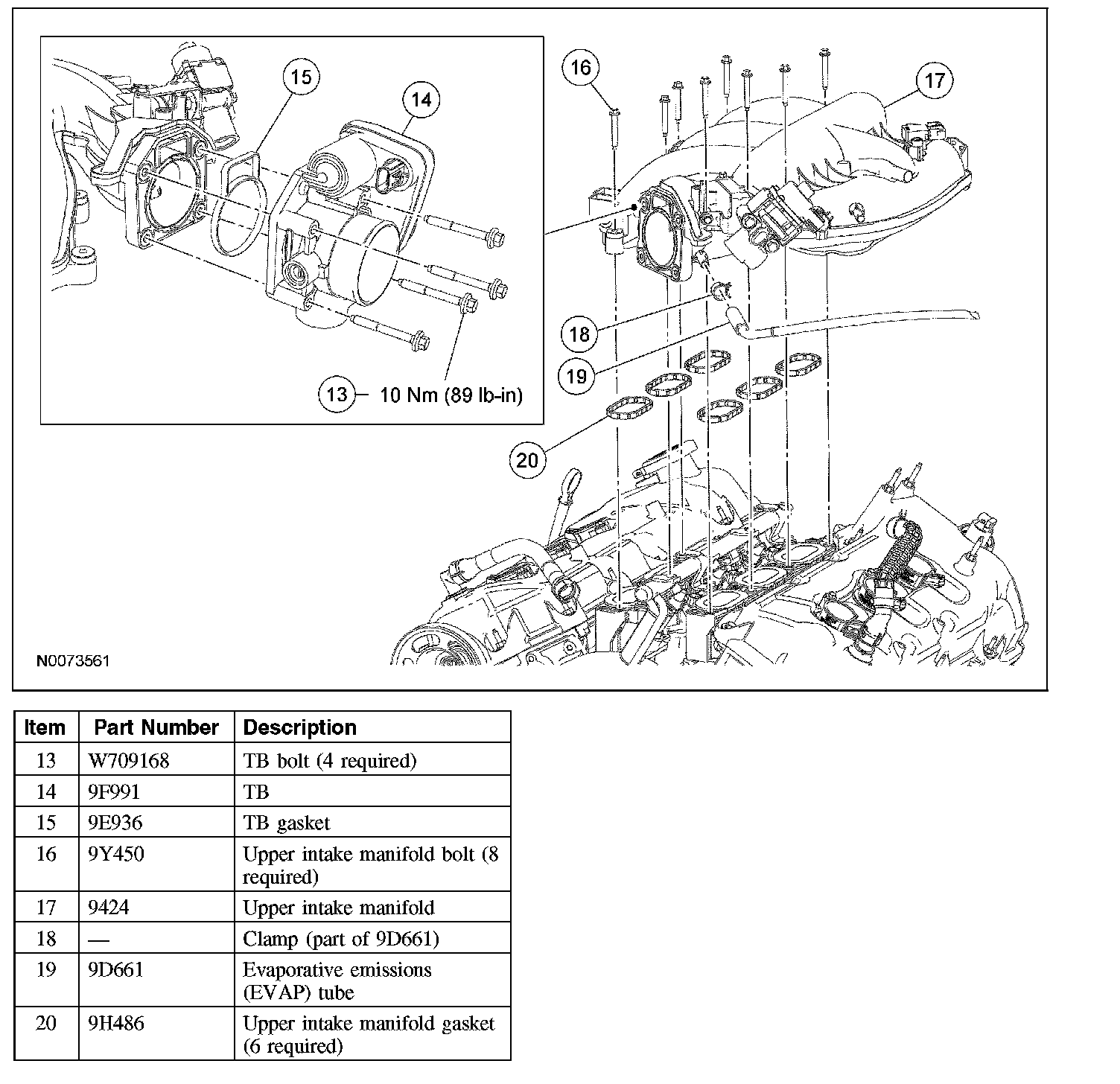

Upper Intake Manifold (Part 2):

Removal
1. Remove the air cleaner outlet pipe.
2. Disconnect the throttle body (TB) electrical connector.
3. Remove the 4 bolts and position the TB aside.
^ Discard the gasket.
4. Disconnect the evaporative emissions (EVAP) tube from the intake manifold.
5. Remove the vacuum tube clamp bolt.
6. Disconnect the vacuum tube from the intake manifold.
7. Disconnect the PCV tube from the intake manifold.
8. Disconnect the EGR valve electrical connector.
9. Loosen the EGR tube-to-EGR valve nut.
10. Disconnect the manifold absolute pressure (MAP) sensor electrical connector and the pin-type retainer.
11. Detach the wiring harness retainer from the front of the upper intake manifold.
12. Remove the 8 bolts and remove the upper intake manifold.
^ Remove and discard the gaskets.

Installation
1. Clean and inspect all of the sealing surfaces of the upper intake manifold.

2. NOTE: Install new upper intake manifold gaskets.

Install the upper intake manifold, gaskets and the 8 bolts.
^ Tighten in the sequence shown to 10 Nm (89 lb-inch).





3. Attach the wiring harness retainer to the front of the upper intake manifold.
4. Connect the MAP sensor electrical connector and the pin-type retainer.
5. Install the EGR tube-to-EGR valve nut.
^ Tighten to 40 Nm (30 lb-ft).
6. Connect the EGR valve electrical connector.
7. Connect the PCV tube to the intake manifold.
8. Connect the vacuum tube to the intake manifold.
9. Install the vacuum tube clamp bolt.
^ Tighten to 10 Nm (89 lb-inch).
10. Connect the EVAP tube to the intake manifold.

11. NOTE: Install a new TB gasket.

Install the gasket, TB and 4 bolts.
^ Tighten to 10 Nm (89 lb-inch).
12. Connect the TB electrical connector.
13. Install the air cleaner outlet pipe.
