Removal and Replacement

Engine Mount

Special Tool(s):

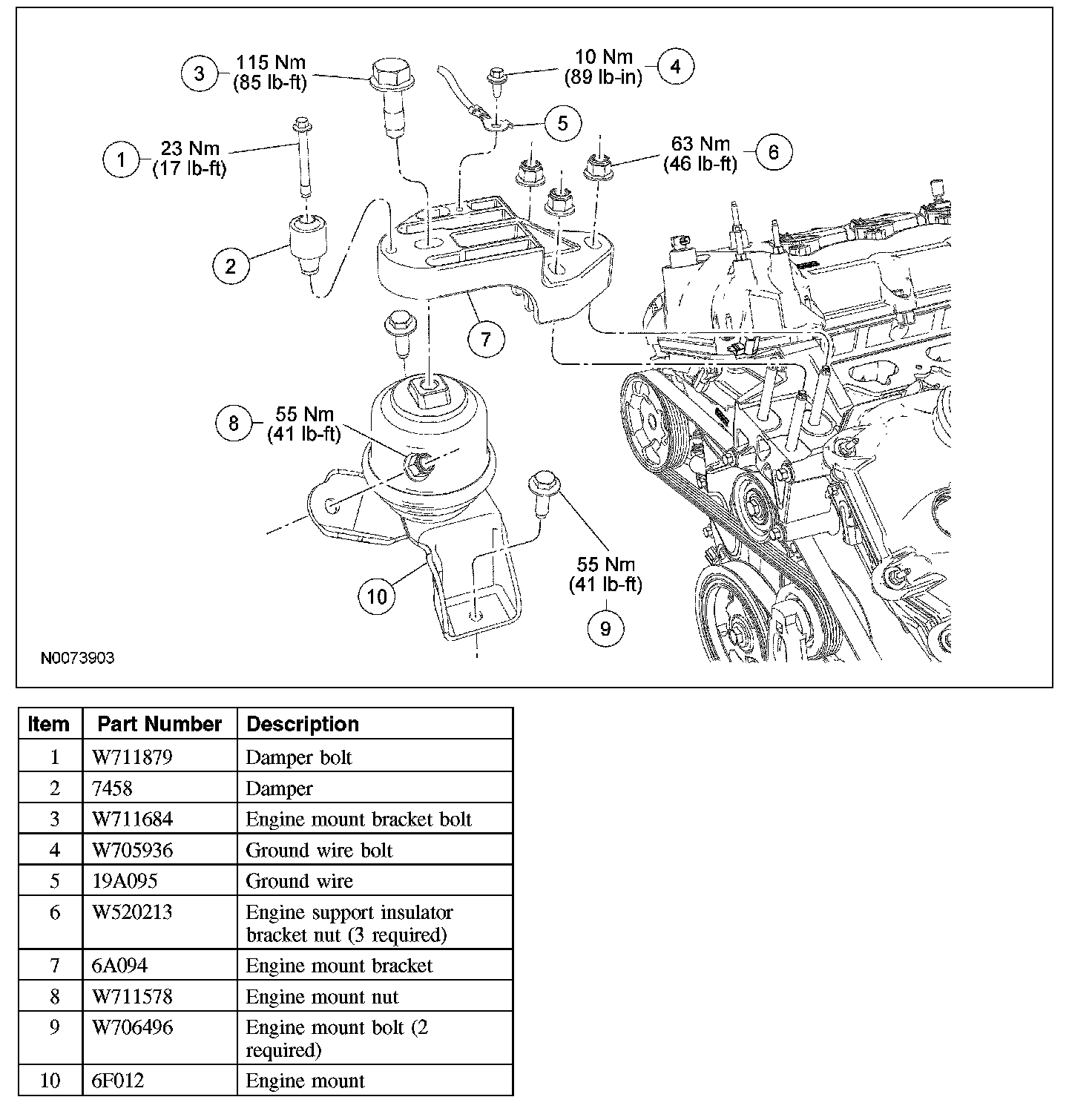

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Release the fuel system pressure.
3. Remove the engine coolant degas bottle.
4. Remove the lower intake manifold.
5. Remove the bolt and position aside the ground wire.
^ To install, tighten to 10 Nm (89 lb-inch).
6. Remove the bolt and damper.
^ To install, tighten to 23 Nm (17 lb-ft).
7. Remove the engine mount bracket bolt.
^ To install, tighten to 115 Nm (85 lb-ft).

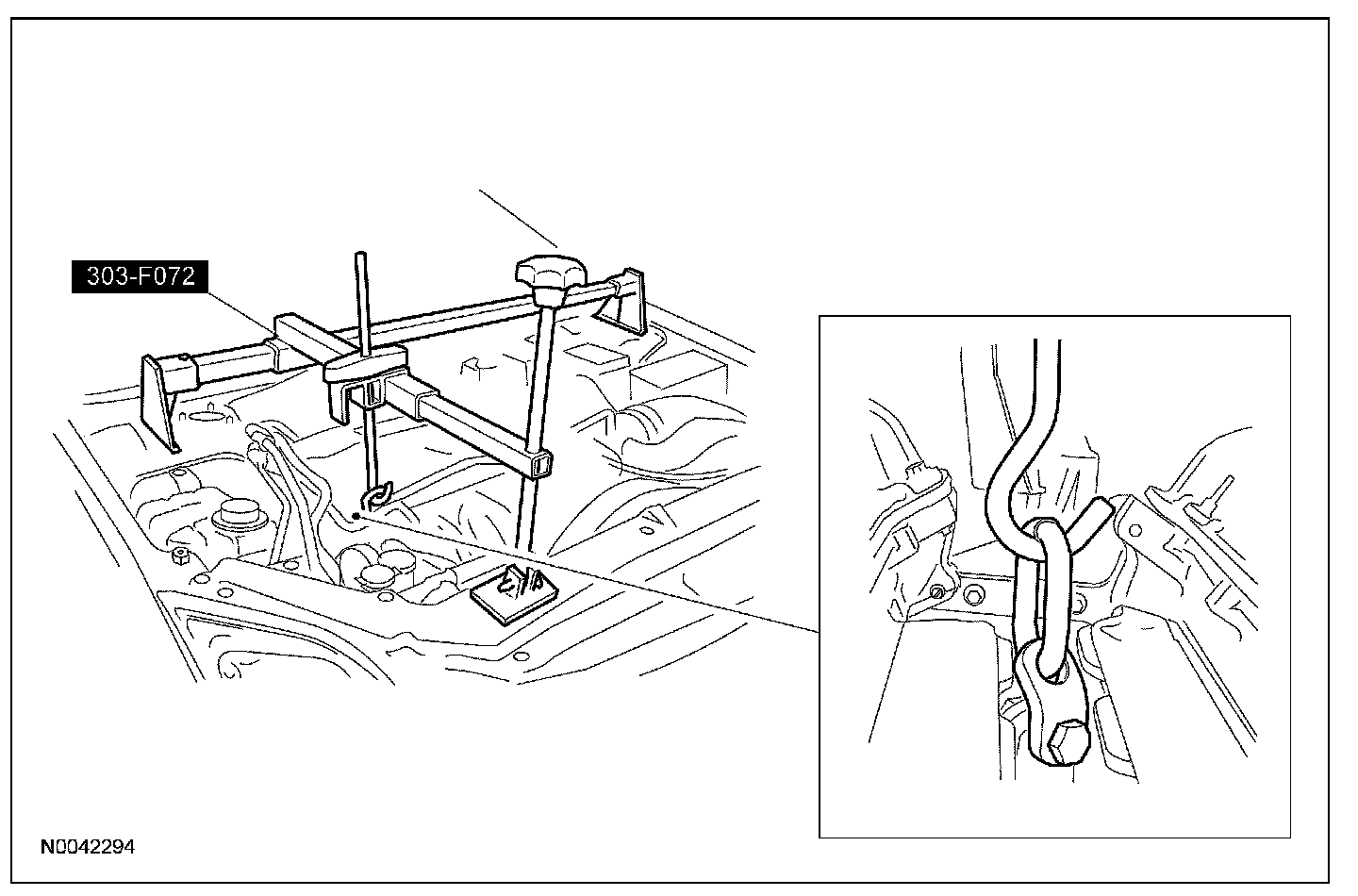

8. Install the special tools.
1 Position the 2 universal adapter brackets on top of the cylinder block.
2 Install 2 M8 x 1.25 x 36 mm (1.41 inch) bolts and tighten to 10 Nm (89 lb-inch).
3 Position the universal lifting bracket onto the 2 universal adapter brackets.
4 Fasten the universal lifting bracket to the 2 universal adapter brackets with a suitable nut and bolt.





9. Install the special tool and raise the engine 25 mm (0.98 inch).





10. Remove the 3 engine mount bracket nuts.
^ To install, tighten to 63 Nm (46 lb-ft).
11. Remove the nut, 2 bolts and the engine mount.
^ To install, tighten to 55 Nm (41 lb-ft).

12. NOTE: If the engine mount bracket is to be removed, the engine must be lowered to avoid contact between the A/C tubes and the engine mount bracket.

Use the special tool to lower the engine 25 mm (0.98 inch).
^ Remove the engine mount bracket.
13. To install, reverse the removal procedure.
