Thermostat Housing: Service and Repair

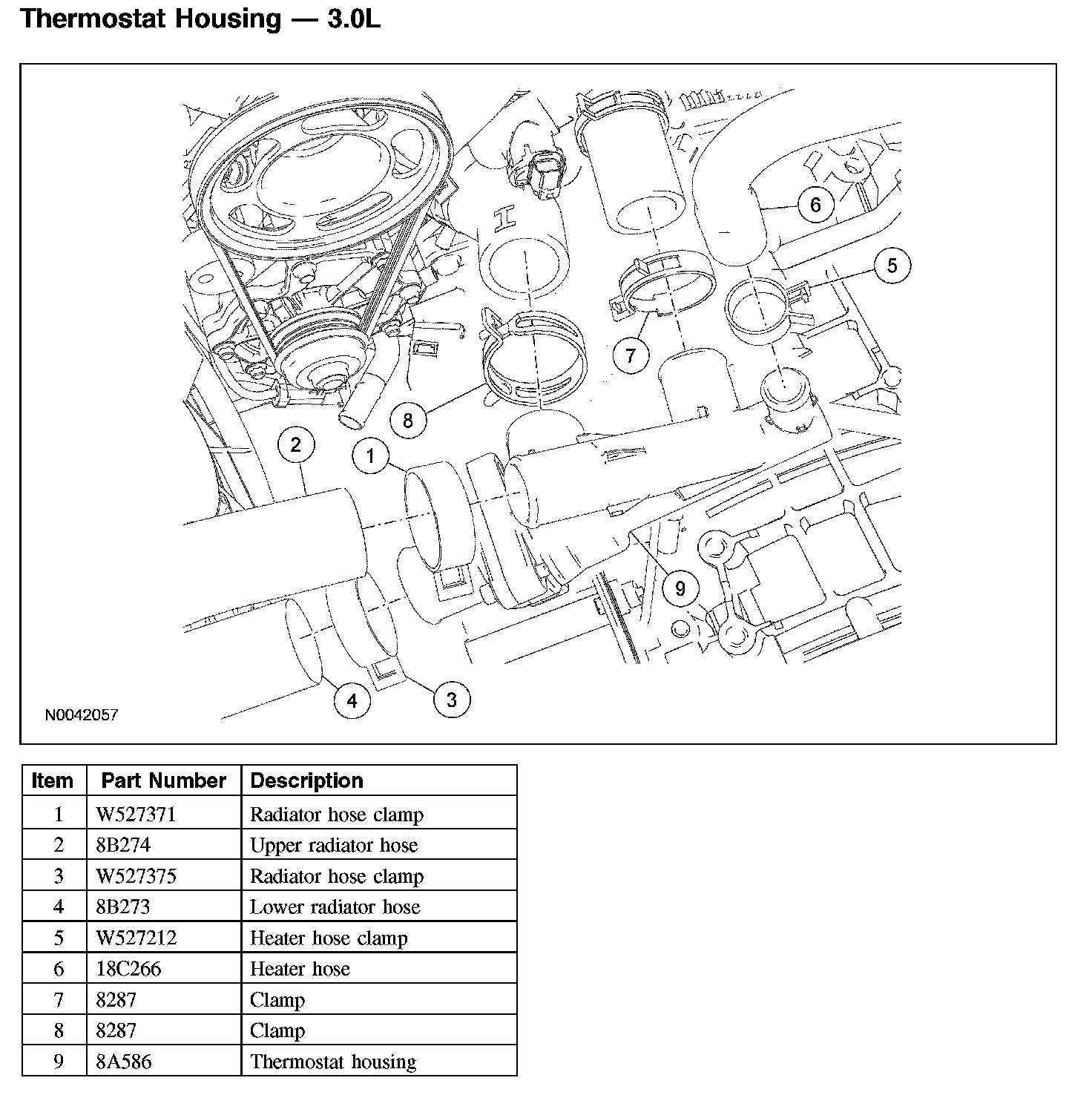

Thermostat Housing - 3.0L

Thermostat Housing - 3.0L:

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Drain the cooling system.
3. Remove the air cleaner outlet pipe.
4. Disconnect the upper radiator hose from the thermostat housing and position aside.
5. Disconnect the lower radiator hose from the thermostat housing and position aside.
6. Disconnect the heater hose from the thermostat housing and position aside.
7. Reposition the 2 thermostat housing-to-engine hose clamps.
^ Remove the thermostat housing.
8. To install, reverse the removal procedure.
9. Fill and bleed the cooling system.
