Brake Caliper Anchor Plate Removal and Installation, Front

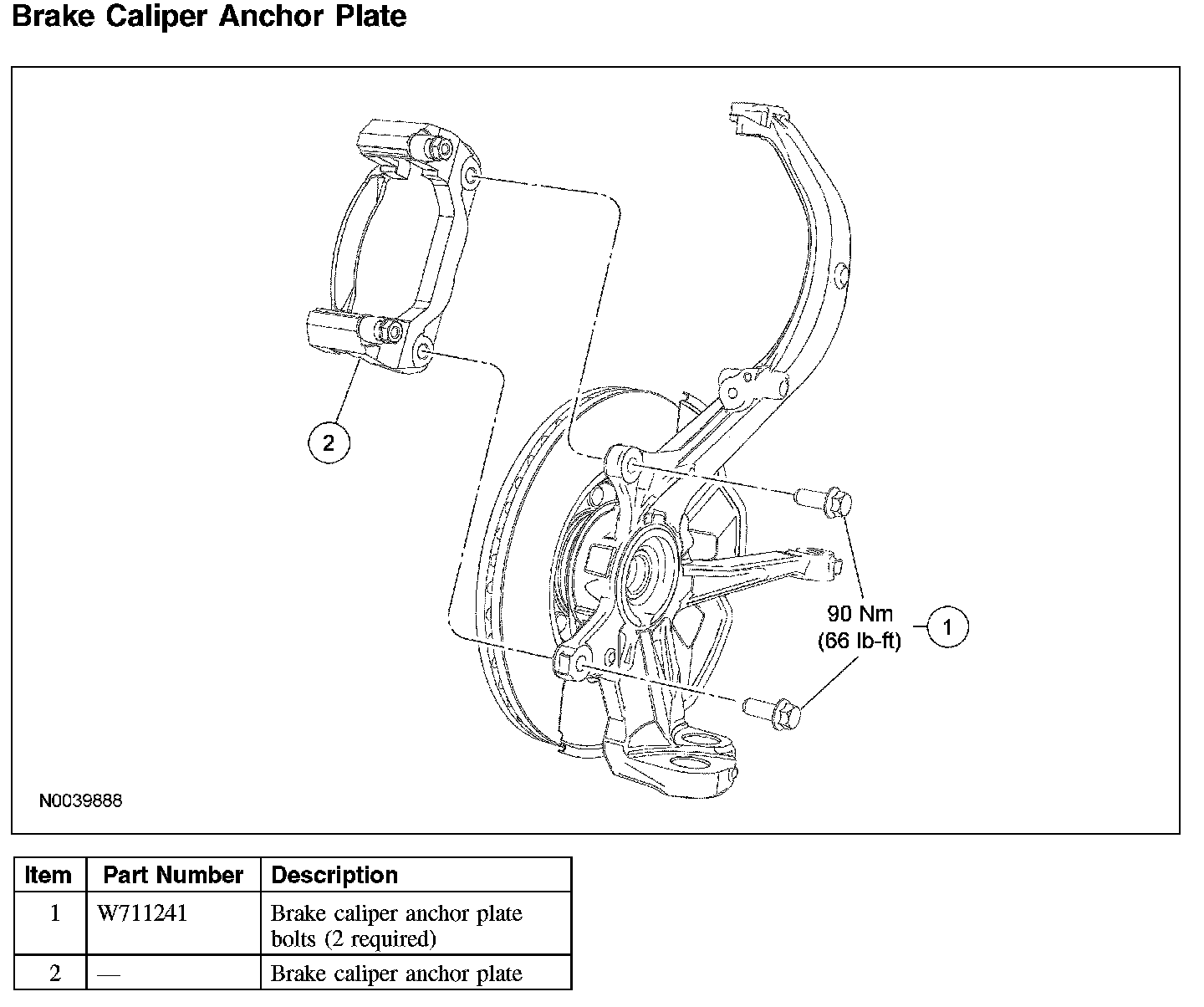

Brake Caliper Anchor Plate

Brake Caliper Anchor Plate:

Removal and Installation
1. Remove the brake.
2. Remove the 2 brake caliper anchor plate bolts.
^ To install, tighten to 90 Nm (66 lb-ft).
3. Remove the brake caliper anchor plate.
4. To install, reverse the removal procedure.
