Symptom Chart - Noise, Vibration and Harshness (NVH)

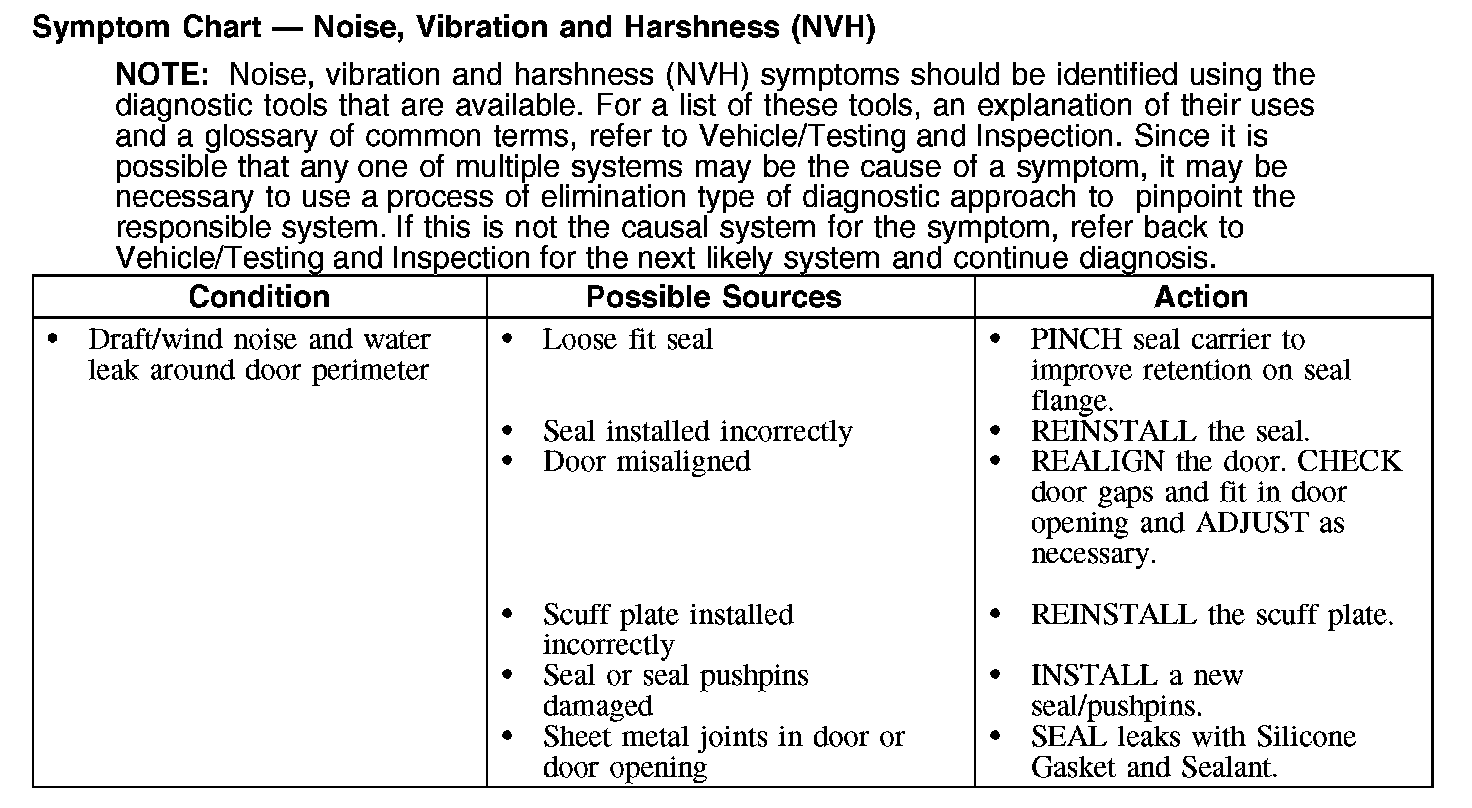

Symptom Chart - Noise, Vibration and Harshness (NVH) (Part 1):

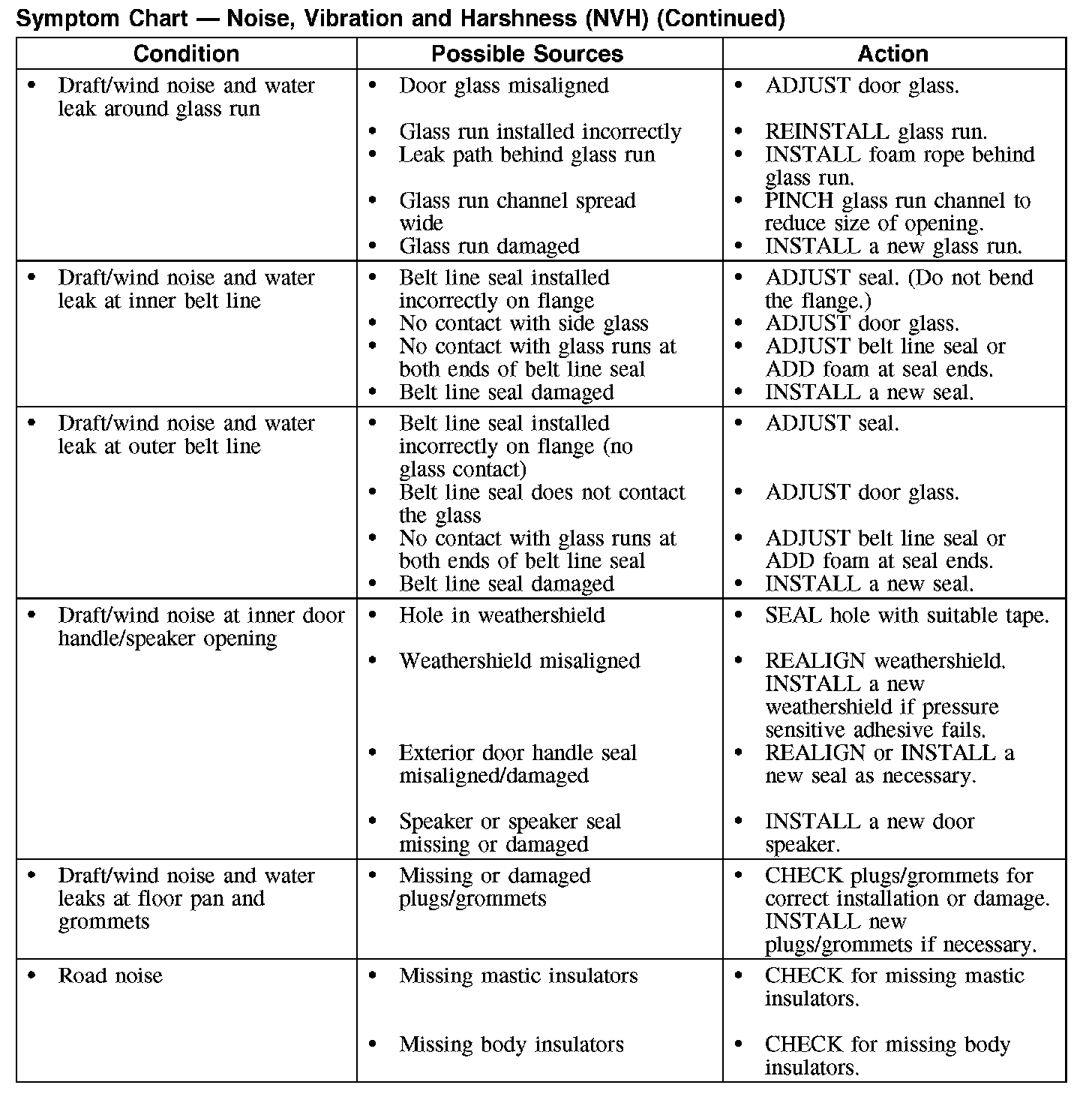

Symptom Chart - Noise, Vibration and Harshness (NVH) (Part 2):

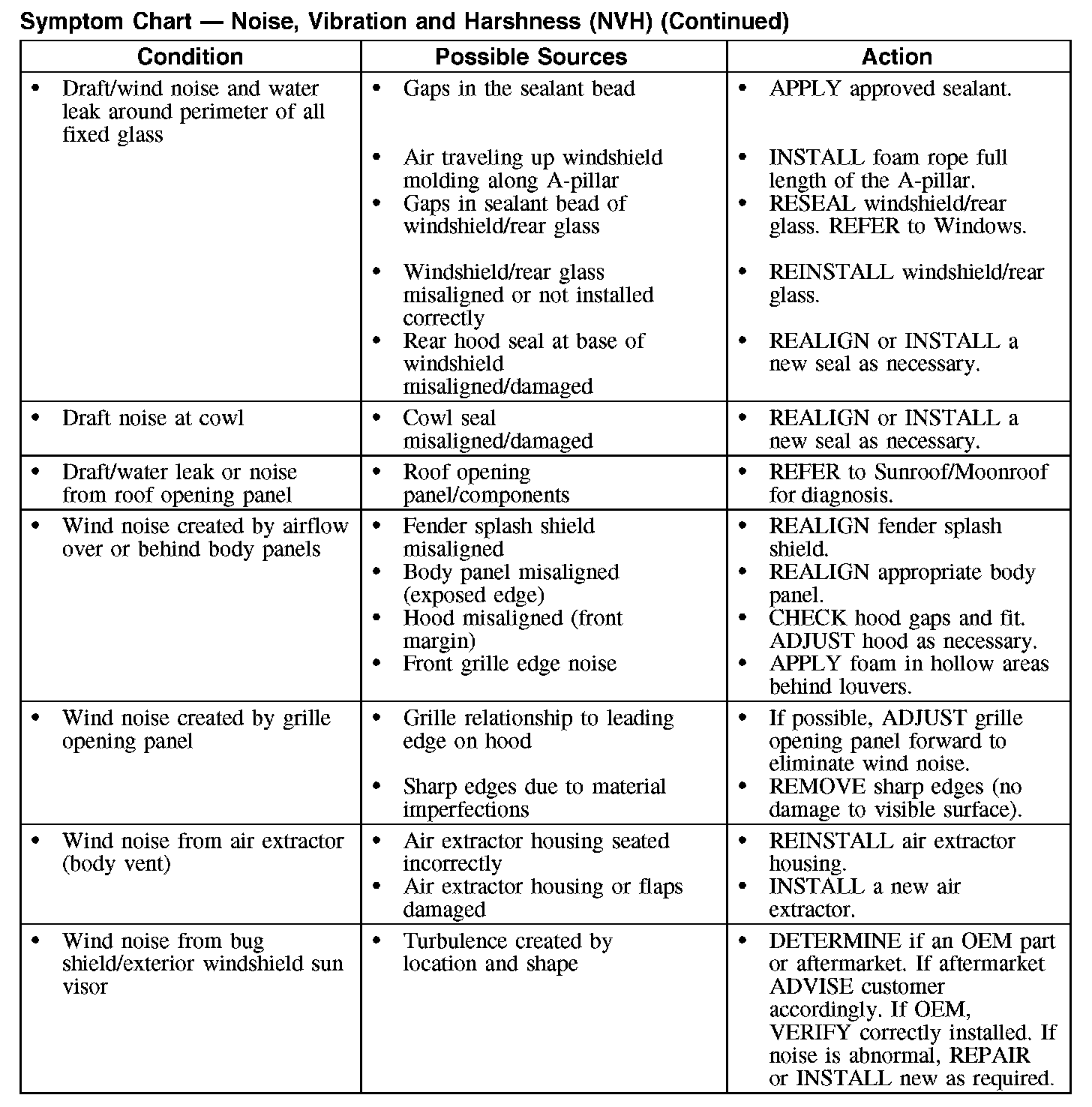

Symptom Chart - Noise, Vibration and Harshness (NVH) (Part 3):

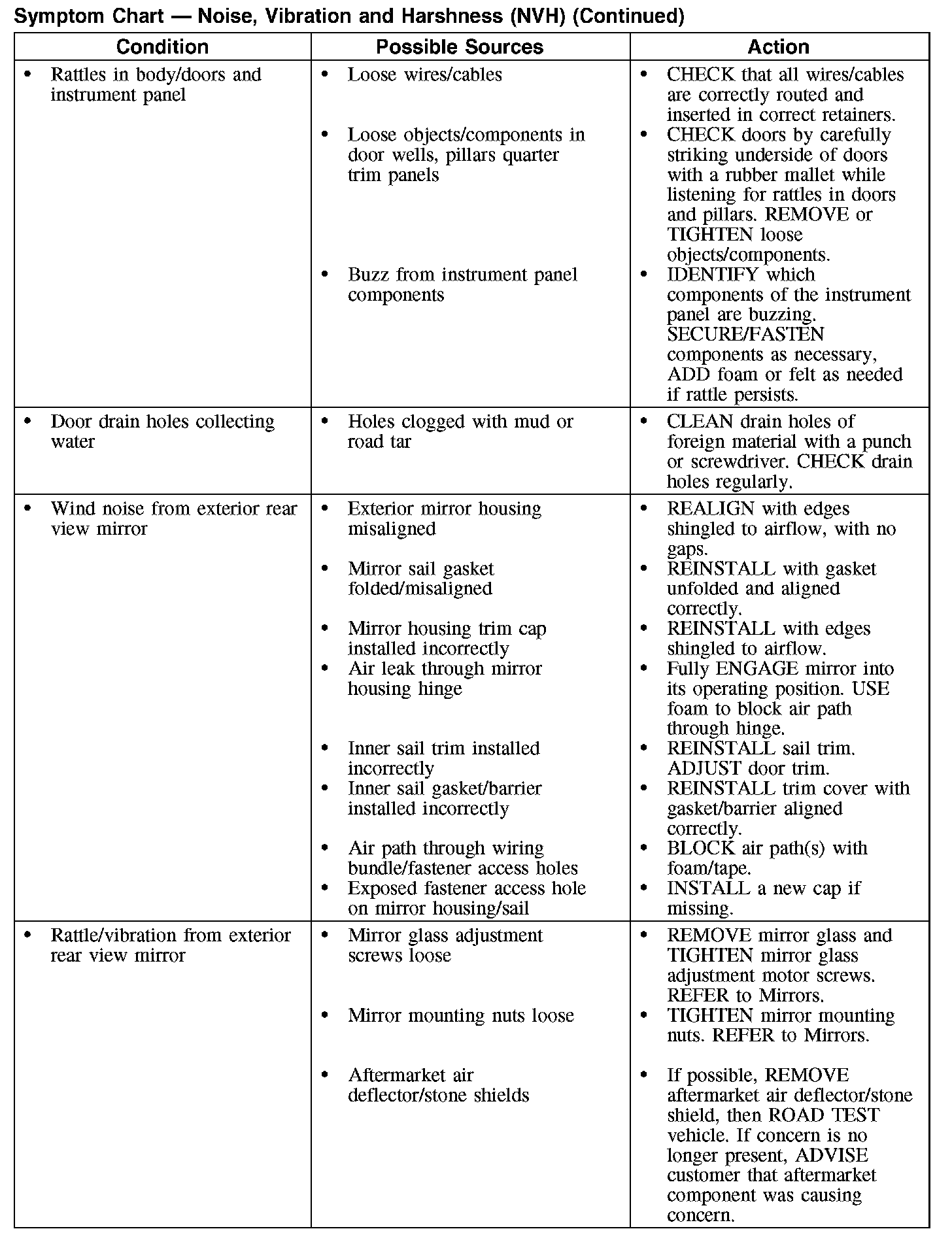

Symptom Chart - Noise, Vibration and Harshness (NVH) (Part 4):
