Seat Cushion Thermo-Electric Device

SEAT CUSHION THERMO-ELECTRIC DEVICE

Exploded View

Front Seat Backrest without Fold-Flat (Part 1):

Front Seat Backrest without Fold-Flat (Part 2):

Front Seat Backrest with Fold-Flat (Part 1):

Front Seat Backrest with Fold-Flat (Part 2):

Driver Seat Cushion (Part 1):

Driver Seat Cushion (Part 2):

Passenger Seat Cushion (Part 1):

Passenger Seat Cushion (Part 2):

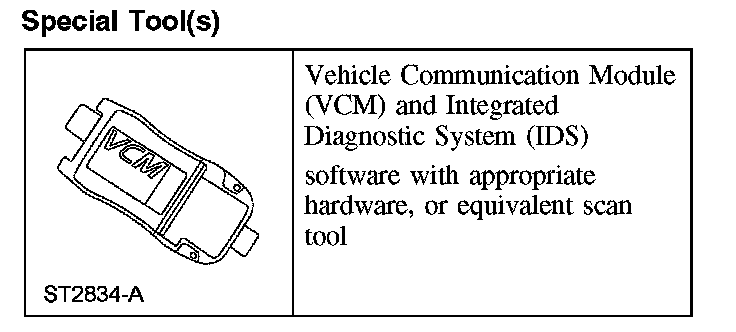

Special Tool(s)

Special Tool(s):

Removal and Installation

NOTE:
- The air bag warning lamp illuminates when the restraints control module (RCM) fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
- The cushion thermo-electric device (TED) filter is detachable from the TED assembly housing from underneath the seat cushion.

All seats
1. Remove the front seat.
- Fully raise the seat before depowering the SRS to aid cushion TED assembly access.

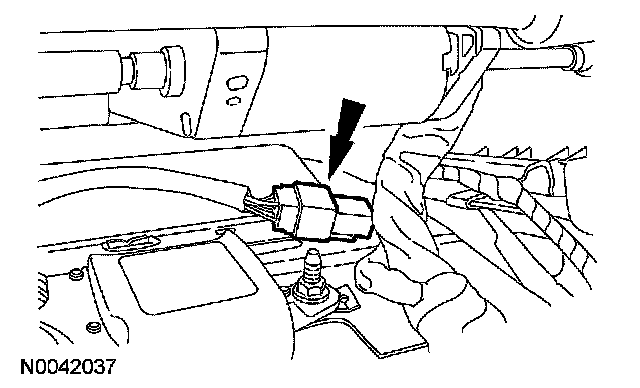

2. Disconnect the TED electrical connector.







3. CAUTION: Inspect the climate controlled seat cushion manifold and foam pad for crush or obstruction before installation and repair as needed. Failure to do so may cause the climate control to work inefficiently.

Remove the 3 nuts and TED assembly from the cushion frame.
- To install, tighten to 6 Nm (53 lb-in).
- To install, check for correct fit between the cushion manifold, foam pad and TED assembly, to make sure there is no airflow obstruction, cushion crush or foreign material.

4. To install, reverse the removal procedure.
5. Install the front seat and repower the SRS. If a passenger seat has been serviced, do not prove out the SRS at this time.

Passenger seat
6. Carry out the Occupant Classification Sensor (OCS) System Zero Seat Weight Test.
