Seat Cushion Cover - Front

SEAT CUSHION COVER - FRONT

Exploded View

Front Seat Backrest without Fold-Flat (Part 1):

Front Seat Backrest without Fold-Flat (Part 2):

Front Seat Backrest with Fold-Flat (Part 1):

Front Seat Backrest with Fold-Flat (Part 2):

Driver Seat Cushion (Part 1):

Driver Seat Cushion (Part 2):

Passenger Seat Cushion (Part 1):

Passenger Seat Cushion (Part 2):

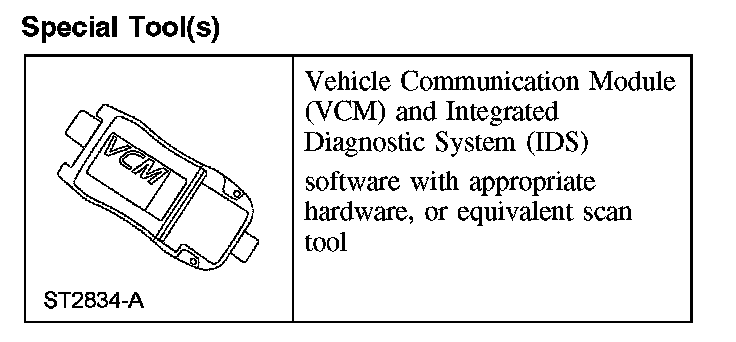

Special Tool(s)

Special Tool(s):

Removal and Installation

NOTE:
- The air bag warning lamp illuminates when the restraints control module (RCM) fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.

All seats
1. Remove the front seat.
2. Remove the front seat backrest.

3. NOTE: Trim cover J-clip configurations vary with seat option.

Release all the remaining J-clips attaching the trim cover to the cushion frame.

4. CAUTION: Use care when separating the seat cushion trim cover from the hook-and-loop strip, or the hook-and-loop strip can be torn from the cushion foam pad.

Release the hook-and-loop strips, remove the hog rings (if equipped), separate the cushion trim cover from the cushion foam pad and remove.

5. To install, reverse the removal procedure.
6. Install the front seat backrest.
7. Install the front seat and repower the SRS. If a passenger seat has been serviced, do not prove out the SRS at this time.

Passenger seat
8. Carry out the Occupant Classification Sensor (OCS) System Zero Seat Weight Test.
