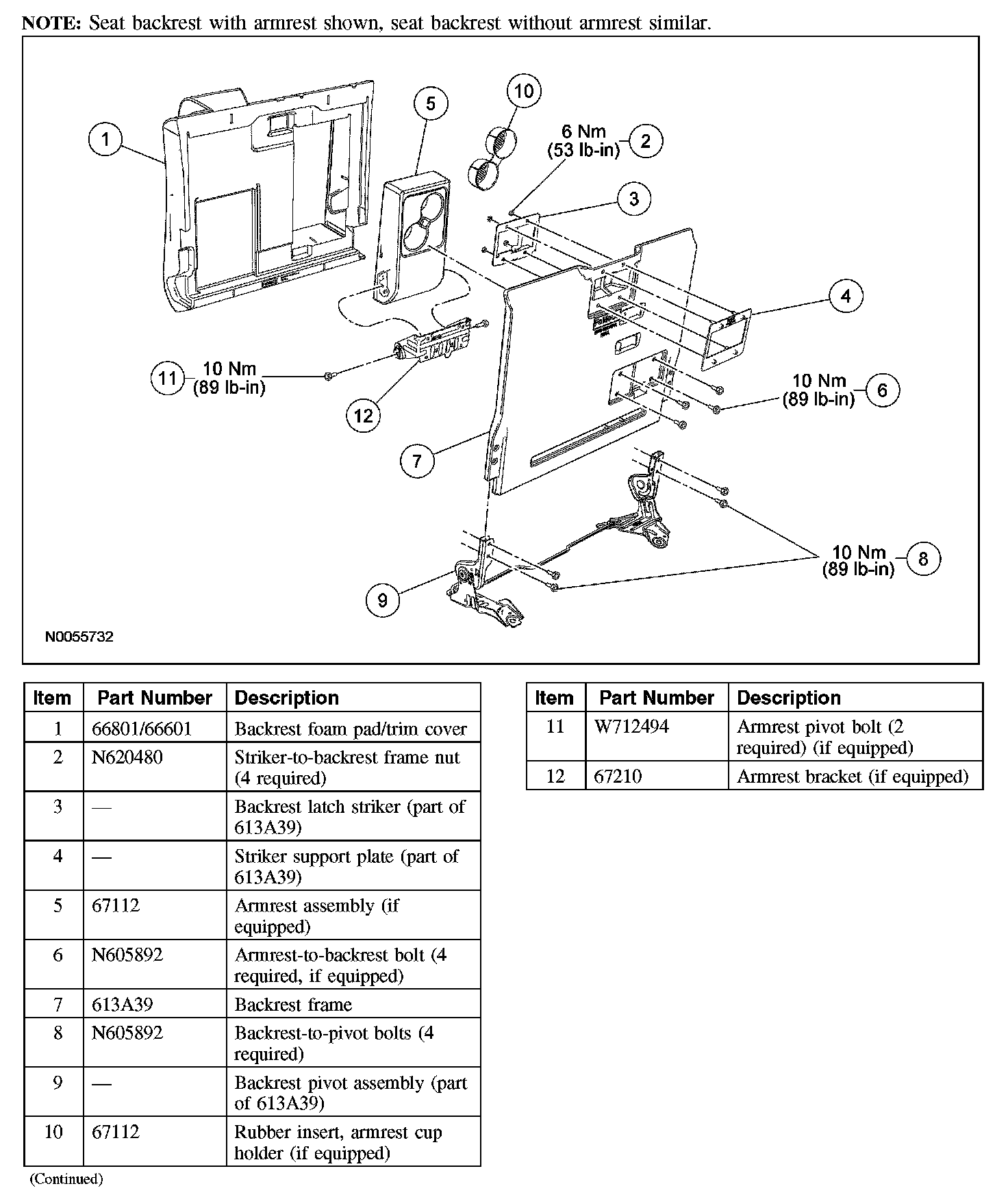

SEAT BACKREST - REAR, 60 PERCENT







Disassembly and Assembly

All seats
1. Remove the rear seat cushion.
2. Remove the 60 percent rear seat backrest.
3. Release the trim cover lower J-strip.

Seats equipped with armrest
4. Invert the trim cover enough to gain access to the armrest-to-backrest bolts.
5. Remove the 4 armrest-to-backrest bolts and support plate.
- For installation, adjust the armrest horizontally as needed for good fit.
- To install, tighten to 10 Nm (89 lb-in).

6. Separate the armrest assembly from the backrest and position aside.
- For assembly, align the armrest bracket locator tab to the backrest frame.

7. Release the 4 pin-type retainers, separate the armrest trim cover panel from the backrest and remove the armrest assembly.
- For a broken retainer, push the remaining end through and into the backrest frame and install a new pin-type retainer during assembly.







8. Remove the pin-type retainer from the backrest trim cover armrest pocket.

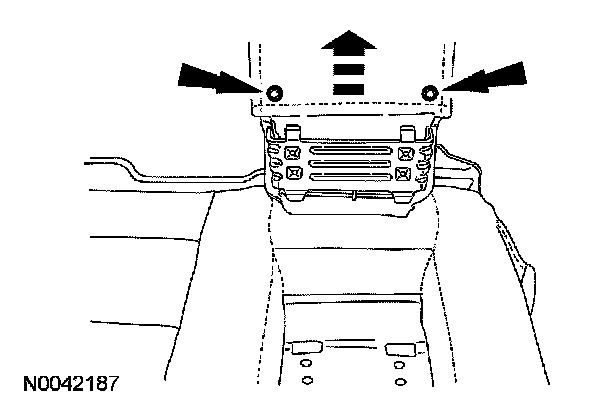

9. To disassemble the armrest assembly, remove the cup holder rubber insert, 2 armrest pivot bolts and armrest bracket.
- To install, tighten to 10 Nm (89 lb-in).

All seats
10. Release the 4 lower trim cover J-clips at both sides of the backrest and remove the staples.

11. CAUTION: Use care when separating the backrest trim cover from the hook-and-loop strip, or the hook-and-loop strip can be torn from the backrest foam pad.

Invert the backrest trim cover separating the hook-and-loop strips and remove all rows of hog rings working up the backrest.

12. Remove the backrest trim cover and foam pad from the backrest frame.
13. Remove the 4 backrest-to-pivot bolts.
- To install, tighten to 10 Nm (89 lb-in).

14. Remove the 4 striker-to-backrest frame nuts, backrest latch striker and support plate.
- To install, tighten to 6 Nm (53 lb-in).

15. To assemble, reverse the disassembly procedure.
