Roof Opening Panel Shield

ROOF OPENING PANEL SHIELD

Exploded View







Removal and Installation
1. Remove the roof opening panel glass.
2. Remove the trough assembly.
3. Slide the roof opening panel shield forward halfway.

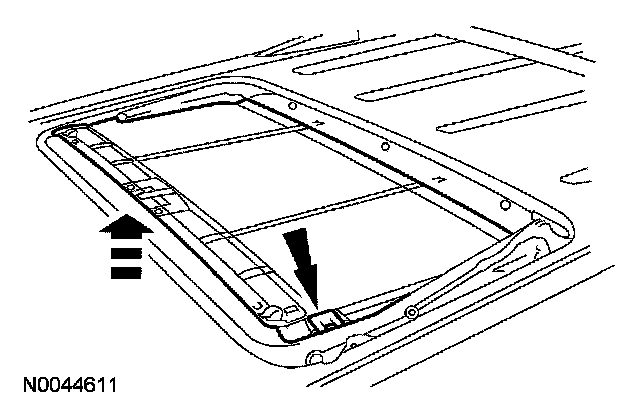

4. Disengage the roof opening panel shield guide feet.
- Lift the front portion of the roof opening panel shield upward at center until able to disengage one of the front guide feet.

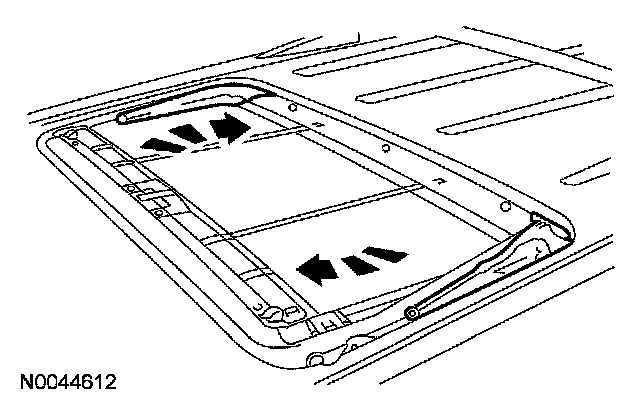

5. With one of the guide feet released, carefully rotate the roof opening panel in a clockwise manner to disengage the remaining guide feet.







6. To install, reverse the removal procedure.
- Initialize the roof opening panel motor. For additional information, refer to Roof Opening Panel Motor Initialization. Programming and Relearning
