Paint Codes

VEHICLE CERTIFICATION (VC) CODES

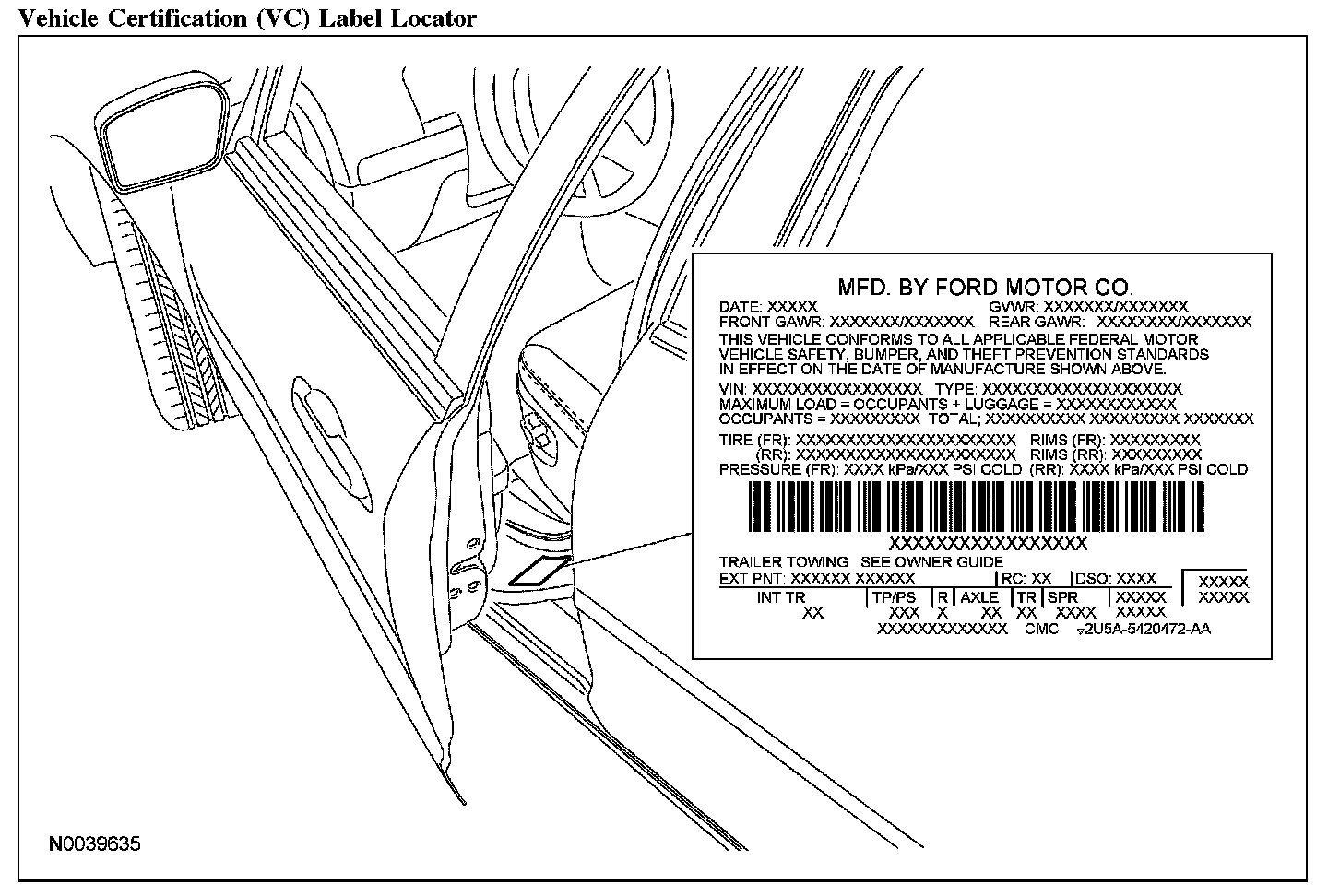

Vehicle Certification (VC) Label Locator:

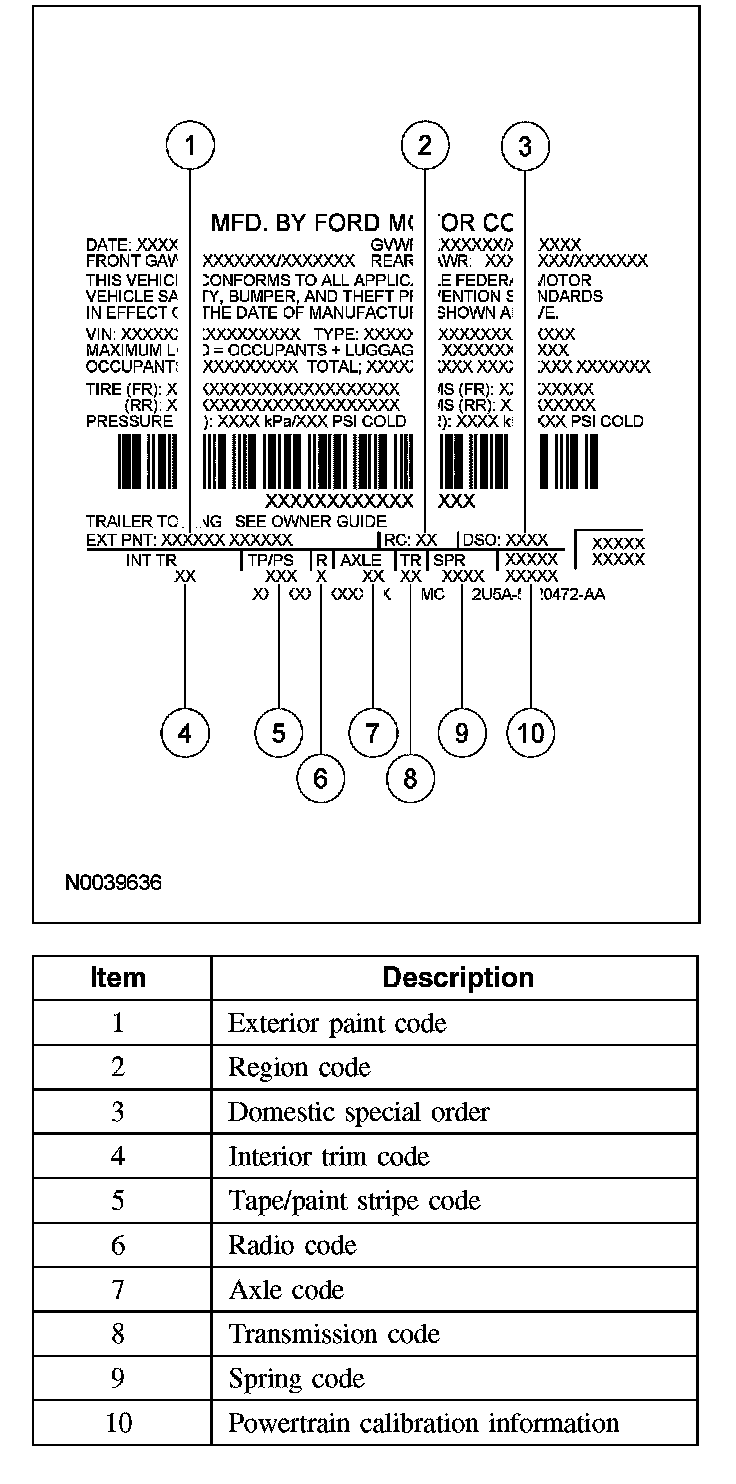

The upper portion of the VC label contains the manufacturer's name, the month and year of manufacture, the certification statement and the VIN. It also includes gross vehicle weight rating (GVWR). The VC label is located on the left-hand door jamb.

If a vehicle requires replacement of the VC label and is 4 years old or less, an authorized dealer must submit the VIN to their respective regional office. The regional office will submit a web form to the assembly plant for the replacement label. Once the label has been printed, a representative from the regional office will deliver the label to the dealer and witness installation on the vehicle. If a vehicle is more than 4 years old and requires a replacement label, the dealer must submit a request to the Department of Motor Vehicles.

Exterior Paint:

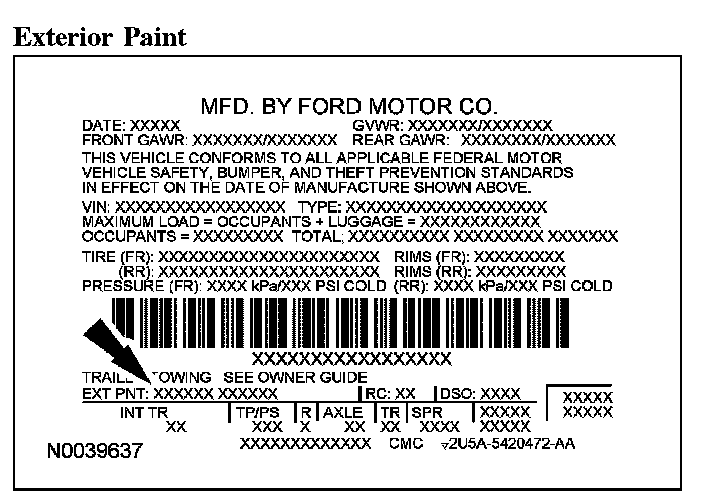

Exterior paint codes may be listed as a 2-part code. The first set of characters identify the primary body color. The second set of characters (if applicable) identify the vehicle accent or 2-tone body color. All colors are base coat/clear coat.

Exterior Color Codes
- D2 - Moss Green
- DI - Dark Ink Blue
- G2 - Redfire
- JP - Silver Birch Metallic
- ND - Dune Pearl
- NH - Light Sage Green
- UA - Ebony
- WS - White Suede
- ZY - Vapor Silver Pearl

Interior Trim:

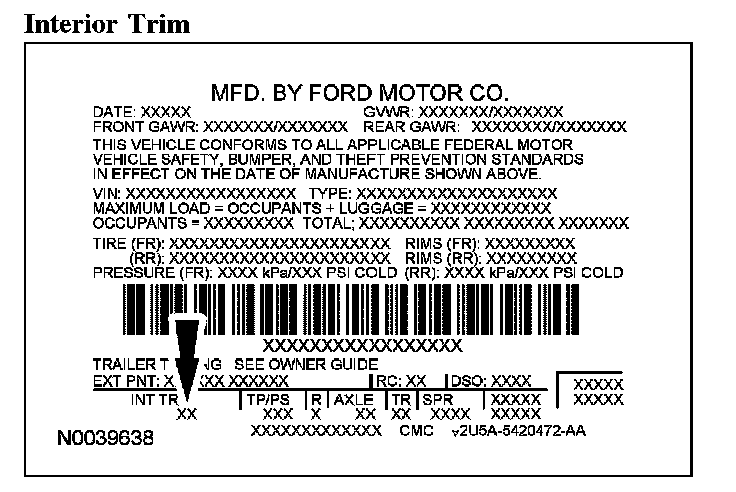

Interior trim codes are listed as a 2-part code. The first character identifies the interior trim type. The second character identifies the interior trim color.

Interior Trim Type
- D - B cloth - Ford, Mercury
- E - C cloth - Ford, Mercury
- F - Ellipse/Fino cloth - Ford, Mercury
- H - Chicago/Fino cloth - Ford, Mercury
- K - Leather/Red Stitch - Mercury
- L - Leather - Lincoln
- M - Perforated leather - Lincoln
- N - Arrow/Fino cloth - Ford, Mercury
- Y - Ford leather - Ford

Interior Trim Color
- C - Camel Tan - Ford, Mercury
- L - Medium Light Stone - Ford, Mercury
- S - Sand - Lincoln
- T - Light Stone - Lincoln
- W - Charcoal Black - Ford, Mercury, Lincoln

Tape/Paint Stripe:

Tape and paint stripe codes do not apply.
