Test B: A Single Mirror Is Inoperative - Non-Memory Mirrors

PINPOINT TEST B: A SINGLE MIRROR IS INOPERATIVE - NON-MEMORY MIRRORS

Normal Operation
Under normal operation, the exterior mirror control switch uses circuit CPM23 (GY) as the common circuit for both exterior mirror down/up and left/right movement.

This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- Exterior mirror control switch
- Exterior mirror motor
- Exterior mirror

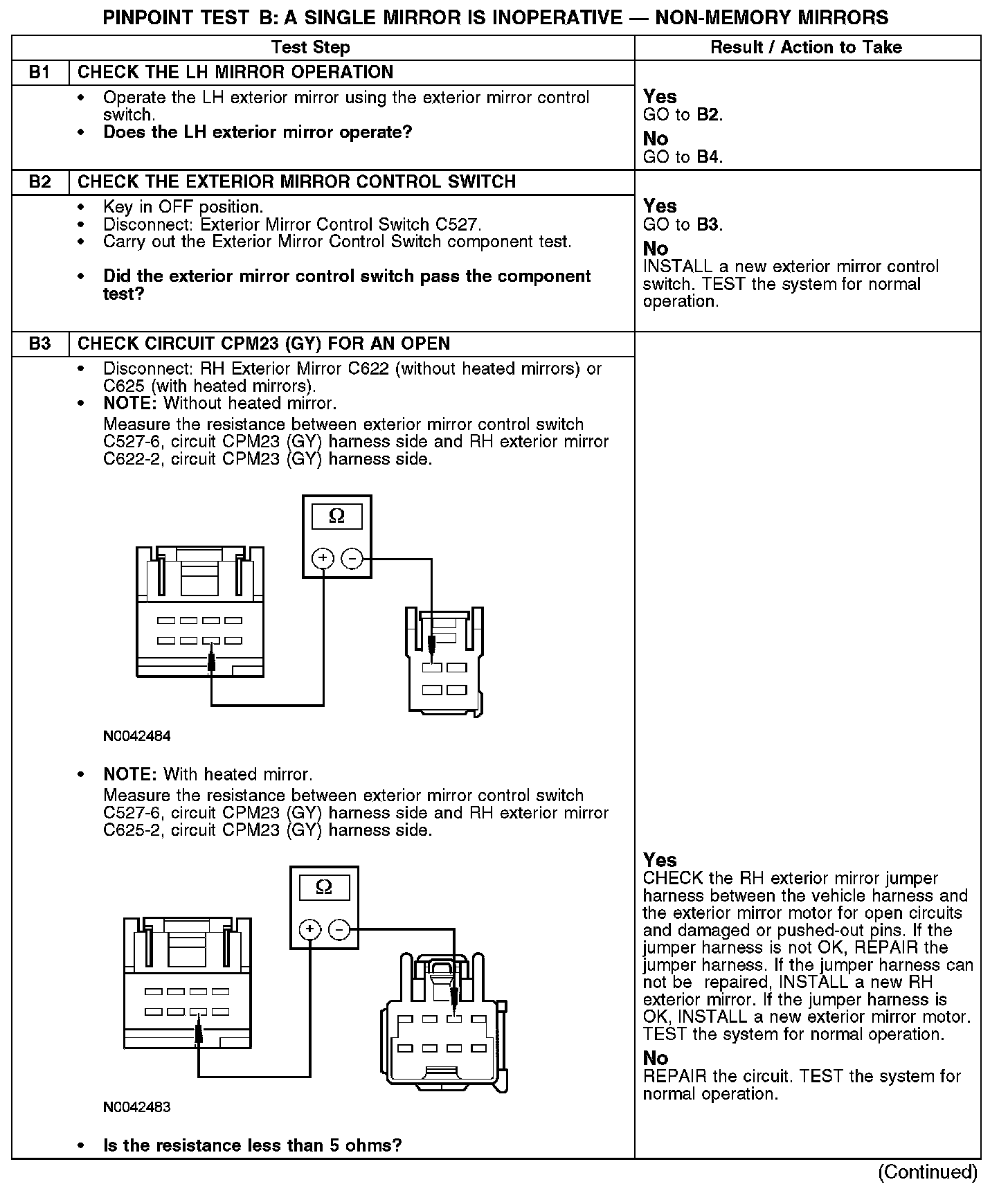

B1-B3:

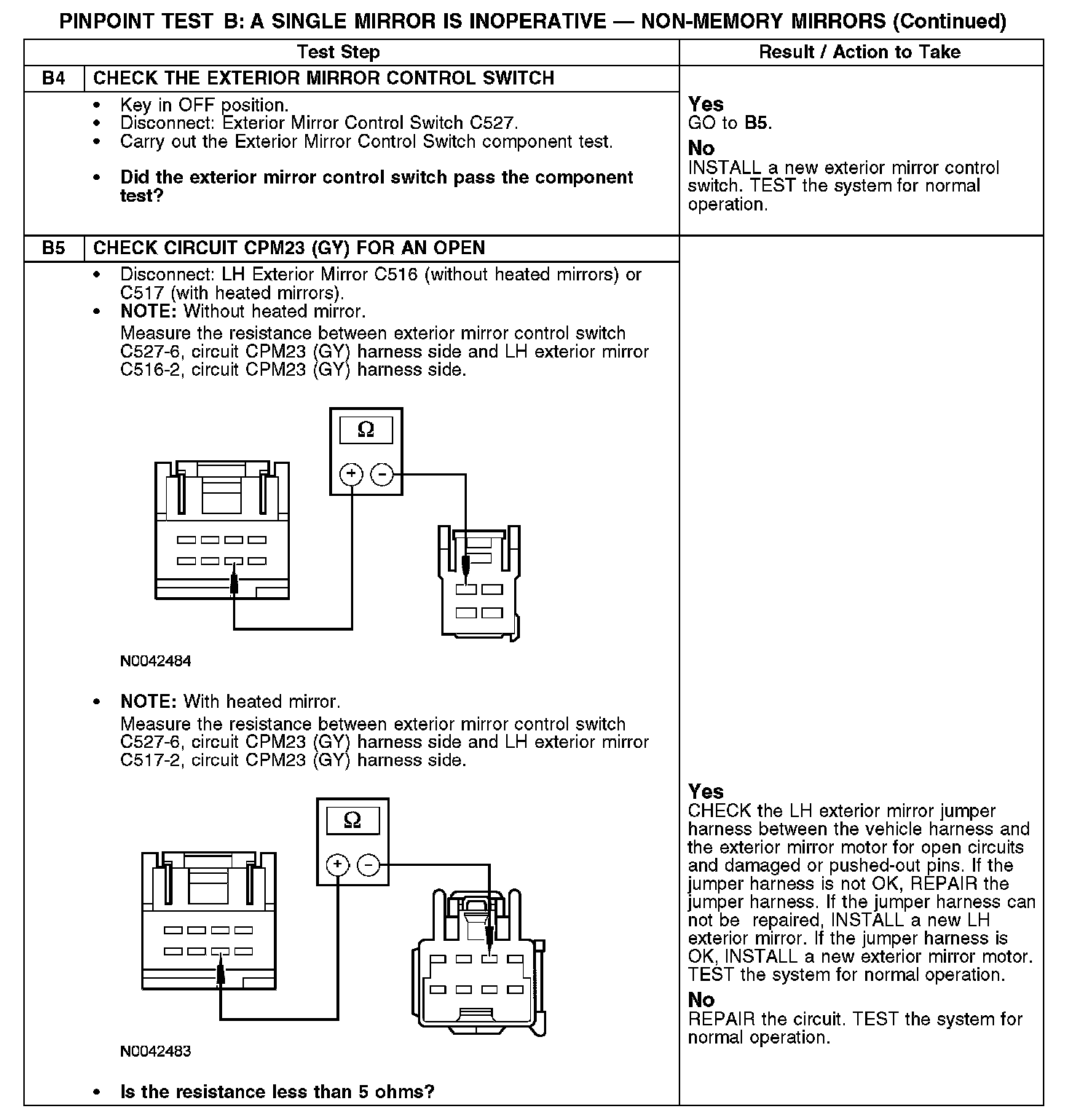

B4-B5:
