Test A: The Mirrors Are Inoperative - Non-Memory Mirrors
PINPOINT TEST A: THE MIRRORS ARE INOPERATIVE - NON-MEMORY MIRRORSNormal Operation
Under normal operation, the exterior mirror control switch receives power through circuit SBP15 (WH/RD) and ground through circuit GD126 (BK/WH). The exterior mirror control switch uses circuit CPM23 (GY) as the common circuit for both exterior mirror up/down and right/left movement.
This pinpoint test is intended to diagnose the following:
- Fuse
- Wiring, terminals or connectors
- Exterior mirror control switch

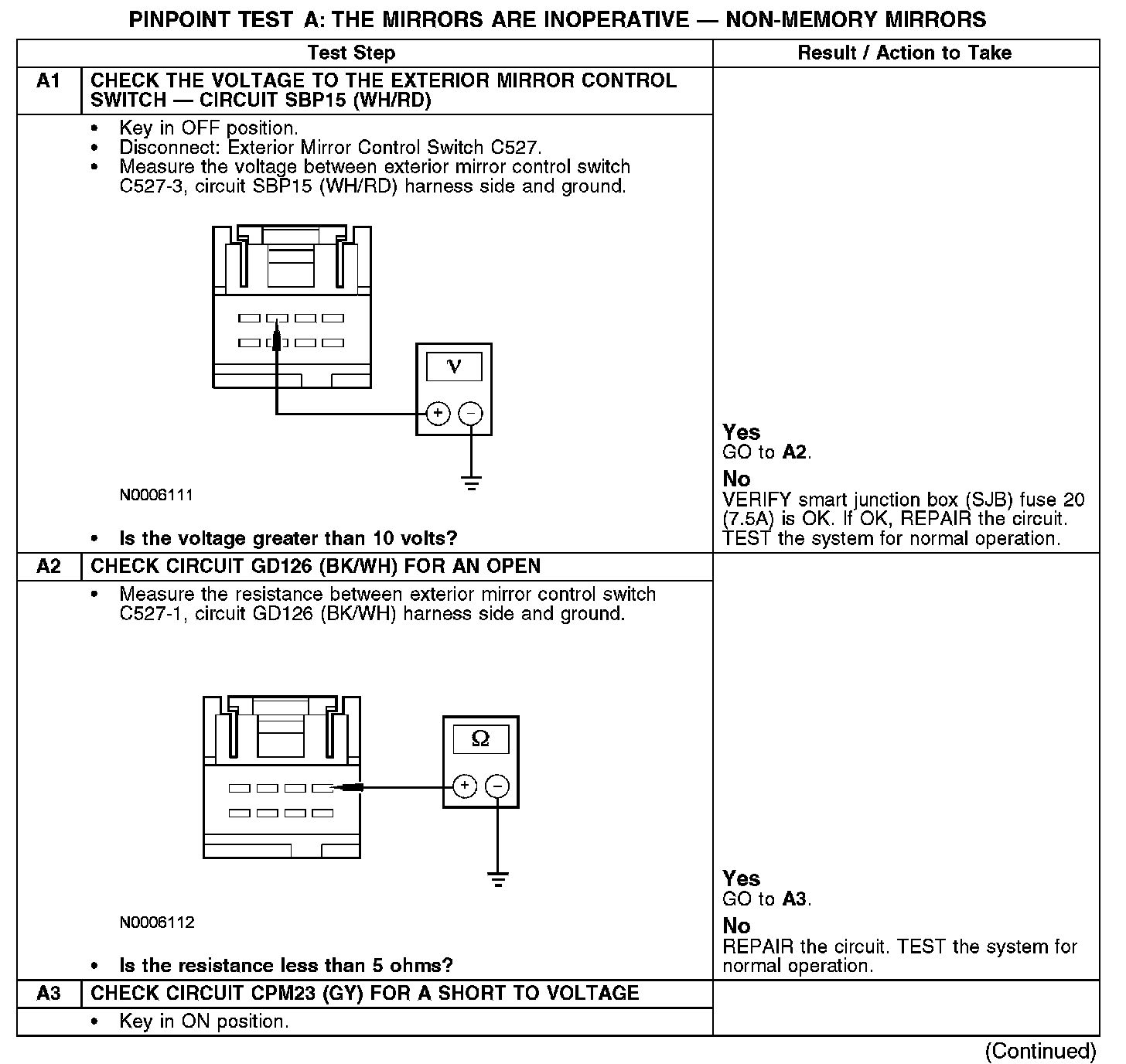

A1-A3:

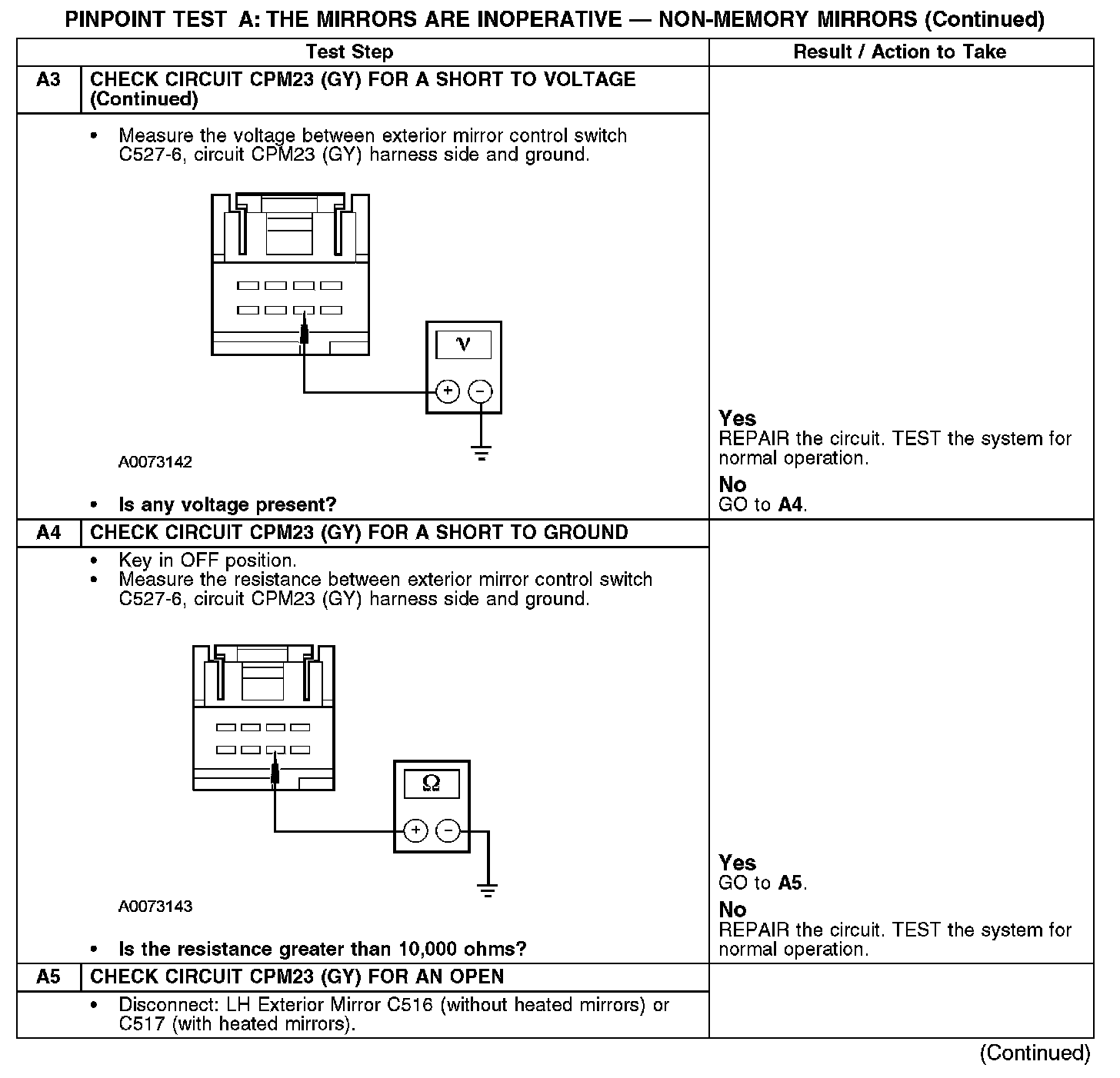

A3-A5:
A5 Continued:
