Home >> Mercury >> 2008 >> Milan AWD V6-3.0L >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Power Door Lock Actuator >> Diagrams >> Door Lock Actuator, Right Front

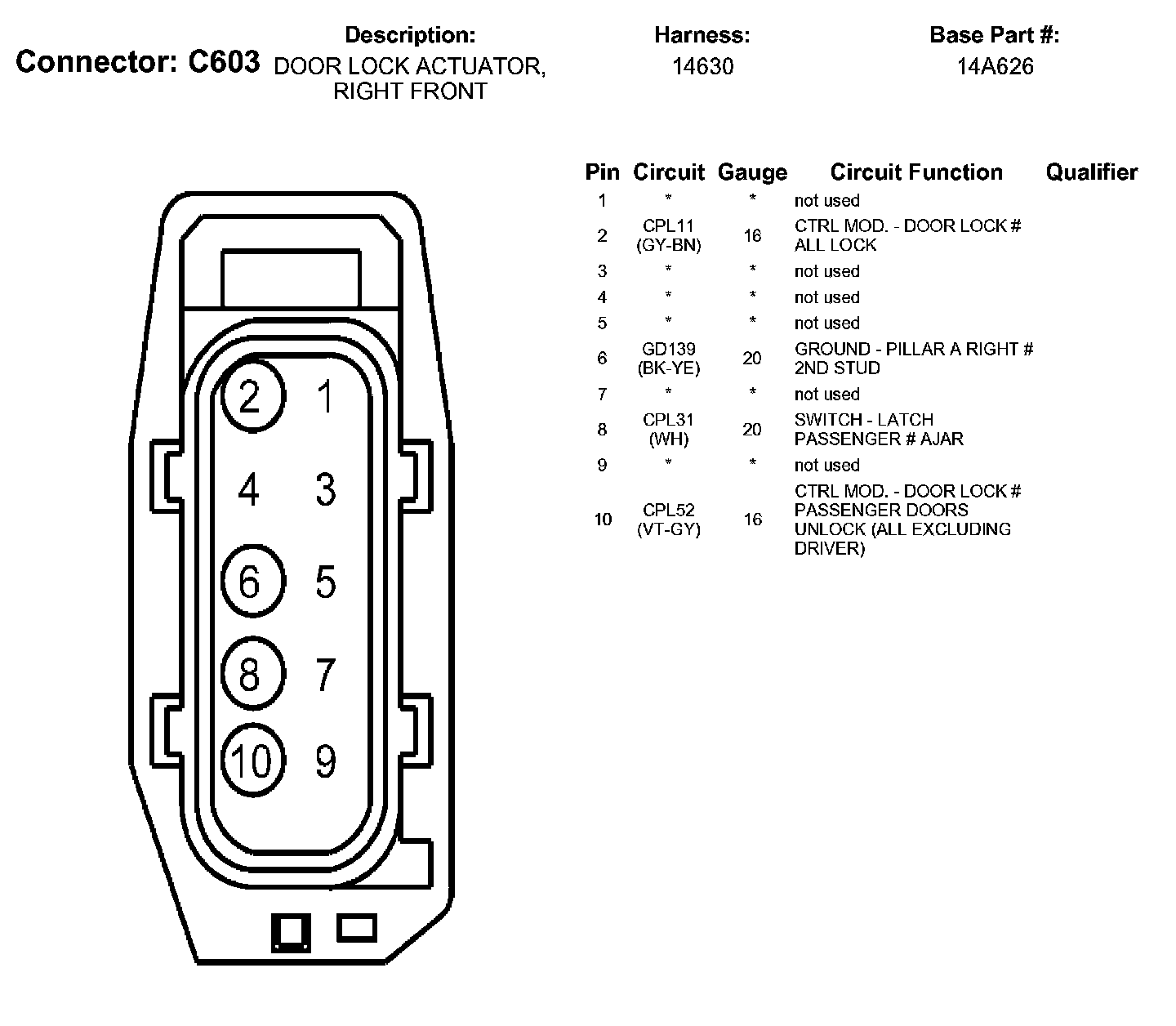

Door Lock Actuator, Right Front

C603:
