B-Pillar Trim Panel

B-PILLAR TRIM PANEL

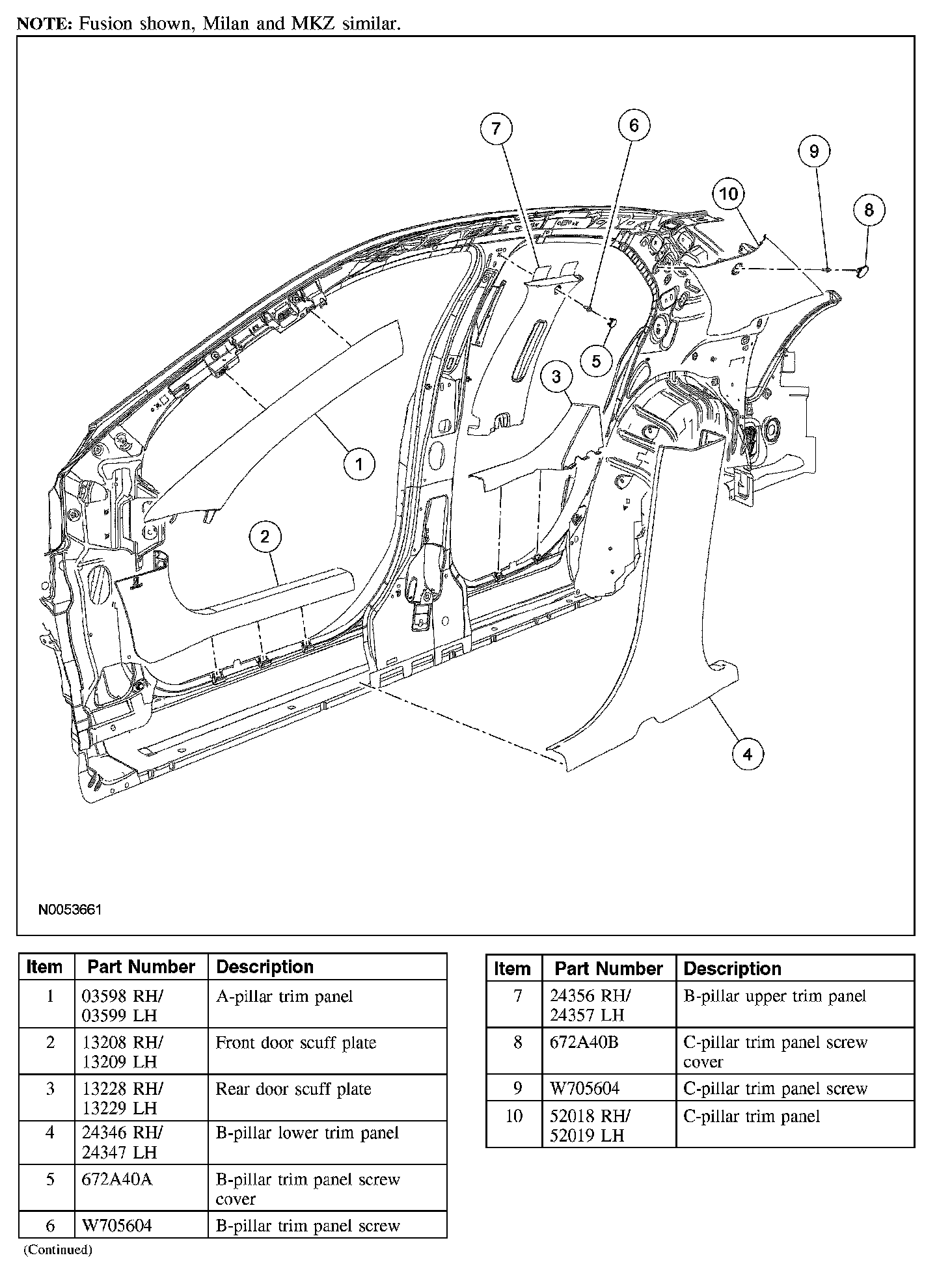

Exploded View







Removal and Installation
1. Position the front seats in the full forward position.

2. NOTE: Inspect the safety belt D-ring cover for damage. If the safety belt D-ring cover does not remain in place, install a new cover.

Remove the safety belt D-ring cover and remove the safety belt bolt.
- To install, tighten to 54 Nm (40 lb-ft).

3. Position the front and rear door weatherstrips aside.
4. Remove the front door scuff plate trim panel.
5. Remove the rear door scuff plate trim panel.
6. Remove the lower B-pillar trim panel.
- Slide the lower B-pillar trim panel down to disengage it from the upper B-pillar trim panel.

7. Remove the upper B-pillar trim panel.

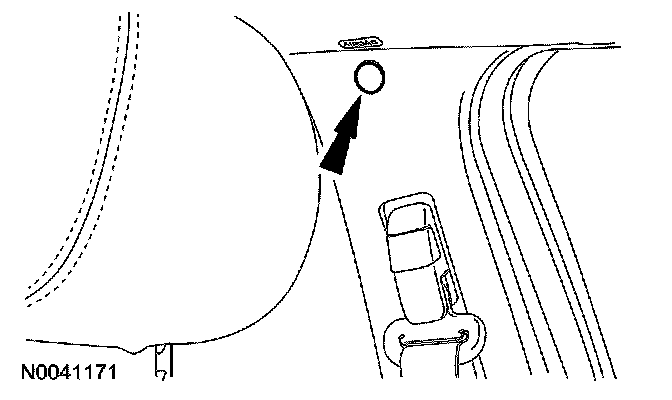

- Remove the screw cover.
- Remove the screw.







8. To install, reverse the removal procedure.
