Front Door Limiter: Service and Repair

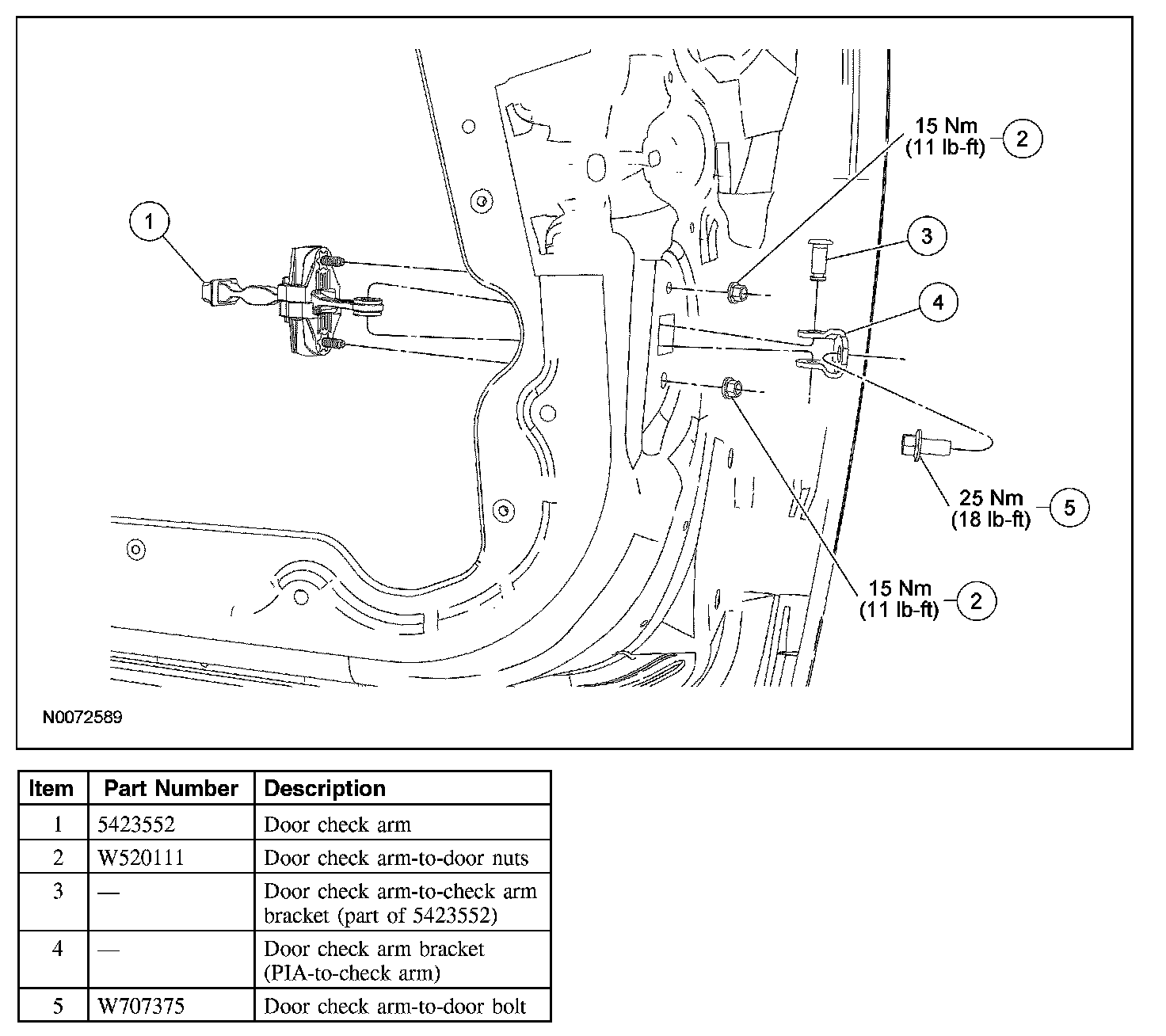

DOOR CHECK ARM







Removal and Installation
1. Remove the door trim panel.
2. Remove the door check arm-to-body bolt.
- To install, tighten to 25 Nm (18 lb-ft).

3. Remove the door check arm-to-door nuts.
- To install, tighten to 15 Nm (11 lb-ft).

4. To install, reverse the removal procedure.
