Rear Bumper Reinforcement: Service and Repair

BUMPER - REAR

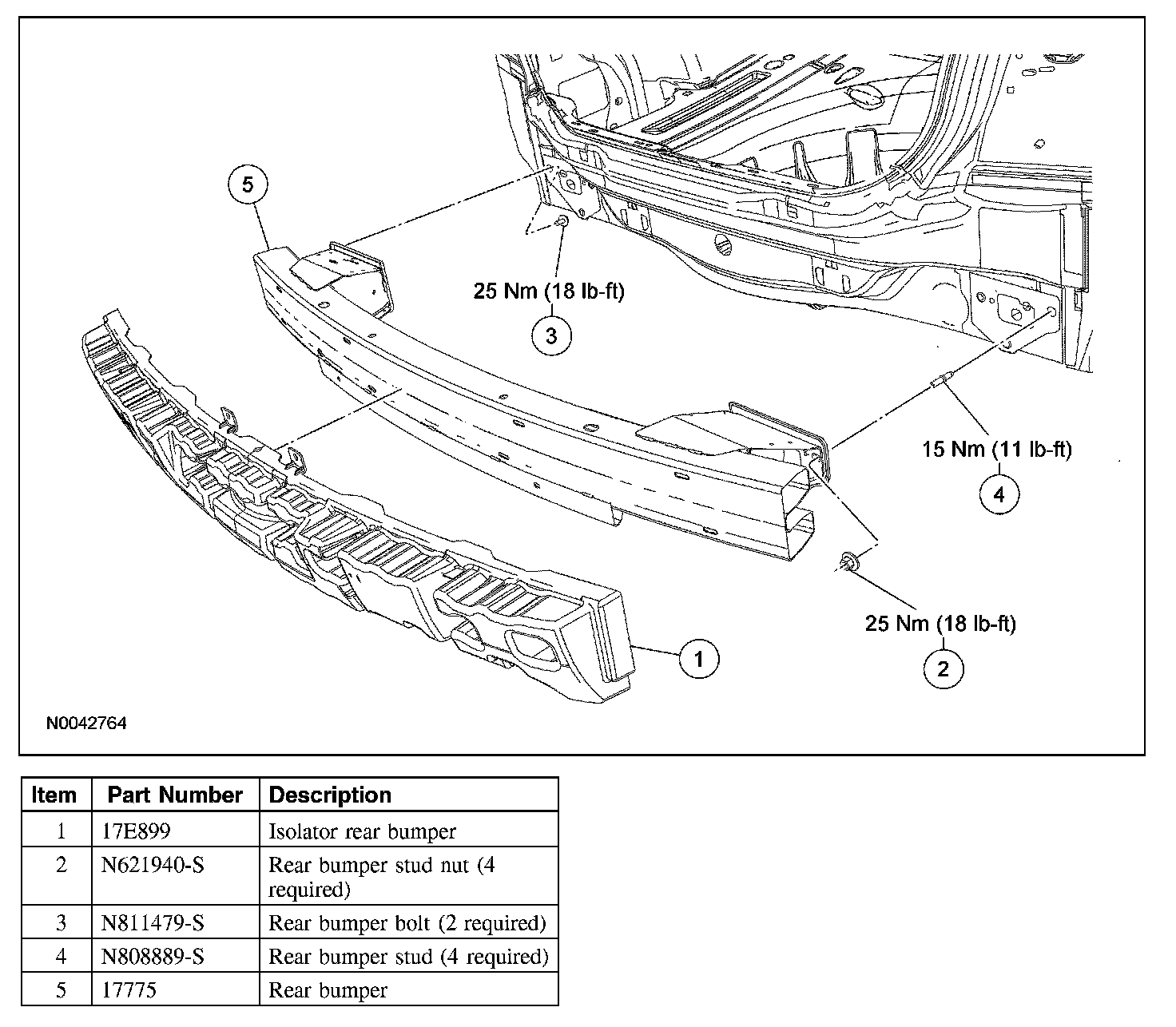

Exploded View












Removal and Installation
1. Remove the rear bumper cover.
2. Remove the rear bumper isolator from the rear bumper.
- Pull the isolator rearward to remove it from the retaining pins.

3. Remove the 4 rear bumper nuts.
- To install, tighten to 25 Nm (18 lb-ft).

4. Remove the 2 rear bumper bolts.
- To install, tighten to 25 Nm (18 lb-ft).

5. Remove the rear bumper.
6. To install, reverse the removal procedure.
