Home >> Mercury >> 2008 >> Milan AWD V6-3.0L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Speaker >> Service and Repair >> Parcel Shelf Speaker

Parcel Shelf Speaker

PARCEL SHELF SPEAKER

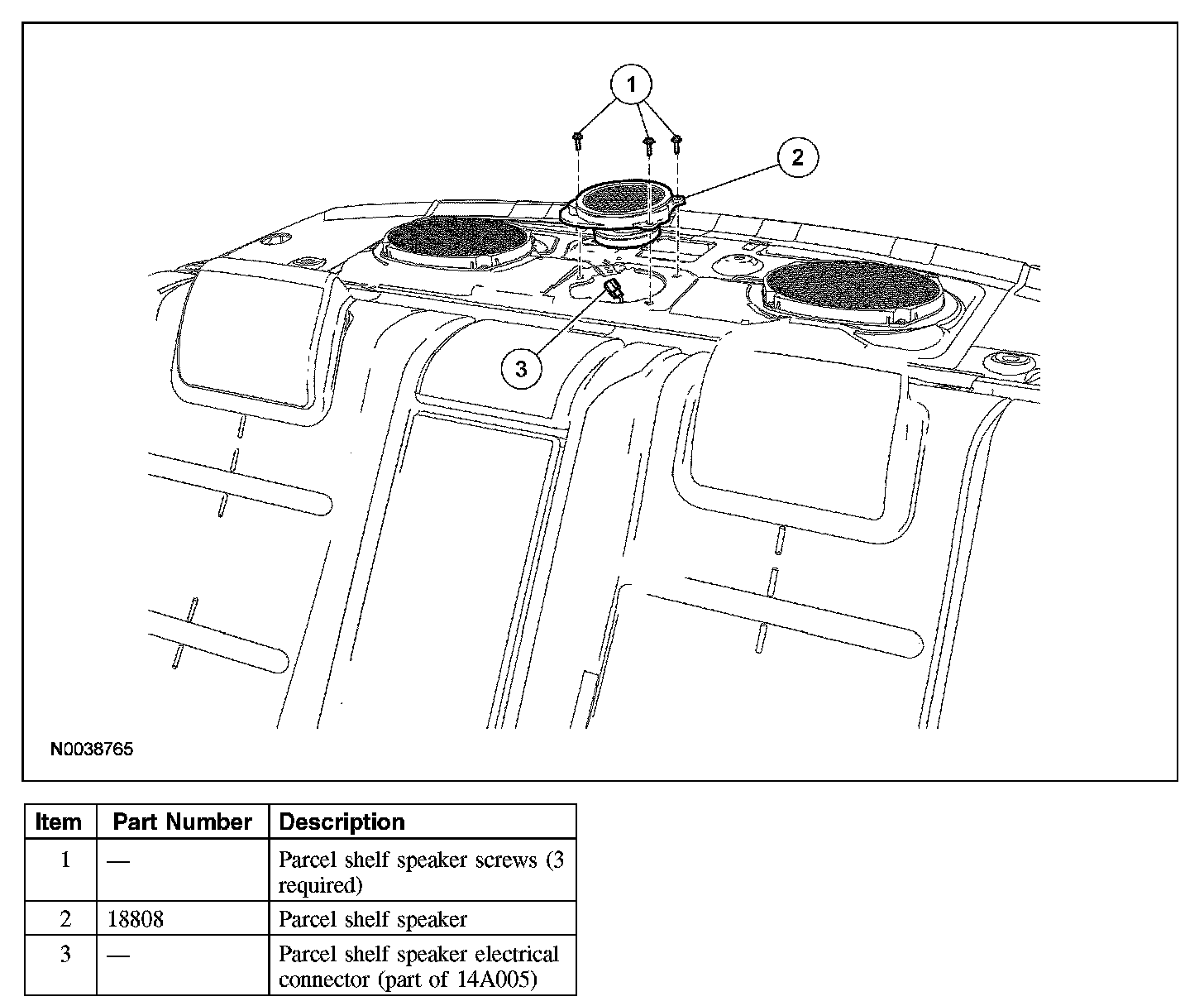

Removal and Installation
1. Remove the parcel shelf.
2. Remove the 3 screws and the parcel shelf speaker.
- Disconnect the electrical connector.

3. To install, reverse the removal procedure.
