Instrument Panel Speaker

INSTRUMENT PANEL SPEAKER







Removal and Installation

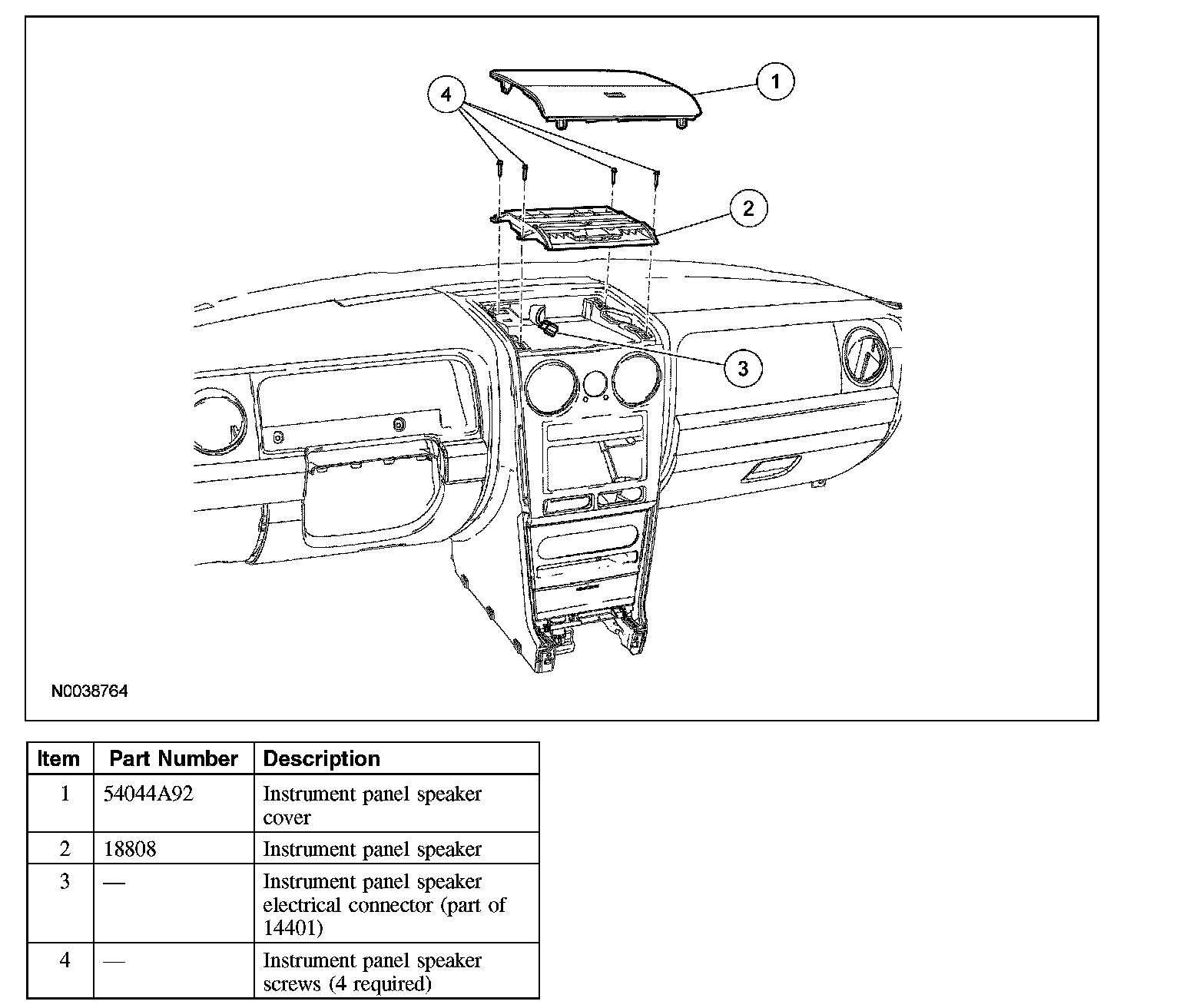

1. Remove the instrument panel speaker cover.
2. Remove the 4 screws and the instrument panel speaker.
- Disconnect the electrical connector.

3. To install, reverse the removal procedure.
