Home >> Mercury >> 2008 >> Milan AWD V6-3.0L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Keyless Entry >> Keyless Entry Key-Pad >> Diagrams

Keyless Entry Key-Pad: Diagrams

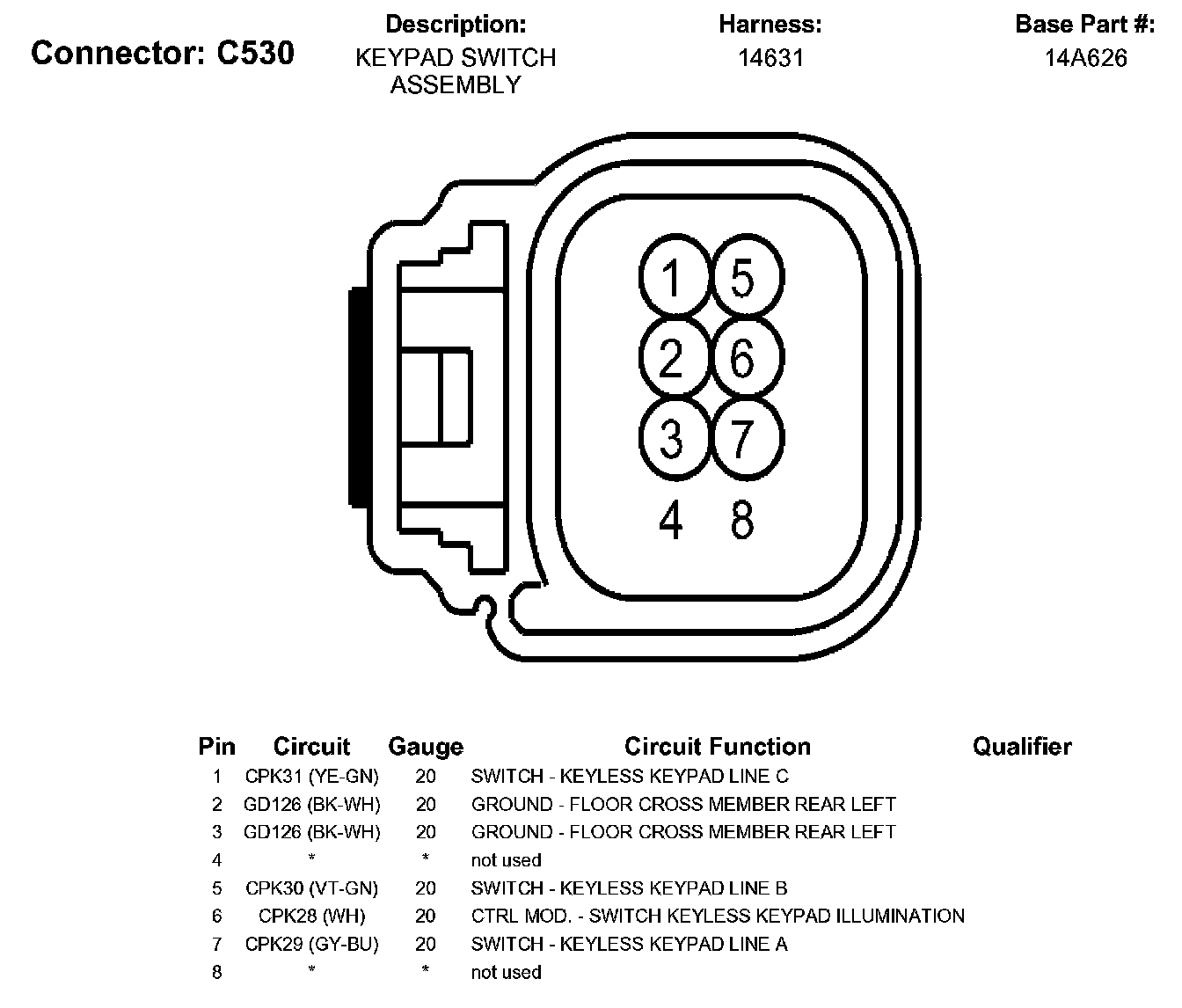

C530:
