Steering Wheel: Service and Repair

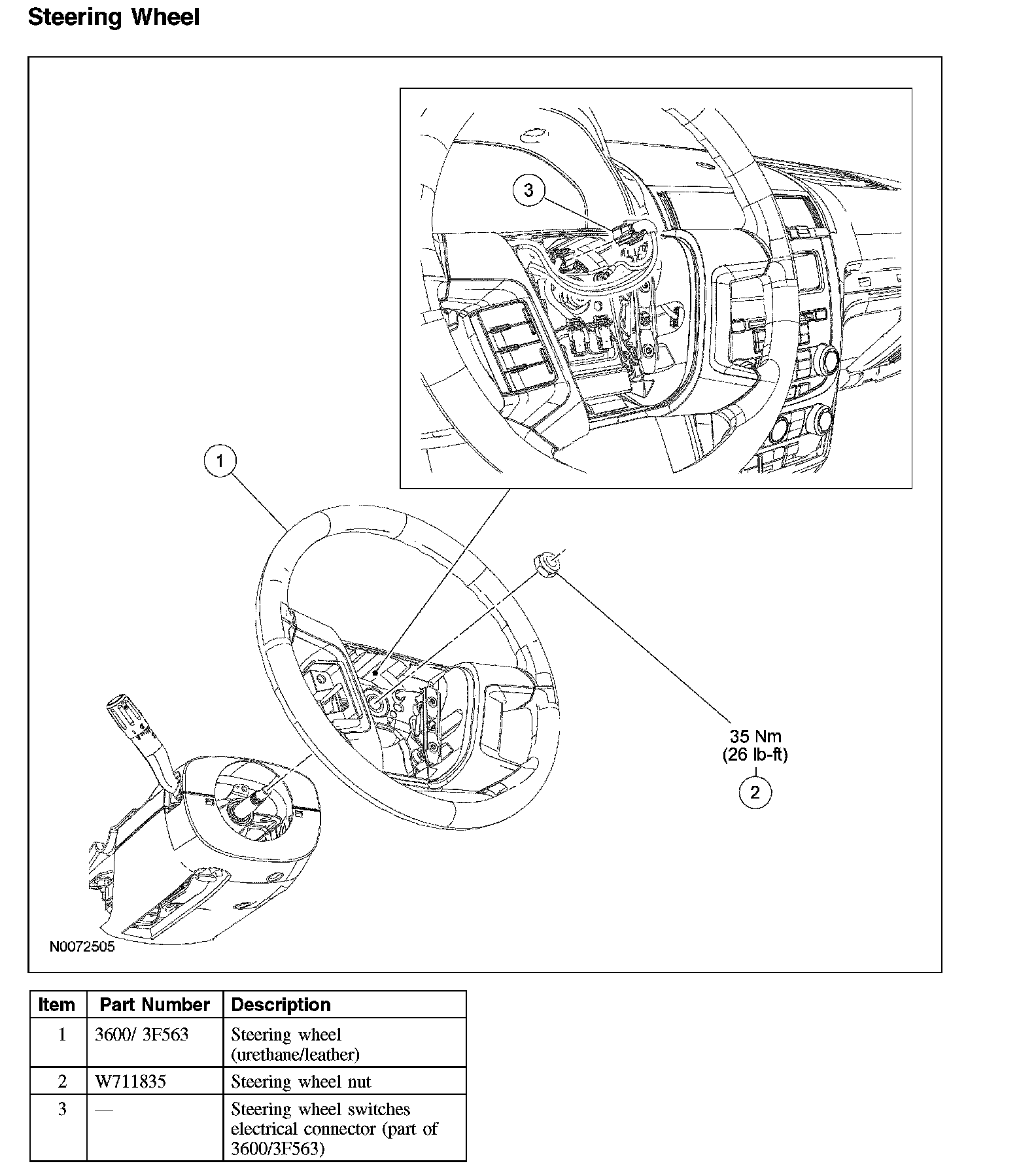

Steering Wheel

Steering Wheel:

Removal and Installation
1. Position the steering wheel in the straight-ahead position and turn the ignition switch to the OFF position.
^ Remove the key.

2. Remove the driver air bag module. For additional information, refer to Air Bag Systems.

3. NOTE: Mark the steering wheel and column shaft for reference during installation.

Remove the steering wheel nut.
^ To install, tighten to 35 Nm (26 lb-ft).

4. Disconnect the steering wheel switches electrical connector.

5. CAUTION: Do not remove the steering wheel by hitting the shaft with a hammer. Damage to the column may occur.

Using a suitable puller, remove the steering wheel.
6. To install, reverse the removal procedure.
^ Align the steering wheel using the reference mark.
